Toyota C-HR (TUP)528 — BATTERY & BATTERY CABLE

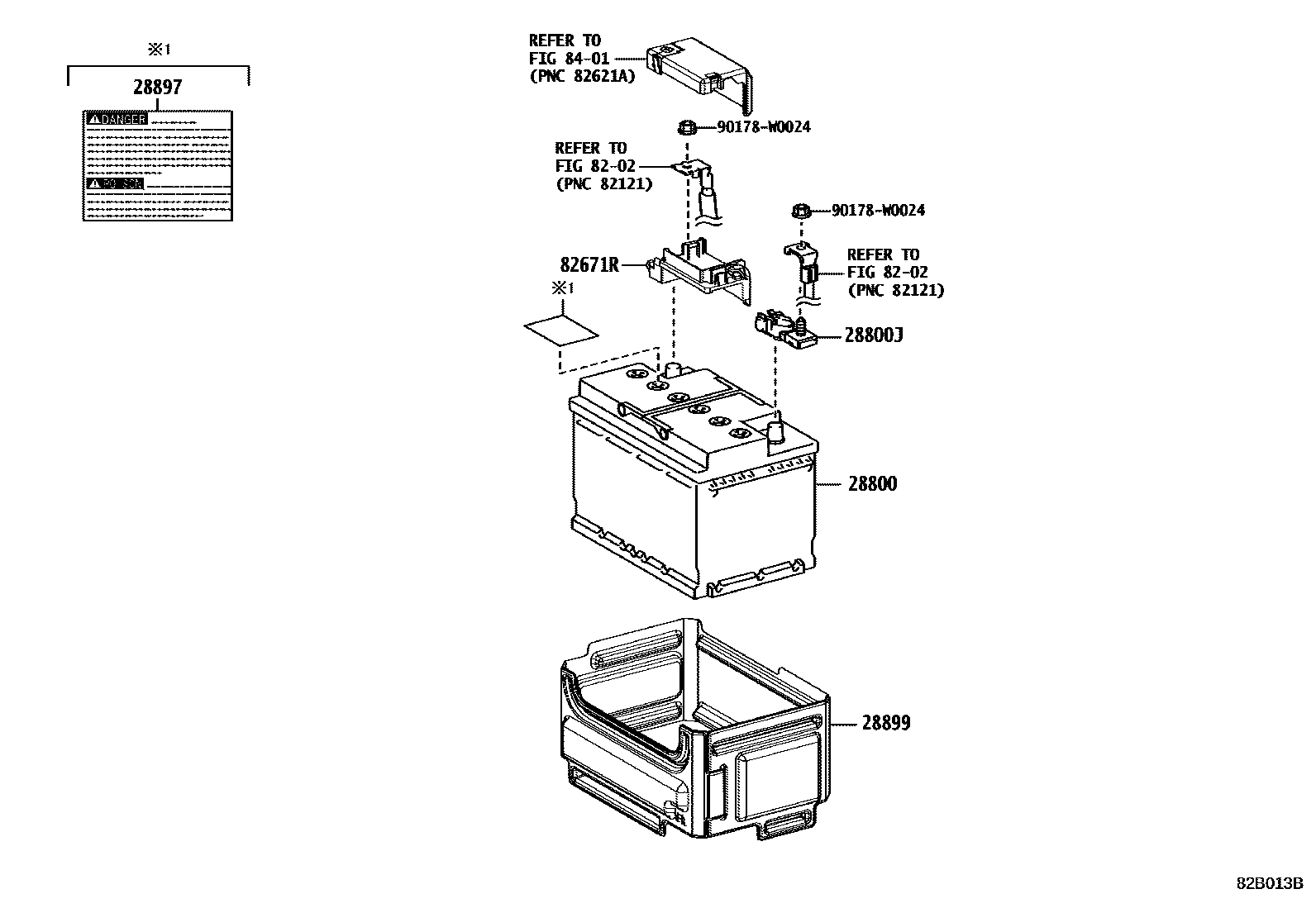

Parts diagram
28800BATTERY
28800-F2050
28800-F2051
90982-06070
28800-0Y170
28800-0Y171
28800-0Y172
28800-0T260
28800-0T261
28800JTERMINAL, BATTERY NEGATIVE
28897PLATE, BATTERY CAUTION
28897-0Y010
28899INSULATOR, BATTERY
28899-0Y030
8202WIRING & CLAMP
→ Go to FIG 82-02
82671RSTOPPER, BATTERY TERMINAL
8401SWITCH & RELAY & COMPUTER
→ Go to FIG 84-01
90178W0024
90178-W0024

8 parts on this diagram · 1 diagram in section

BATTERY & BATTERY CABLE for Toyota C-HR (TUP)528

This section contains 8 genuine Toyota parts for the BATTERY & BATTERY CABLE system of the Toyota C-HR (TUP)528. Key components include: BATTERY, TERMINAL, BATTERY NEGATIVE, PLATE, BATTERY CAUTION, INSULATOR, BATTERY, WIRING & CLAMP.
