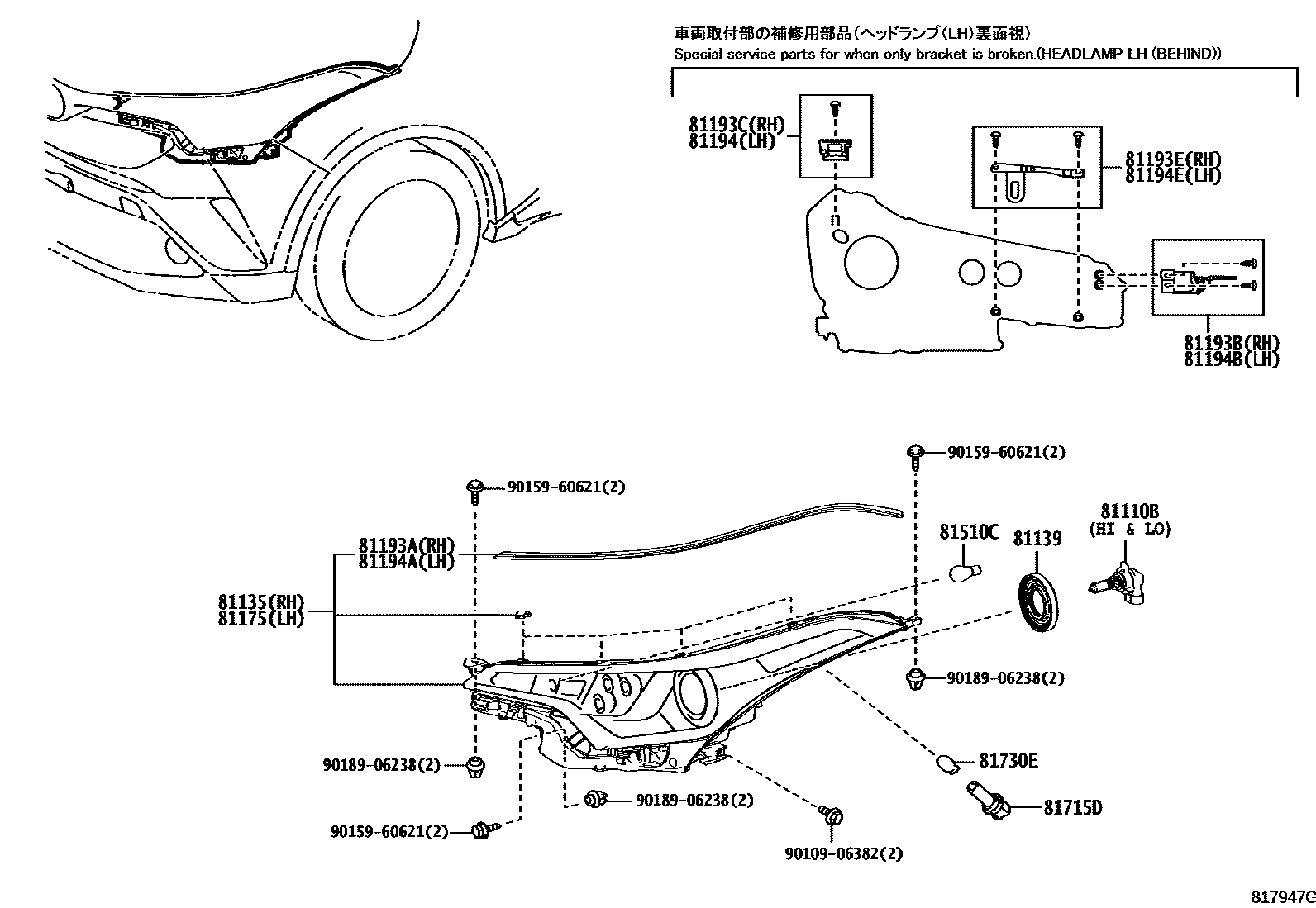

HEADLAMP

0001 1HALOGEN HEADLAMP 0002 1LED(MULTI REFLECTOR TYPE) 0003 1LED(PROJECTER TYPE)

81110BBULB(FOR HEADLAMP, NO.1)

main90981-13091×2iZGX10201702-201909

12V 55W,HALOGEN

81135UNIT ASSY, HEADLAMP, RH

main81130-F4040iZGX10201702-201909

main81130-F4200iZGX10..D,G201909-202210

main81130-F4270iZGX10..E201909-202210

81139COVER, HEADLAMP SOCKET

main81139-F4010×2iZGX10201702-201909

81175UNIT ASSY, HEADLAMP, LH

main81170-F4040iZGX10201702-201909

main81170-F4200iZGX10..D,G201909-202210

main81170-F4270iZGX10..E201909-202210

81193APROTECTOR, HEADLAMP, RH

main81193-F4040iZGX10201702-201909

main81193-F4140iZGX10201909-202210

81193BRETAINER, HEADLAMP PROTECTOR, UPPER RH NO.2

main81193-F4020iZGX10201702-201909

81193CRETAINER, RH HEADLAMP PROTECTOR, UPPER RH

main81193-F4010iZGX10201702-201909

81193ERETAINER, HEADLAMP PROTECTOR, UPPER RH NO.3

main81193-F4030iZGX10201702-201909

81194RETAINER, HEADLAMP PROTECTOR, UPPER LH

main81194-F4010iZGX10201702-201909

81194APROTECTOR, HEADLAMP, LH

main81194-F4040iZGX10201702-201909

main81194-F4140iZGX10201909-202210

81194BRETAINER, HEADLAMP PROTECTOR, UPPER LH NO.2

main81194-F4020iZGX10201702-201909

81194ERETAINER, HEADLAMP PROTECTOR, UPPER LH NO.3

main81194-F4030iZGX10201702-201909

81510CBULB (FOR FRONT TURN SIGNAL LAMP)

main90981-15028×2iZGX10201702-201909

12V 21W,AMBER

81715DSOCKET PLUG, FRONT MARKER LAMP

main90075-60089×2iZGX10201702-201909

81730EBULB (FOR SIDE TURN SIGNAL)

main99132-12050×2iZGX10201702-201909

9010906382

main90109-06382

9015960621

main90159-60621

9018906238

main90189-06238

18 parts on this diagram · 3 diagrams in section
