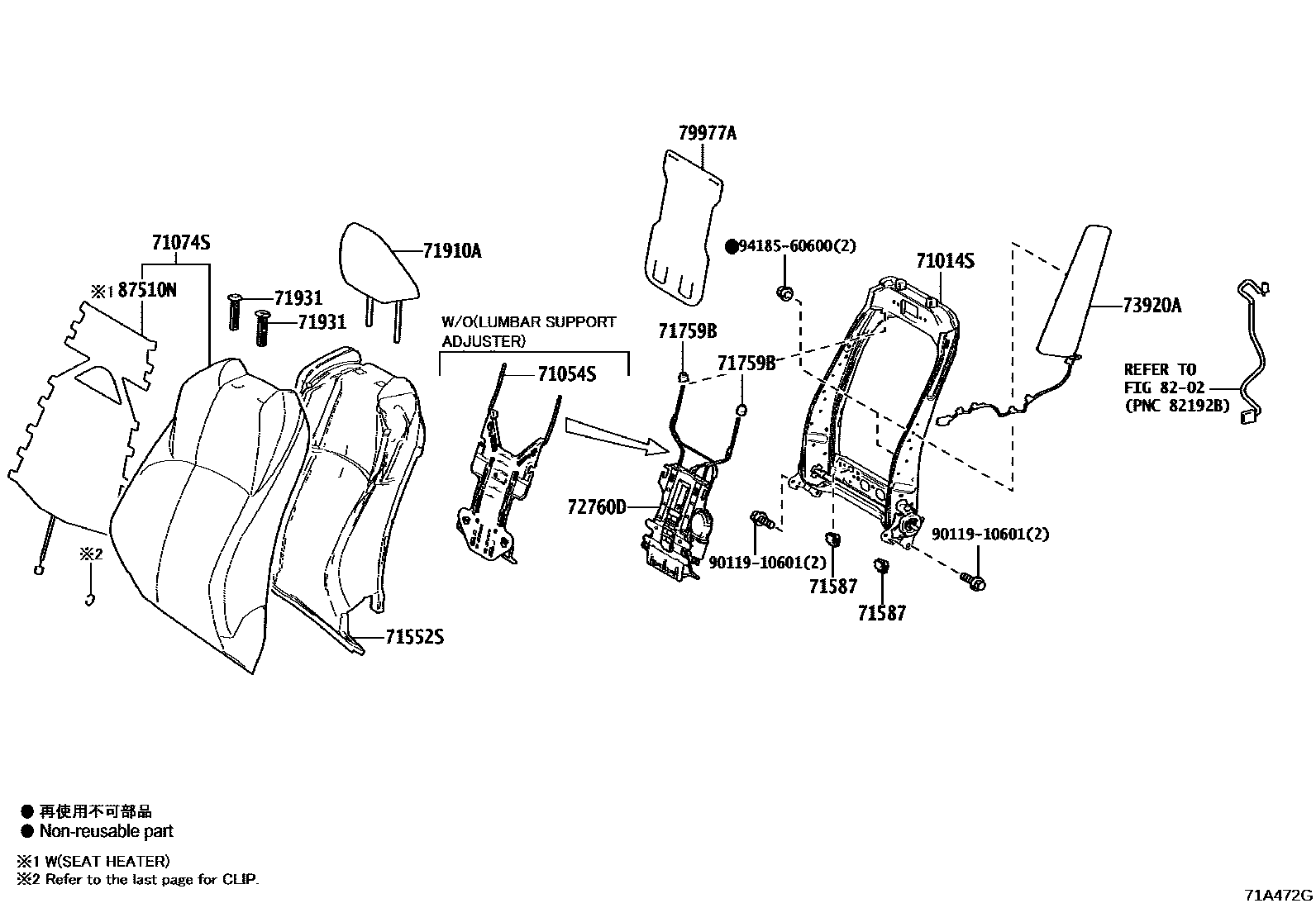

FRONT SEAT & SEAT TRACK

0001 1DRIVER SEAT(SEAT BACK) 0002 1DRIVER SEAT(SEAT CUSHION) 0003 1PASSENGER SEAT(SEAT BACK) 0004 1PASSENGER SEAT(SEAT CUSHION) 0005 1CLIP

71014SFRAME SUB-ASSY, FRONT SEATBACK, LH

main71014-F4020iZGX10..D,G201702-202210

main71014-F4070iZGX10..E201909-202210

71054SSPRING SUB-ASSY, FRONT SEATBACK, LH

main71053-F4010iZGX10..D,G201702-202210

71074SCOVER, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71074-F4100-B2iZGX10201702-201805

DARK GREY/BLACK,TRIM2#

main71074-F4101-B3iZGX10201805-201909

DARK GREY/BLACK,TRIM2#

main71074-F4420-C0iZGX10..D201909-202203

BLACK,TRIM2#

main71074-F4421-C0iZGX10..D202203-202210

BLACK,TRIM2#

main71074-F4450-C0iZGX10..G201909-202203

BLACK,TRIM8#

main71074-F4451-C0iZGX10..G202203-202210

BLACK,TRIM8#

main71074-F4510-C2iZGX10..E201909-202203

BLACK,TRIM2#

main71074-F4511-C2iZGX10..E202203-202210

BLACK,TRIM2#

71552SPAD, FRONT SEATBACK, LH(FOR SEPARATE TYPE)

main71552-F4030iZGX10201702-202210

71587PROTECTOR, FRONT SEATBACK EDGE

main71587-F4010iZGX10201702-202210

71759BHOOK, FRONT SEATBACK

main71759-F4010iZGX10201702-202210

71910AHEADREST ASSY, FRONT SEAT

main71910-F4010-B2iZGX10201805-201909

GREY,TRIM22

main71910-F4010-C2iZGX10201702-201805

BLACK,TRIM2#

main71910-F4010-C2iZGX10201805-201909

BLACK,TRIM20,21

main71910-F4120-B1iZGX10..D201909-202210

DARK GREY,TRIM2#

main71910-F4130-C0iZGX10..G201909-202210

BLACK,TRIM8#

main71910-F4150-C0iZGX10..E201909-202210

BLACK,TRIM2#,4#,8#

71931SUPPORT, FRONT SEAT HEADREST

main71930-F4010-C0iZGX10201702-201805

W(LOCK),EU BLACK,TRIM2#

main71930-F4010-C1iZGX10..D201909-202210

W(LOCK),BLACK,TRIM2#,8#

main71930-F4010-C1iZGX10201805-202210

W(LOCK),BLACK,TRIM2#

main71930-F4010-C1iZGX10..G201909-202210

W(LOCK),BLACK,TRIM2#,4#,8#

main71931-F4010-C0iZGX10201702-201805

W/O(LOCK),EU BLACK,TRIM2#

main71931-F4010-C1iZGX10..G201909-202210

W/O(LOCK),BLACK,TRIM2#,8#

main71931-F4010-C1iZGX10..G201909-202210

W/O(LOCK),BLACK,TRIM2#,4#,8#

main71931-F4010-C1iZGX10..G201805-202210

W/O(LOCK),BLACK,TRIM2#

72760DADJUSTER ASSY, LUMBAR SUPPORT, LH

main72760-F4010iZGX10..E201909-202210

73920AAIRBAG ASSY, FRONT SEAT, LH

main73920-F4020iZGX10201702-202210

main73920-F4060iZGX10..E201909-202210

79977AFELT, SEATBACK

main79977-33030iZGX10..E201909-202210

8202WIRING & CLAMP

→ Go to FIG 82-02

87510NHEATER ASSY, FRONT SEATBACK, LH

main87530-F4030iZGX10..E201909-202210

9011910601

main90119-10601

9418560600

main94185-60600

15 parts on this diagram · 5 diagrams in section
