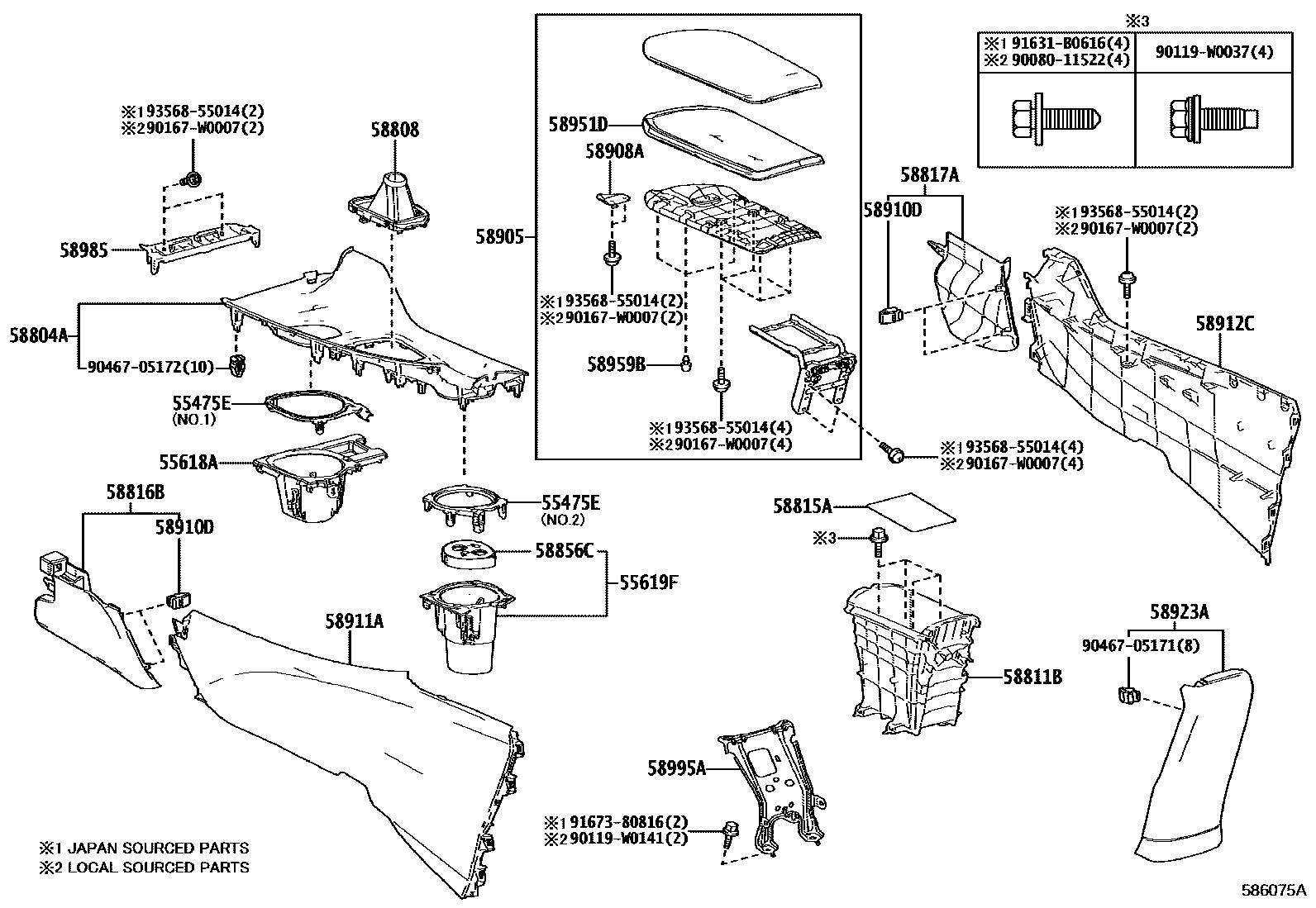

CONSOLE BOX & BRACKET

55475EGARNISH, INSTRUMENT CLUSTER FINISH PANEL, CENTER

main55474-10100iZGX10..E201909-202210

NO.1:REFER ILLUST.

main55474-10120iZGX10201702-201904

NO.1:REFER ILLUST.

main55475-10130iZGX10..E201909-202210

NO.2:REFER ILLUST.

main55475-10150iZGX10201702-201904

NO.2:REFER ILLUST.

55618AHOLDER, CONSOLE BOX CUP

main55618-F4010iZGX10201702-201909

main55618-F4070iZGX10..D,G202001-202210

55619FHOLDER, CONSOLE BOX CUP, NO.2

main55619-F4010iZGX10201702-201804

main55619-F4090iZGX10..D,G201909-202001

main55619-F4110iZGX10..D,G202001-202210

58804APANEL SUB-ASSY, CONSOLE, UPPER

main58804-F4010iZGX10201702-201705

main58804-F4011iZGX10..D201909-202210

main58804-F4150iZGX10..E,G201909-202210

main58804-F4031iZGX10201805-201909

LIMITED PACKAGE; XLE PACKAGE; XLE PREMIUM PACKAGE

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-F4030-C1iZGX10201702-201806

BLACK,TRIM2#

main58808-F4090-C0iZGX10..D,E; ZGX10..G201909-202012

BLACK,TRIM2#; BLACK,TRIM8#

main58808-F4090-C1iZGX10..D,E; ZGX10..G202012-202210

BLACK/BLACK,TRIM2#; BLACK/BLACK,TRIM8#

58811BBOX, CONSOLE

main58812-F4010iZGX10201702-201909

58815ACARPET, CONSOLE BOX

main58815-F4010iZGX10201702-201909

58816BINSERT, CONSOLE BOX

main58816-F4010-C0iZGX10201702-201805

EU BLACK,TRIM2#

main58816-F4010-C1iZGX10201805-201909

BLACK,TRIM2#

58817AINSERT, CONSOLE BOX, FRONT NO.2

main58817-F4010-C0iZGX10201702-201805

EU BLACK,TRIM2#

main58817-F4010-C1iZGX10..D; ZGX10..E; ZGX10..G201909-202210

BLACK,TRIM2#; BLACK,TRIM2#,4#,8#; BLACK,TRIM2#,8#

58856CHOLDER, CONSOLE

main58856-F4050iZGX10201909-202210

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-F4010-C1iZGX10201702-201909

BLACK,TRIM20,21,22

main58905-F4010-C2iZGX10..D,G; ZGX10..E201909-201911

BLACK,TRIM2#; BLACK,TRIM20,21

main58905-F4010-E2iZGX10..E201909-202210

ORCHID BROWN,TRIM22,23,4#

main58905-F4010-J1iZGX10..E; ZGX10..G201909-202210

BLUE,TRIM24,8#; BLUE,TRIM8#

main58905-F4010-E1iZGX10201702-201909

LIMITED PACKAGE,LICORICE,TRIM20

58908ALOCK SUB-ASSY, CONSOLE COMPARTMENT DOOR

main58908-F4010iZGX10201909-202210

58910DCLIP(FOR CONSOLE BOX)

main90467-05172×4iZGX10201702-201909

58911APANEL, BOX SIDE, NO.1

main58911-F4010-C0iZGX10201702-201805

EU BLACK,TRIM2#

main58911-F4010-C1iZGX10..D; ZGX10..E; ZGX10..G201909-202210

BLACK,TRIM2#; BLACK,TRIM2#,4#,8#; BLACK,TRIM2#,8#

58912CPANEL, BOX SIDE, NO.2

main58912-F4010-C0iZGX10201702-201805

EU BLACK,TRIM2#

main58912-F4010-C1iZGX10..D; ZGX10..E; ZGX10..G201909-202210

BLACK,TRIM2#; BLACK,TRIM2#,4#,8#; BLACK,TRIM2#,8#

58923APANEL, CONSOLE REAR END

main58923-F4020-C0iZGX10201702-201805

EU BLACK,TRIM2#

main58923-F4020-C1iZGX10201805-201909

BLACK,TRIM2#

58951DDOOR, CONSOLE COMPARTMENT, OUTER

main58951-F4010iZGX10201702-201909

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-60060×3iZGX10201702-201909

58985RETAINER, CONSOLE BOX

main58985-F4010iZGX10201702-201909

58995ABRACKET, CONSOLE BOX MOUNTING, NO.1

main58995-F4010iZGX10201702-201909

9008011522

main90080-11522

90119W0037

main90119-W0037

90119W0141

main90119-W0141

90167W0007

main90167-W0007

9046705171

main90467-05171

9046705172

main90467-05172

91631B0616

main91631-B0616

9167380816

main91673-80816

9356855014

main93568-55014

29 parts on this diagram · 1 diagram in section
