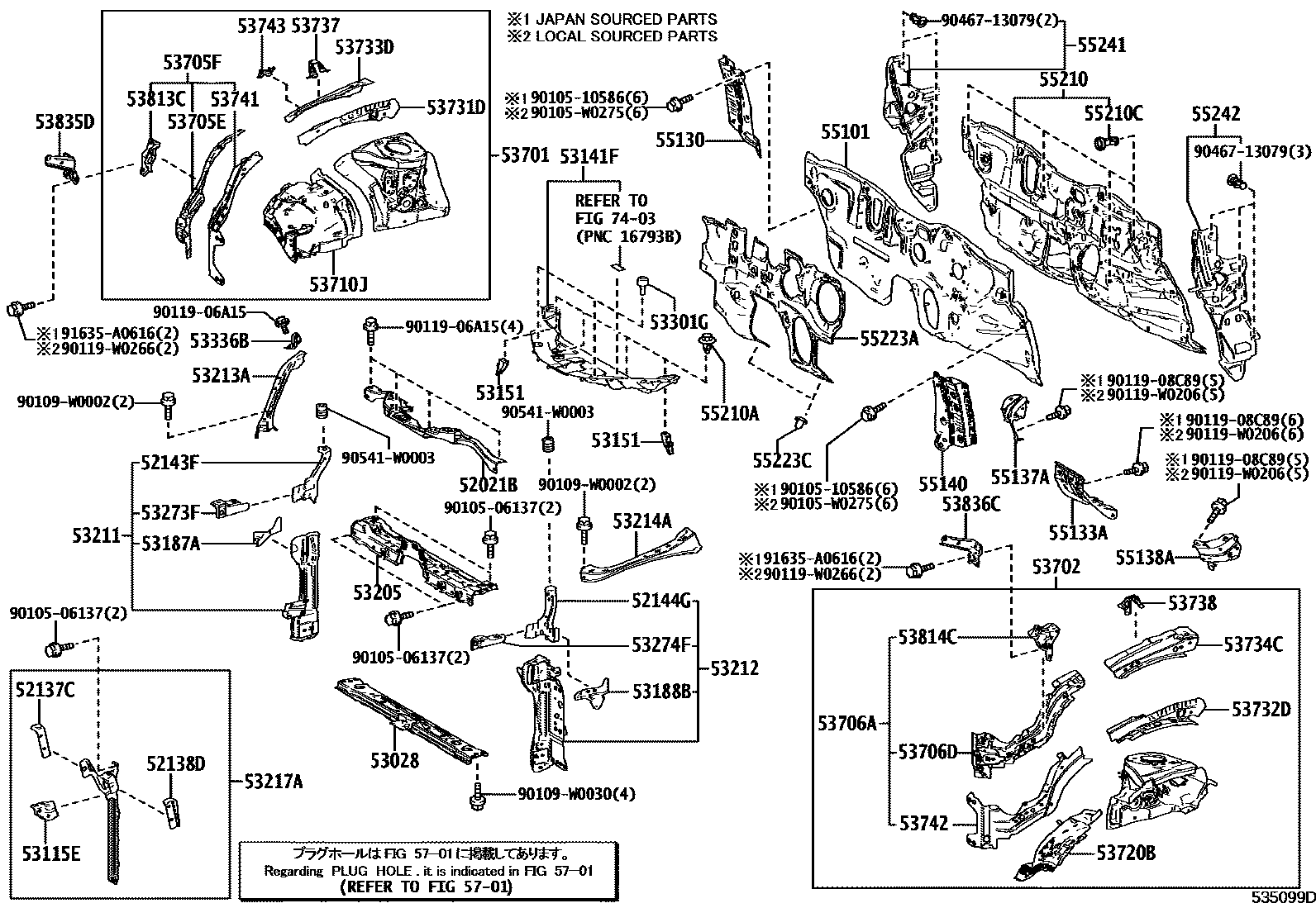

FRONT FENDER APRON & DASH PANEL

0001 1 0002 1 0003 1AIR GUIDE

52021BREINFORCEMENT SUB-ASSY, FRONT BUMPER

main52029-F4010iZGX10201702-202210

52137CBRACKET, FRONT BUMPER ARM MOUNTING, NO.3

main52137-F4010iZGX10201702-202210

52138DBRACKET, FRONT BUMPER ARM MOUNTING, NO.4

main52138-F4010iZGX10201702-202210

52143FBRACKET, FRONT BUMPER SIDE, RH

main52143-F4010iZGX10201702-202210

52144GBRACKET, FRONT BUMPER SIDE, LH

main52144-F4010iZGX10201702-202210

53028SUPPORT SUB-ASSY, RADIATOR, LOWER

main53028-F4010iZGX10201702-202210

53115EBRACKET, RADIATOR GRILLE

main53115-F4010iZGX10201702-202210

53141FCOVER, RADIATOR

main53141-F4011iZGX10201702-201809

sub53141-F4012

main53141-F4012iZGX10201810-202210

53151BRACKET, RADIATOR COVER SUPPORT

main53151-F4010iZGX10201702-202210

53187ASTAY, RADIATOR SUPPORT, RH

main53187-F4010iZGX10201702-202210

53188BSTAY, RADIATOR SUPPORT, LH

main53188-F4010iZGX10201702-202210

53205SUPPORT SUB-ASSY, RADIATOR, UPPER

main53205-F4010iZGX10201702-202210

53211SUPPORT, RADIATOR, RH

main53202-F4900iZGX10201702-202210

53212SUPPORT, RADIATOR, LH

main53203-F4900iZGX10201702-202210

53213ASUPPORT, RADIATOR, UPPER RH

main53213-F4010iZGX10201702-202210

53214ASUPPORT, RADIATOR, UPPER LH

main53214-F4010iZGX10201702-202210

53217ABRACE, HOOD LOCK SUPPORT

main53208-F4900iZGX10201702-202210

53273FBRACKET, FRONT BUMPER RETAINER MOUNTING, RH

main53273-F4010iZGX10201702-202210

53274FBRACKET, FRONT BUMPER RETAINER MOUNTING, LH

main53274-F4010iZGX10201702-202210

53301GCUSHION, HOOD BUMPER

main53119-12150iZGX10201702-202210

53336BBRACKET, HOOD STAY

main53336-F4010iZGX10201702-201905

sub53336-F4011

main53336-F4011iZGX10201905-202210

53701APRON SUB-ASSY, FRONT FENDER, RH

main53701-F4010iZGX10201702-202210

53702APRON SUB-ASSY, FRONT FENDER, LH

main53702-F4010iZGX10201702-202210

53705EMEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, RH

main53705-F4010iZGX10201702-202210

53705FBRACE SUB-ASSY, FENDER APRON, RH

main53705-F4900iZGX10201702-202210

53706ABRACE SUB-ASSY, FENDER APRON, LH

main53706-F4900iZGX10201702-202210

53706DMEMBER SUB-ASSY, FRONT APRON TO COWL SIDE, LH

main53706-F4010iZGX10201702-202210

53710JAPRON ASSY, FRONT FENDER, RH

main53710-F4010iZGX10201702-202210

53720BAPRON ASSY, FRONT FENDER, LH

main53720-F4010iZGX10201702-202210

53731DMEMBER, FRONT APRON TO COWL SIDE, UPPER RH

main53731-F4011iZGX10201702-202210

53732DMEMBER, FRONT APRON TO COWL SIDE, UPPER LH

main53732-F4010iZGX10201702-202210

53733DMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT RH

main53733-F4010iZGX10201702-202210

53734CMEMBER, FRONT APRON TO COWL SIDE, LOWER FRONT LH

main53734-F4010iZGX10201702-202210

53737PLATE, FRONT APRON TO COWL SIDE MEMBER, RH

main53737-F4010iZGX10201702-202210

53738PLATE, FRONT APRON TO COWL SIDE MEMBER, LH

main53738-F4010iZGX10201702-202210

53741PLATE, FRONT FENDER APRON WIND GUIDE, RH

main53741-F4011iZGX10201702-202210

53742PLATE, FRONT FENDER APRON WIND GUIDE, LH

main53742-F4011iZGX10201702-202210

53743REINFORCEMENT, FRONT FENDER APRON EXTENSION

main53743-F4010iZGX10201702-202210

53813CEXTENSION, FRONT FENDER, RH

main53813-F4010iZGX10201702-202210

53814CEXTENSION, FRONT FENDER, LH

main53814-F4010iZGX10201702-202210

53835DBRACKET, FRONT SIDE PANEL, RH

main53835-F4010iZGX10201702-202210

53836CBRACKET, FRONT SIDE PANEL, LH

main53836-F4010iZGX10201702-202210

55101PANEL SUB-ASSY, DASH

main55101-F4010iZGX10201702-202210

55130PLATE ASSY, FENDER APRON SET, RH

main55130-F4010iZGX10201702-201803

main55130-F4011iZGX10201804-201901

55133AREINFORCEMENT, DASH TO FLOOR, RH

main55133-F4010iZGX10201702-202210

55137ABRACE, DASH TO FRAME, RH

main55137-F4010iZGX10201702-202210

55138ABRACE, DASH TO FRAME, LH

main55138-F4010iZGX10201702-202210

55140PLATE ASSY,FENDER APRON SET, LH

main55140-F4010iZGX10201702-201803

main55140-F4011iZGX10201804-201901

55210INSULATOR ASSY, DASH PANEL

main55210-F4010iZGX10201702-202210

55210ACLIP

main90467-07217iZGX10201702-202210

55210CCLIP

main90467-11122iZGX10201702-202210

55223AINSULATOR, DASH PANEL, OUTER

main55223-F4010iZGX10201702-202104

sub55223-F4011

main55223-F4011iZGX10202105-202210

55223CCLIP

main90467-06197iZGX10201702-202210

55241SILENCER, FRONT PANEL SIDE, NO.1 RH

main55241-F4010iZGX10201702-202210

55242SILENCER, FRONT PANEL SIDE, NO.1 LH

main55242-F4010iZGX10201702-202210

5701

7403

9010506137

main90105-06137

9010510586

main90105-10586

90105W0275

main90105-W0275

90109W0002

main90109-W0002

90109W0030

main90109-W0030

9011906A15

main90119-06A15

9011908C89

main90119-08C89

90119W0206

main90119-W0206

90119W0266

main90119-W0266

9046713079

main90467-13079

90541W0003

main90541-W0003

91635A0616

main91635-A0616

69 parts on this diagram · 3 diagrams in section
