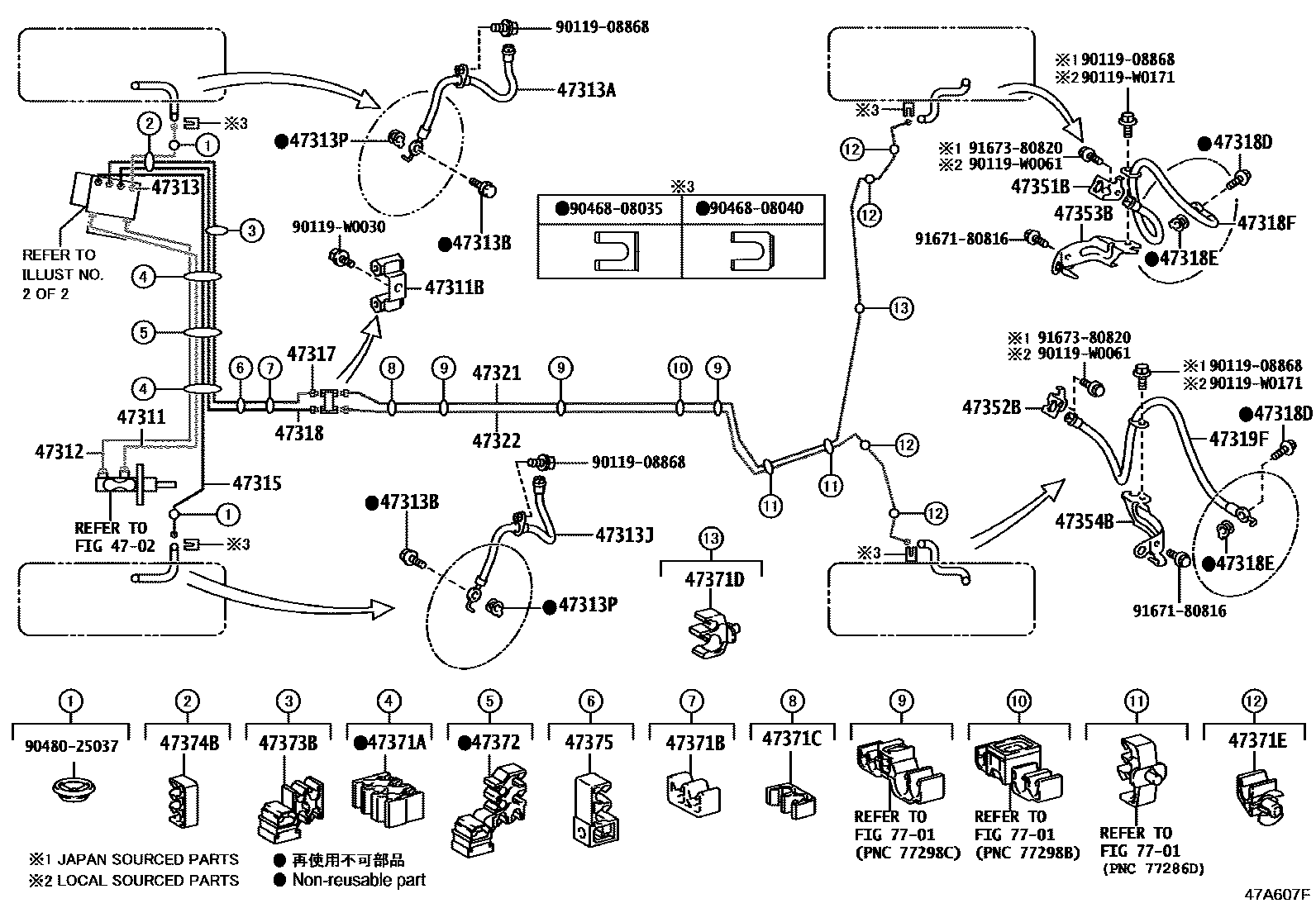

BRAKE TUBE & CLAMP

0001 1BRAKE TUBE 0002 1BRAKE ACTUATOR

4702BRAKE MASTER CYLINDER

→ Go to FIG 47-02

47311TUBE, FRONT BRAKE, NO.1

main47311-F4030iZGX10201702-201909

47311BWAY, NO.1(FOR FRONT BRAKE TUBE)

main90412-10285iZGX10201702-201909

47312TUBE, FRONT BRAKE, NO.2

main47312-F4030iZGX10201702-201909

47313TUBE, FRONT BRAKE, NO.3

main47313-02G70iZGX10201909-202210

main47313-F4030iZGX10201702-201812

47313AHOSE, FLEXIBLE, NO.1(FOR FRONT)

main90947-W2066iZGX10201702-201909

47313BBOLT, UNION(FOR FRONT FLEXIBLE HOSE)

main90401-10058×2iZGX10201702-201909

47313JHOSE, FLEXIBLE, NO.2(FOR FRONT)

main90947-W2067iZGX10201702-201909

47313PGASKET(FOR FRONT FLEXIBLE HOSE)

main47389-50021×2iZGX10201702-201909

47315TUBE, FRONT BRAKE, NO.5

main47315-02640iZGX10201812-201909

main47315-F4030iZGX10201702-201812

47317TUBE, FRONT BRAKE, NO.7

main47317-02F50iZGX10201812-201909

main47317-F4030iZGX10201702-201812

47318TUBE, FRONT BRAKE, NO.8

main47318-02F70iZGX10201812-201909

main47318-F4030iZGX10201702-201812

47318DBOLT, UNION(FOR REAR FLEXIBLE HOSE)

main90401-10058×2iZGX10201909-202210

47318EGASKET(FOR REAR FLEXIBLE HOSE)

main47389-50021×2iZGX10201702-201909

47318FHOSE, FLEXIBLE(FOR REAR RH)

main90947-W2068iZGX10201702-201909

47319FHOSE, FLEXIBLE(FOR REAR LH)

main90947-W2069iZGX10201702-201909

47321TUBE, REAR BRAKE, NO.1

main47321-F4011iZGX10201702-201909

47322TUBE, REAR BRAKE, NO.2

main47322-F4011iZGX10201702-201909

47351BBRACKET, FLEXIBLE HOSE, NO.1

main47351-F4020iZGX10201702-201909

47352BBRACKET, FLEXIBLE HOSE, NO.2

main47352-F4020iZGX10201702-201909

47353BBRACKET, FLEXIBLE HOSE, NO.3

main47351-F4010iZGX10201702-201909

47354BBRACKET, FLEXIBLE HOSE, NO.4

main47352-F4010iZGX10201702-201909

47371ACLAMP, BRAKE TUBE, NO.1

main90949-01E44×2iZGX10201702-201909

47371BCLAMP, BRAKE TUBE, NO.6

main90949-01D91iZGX10201702-201909

47371CCLAMP, BRAKE TUBE, NO.7

main90464-00904iZGX10201702-201909

47371DCLAMP, BRAKE TUBE, NO.8

main77285-47110iZGX10201702-201909

47371ECLAMP, BRAKE TUBE, NO.9

main90949-01E10×4iZGX10201702-201909

47372CLAMP, BRAKE TUBE, NO.2

main90949-01E42iZGX10201702-201909

47373BCLAMP, BRAKE TUBE, NO.3

main90949-01E51iZGX10201702-201909

47374BCLAMP, BRAKE TUBE, NO.4

main90949-01D92iZGX10201702-201909

47375CLAMP, BRAKE TUBE, NO.5

main90949-01E33iZGX10201702-201909

7701FUEL TANK & TUBE

→ Go to FIG 77-01

9011908868

main90119-08868

90119W0030

main90119-W0030

90119W0061

main90119-W0061

90119W0171

main90119-W0171

9046808035

main90468-08035

9046808040

main90468-08040

9048025037

main90480-25037

9167180816

main91671-80816

9167380820

main91673-80820

41 parts on this diagram · 2 diagrams in section
