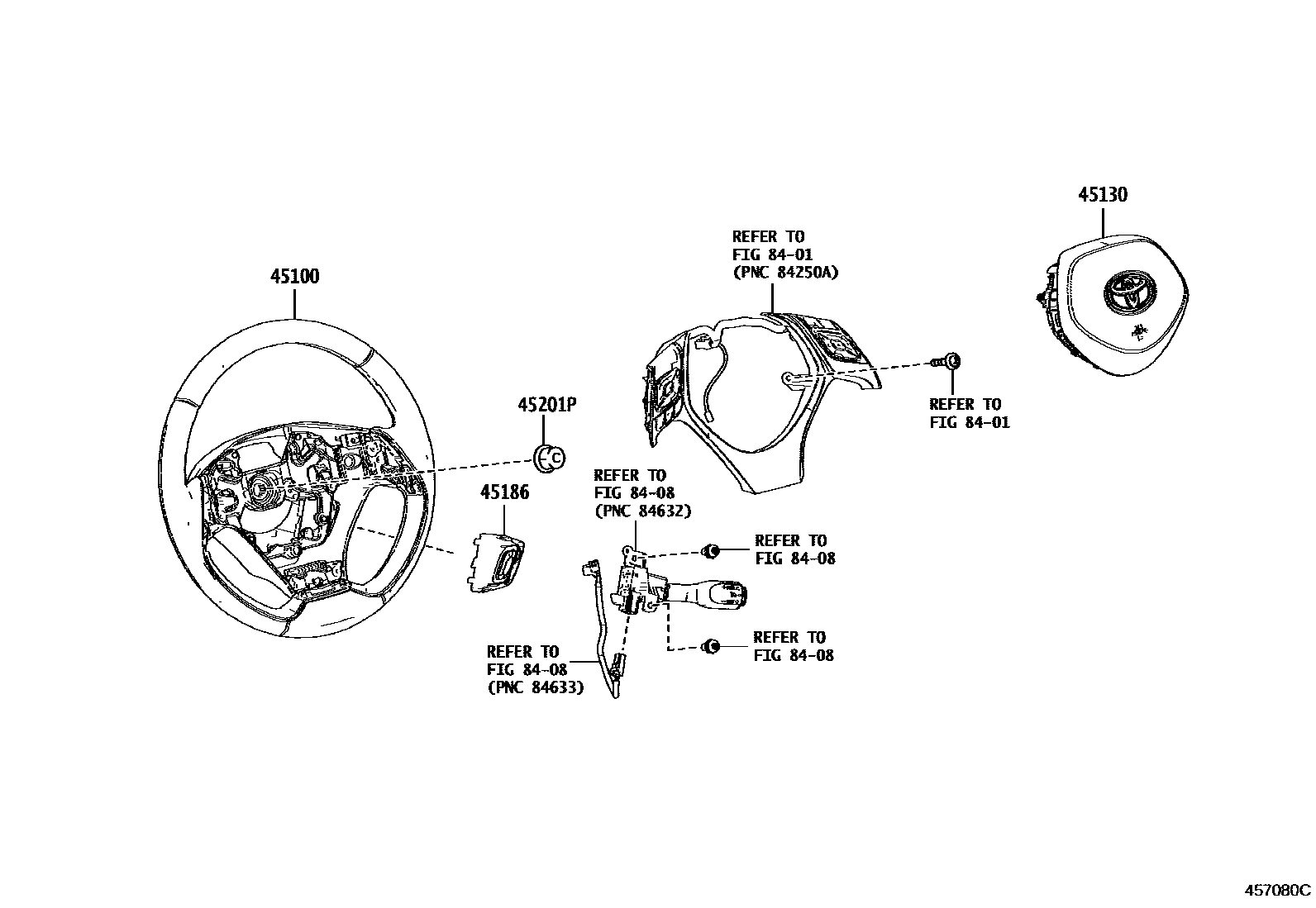

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-F4010-C1iZGX10..D201909-202210

3-SPOKE,URETHANE,BLACK,TRIM2#

main45100-F4020-C1supersedes 45100-F4010-C1iZGX10201702-201805

3-SPOKE,LEATHER,BLACK,TRIM2#

main45100-F4110-C0iZGX10..E; ZGX10..G201909-202210

3-SPOKE,LEATHER,BLACK,TRIM2#; 3-SPOKE,LEATHER,BLACK,TRIM8#

45130BUTTON ASSY, HORN

main45130-F4020-C0iZGX10201702-201804

EU BLACK,TRIM2#

main45130-F4021-C1iZGX10..D; ZGX10..E; ZGX10..G201909-202210

BLACK,TRIM2#; BLACK,TRIM2#,4#,8#; BLACK,TRIM2#,8#

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-F4010-C0iZGX10201702-201805

EU BLACK,TRIM2#

main45186-F4010-C1iZGX10201805-201909

BLACK,TRIM2#

45201PNUT, STEERING WHEEL SET

main90179-12071iZGX10201702-201909

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8408CRUISE CONTROL (AUTO DRIVE)

→ Go to FIG 84-08

6 parts on this diagram · 1 diagram in section
