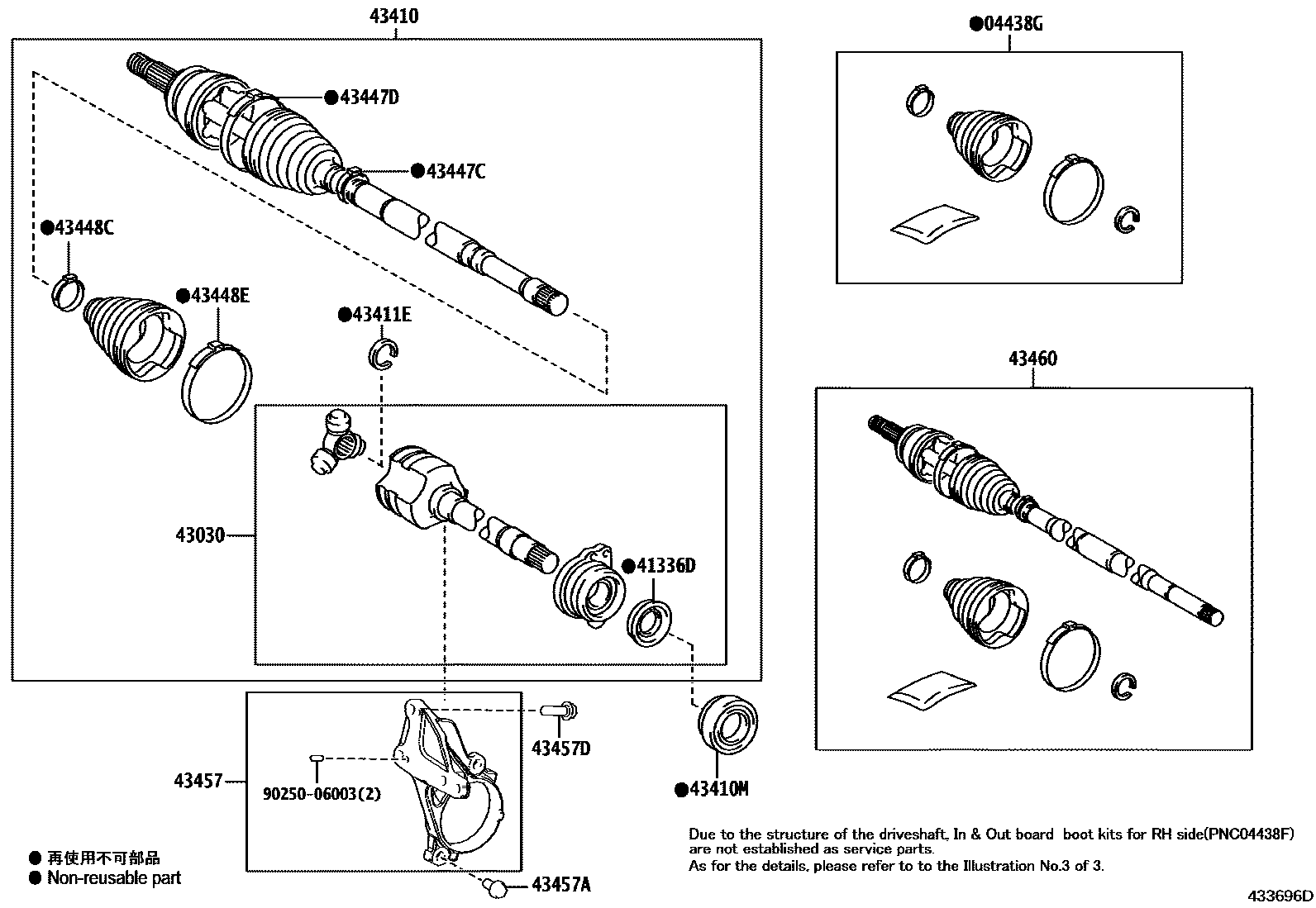

FRONT DRIVE SHAFT

0001 1RH 0002 1LH 0003 1

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04438-F4010iZGX10201702-202210

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-05100iZGX10201702-202210

43030JOINT ASSY, FRONT DRIVE INBOARD, RH

main43030-F4010iZGX10201702-202201

main43030-F4011iZGX10202202-202210

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-F4030iZGX10201702-202210

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-40041iZGX10201702-202210

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-05040iZGX10201702-202210

43447CCLAMP (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-02820iZGX10201702-202210

43447DCLAMP, NO.2 (FOR FRONT AXLE OUTBOARD JOINT BOOT RH)

main42345-02810iZGX10201702-202210

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-0F070iZGX10201702-202210

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-F4020iZGX10201702-202210

43457BRACKET, DRIVE SHAFT BEARING

main43457-10030iZGX10201702-202210

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90105-W0214iZGX10201702-202210

*10-1.25PX22-19.5

43457DBOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)

main90105-W0215iZGX10201702-202210

43460SHAFT ASSY, FRONT DRIVE OUTBOARD JOINT, RH

main43470-F9030iZGX10201702-202007

main43470-F9031iZGX10202007-202210

9025006003

main90250-06003

15 parts on this diagram · 3 diagrams in section
