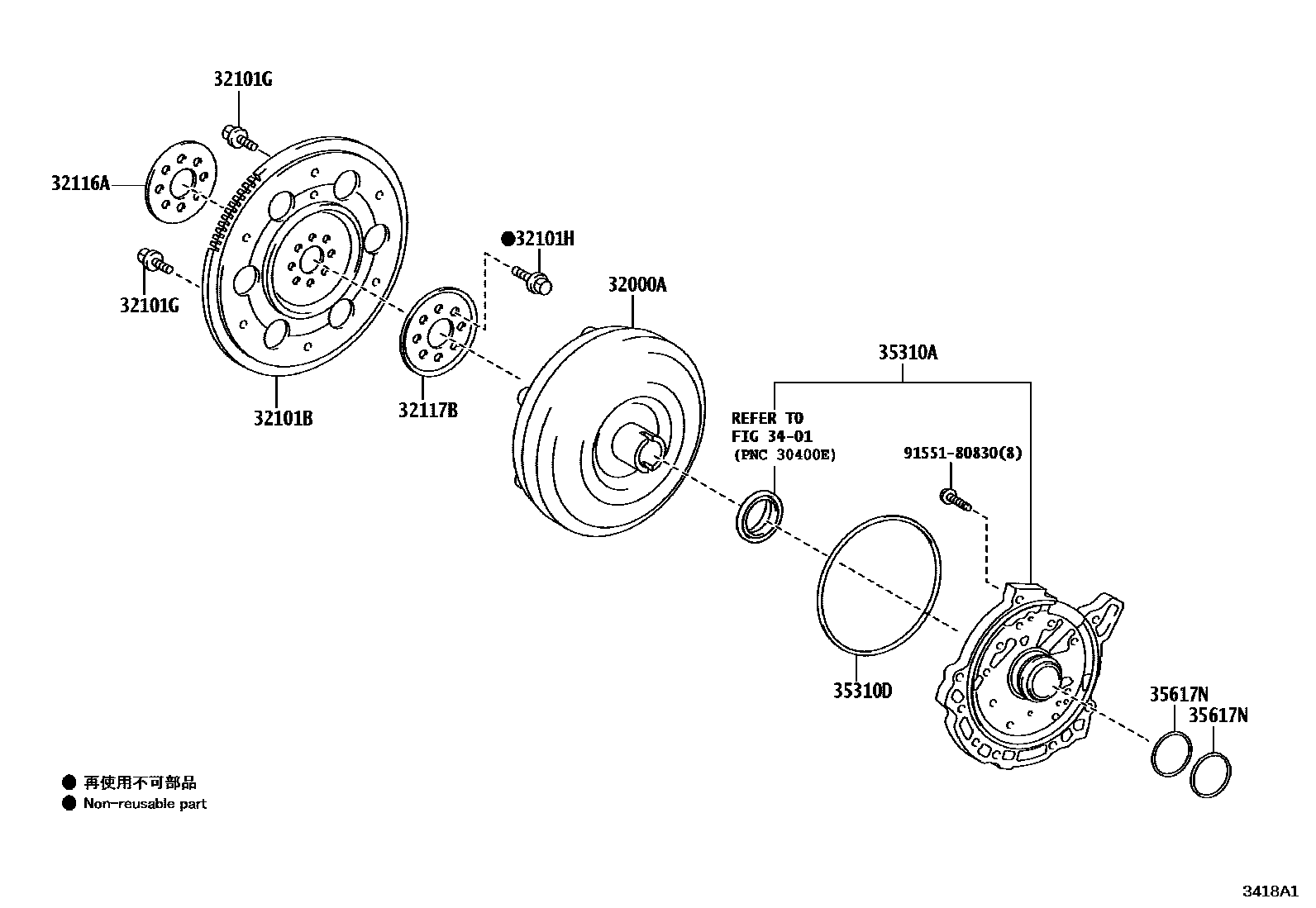

TORQUE CONVERTER, FRONT OIL PUMP(CVT)

32000ACONVERTER ASSY, TORQUE

main32000-28191iZGX10201909-202210

32101BGEAR SUB-ASSY, DRIVE PLATE & RING

main32101-28050iZGX10201702-201909

32101GBOLT(FOR DRIVE PLATE & TORQUE CONVERTER SETTING)

main90109-09001iZGX10201909-202210

*9-1.25PX12.4-7.3,BLACK

main90119-09025×5iZGX10201702-201909

*9-1.25PX12.4-8.4,SILVER

32101HBOLT, HEXAGON(FOR DRIVE PLATE SETTING)

main90105-10048×8iZGX10201702-201909

32116ASPACER, DRIVE PLATE, FRONT

main32116-12030iZGX10201702-201909

32117BSPACER, DRIVE PLATE, REAR

main32117-12040iZGX10201702-201909

3401TRANSAXLE ASSY(CVT)

→ Go to FIG 34-01

35310APUMP ASSY, FRONT OIL

main35310-28040iZGX10201702-201803

main35310-28041iZGX10201804-201909

35310DRING, O (FOR FRONT OIL PUMP)

main35697-28010iZGX10201702-201909

35617NRING, CLUTCH DRUM OIL SEAL

main35617-28020×2iZGX10201702-201909

9155180830

main91551-80830

11 parts on this diagram · 1 diagram in section
