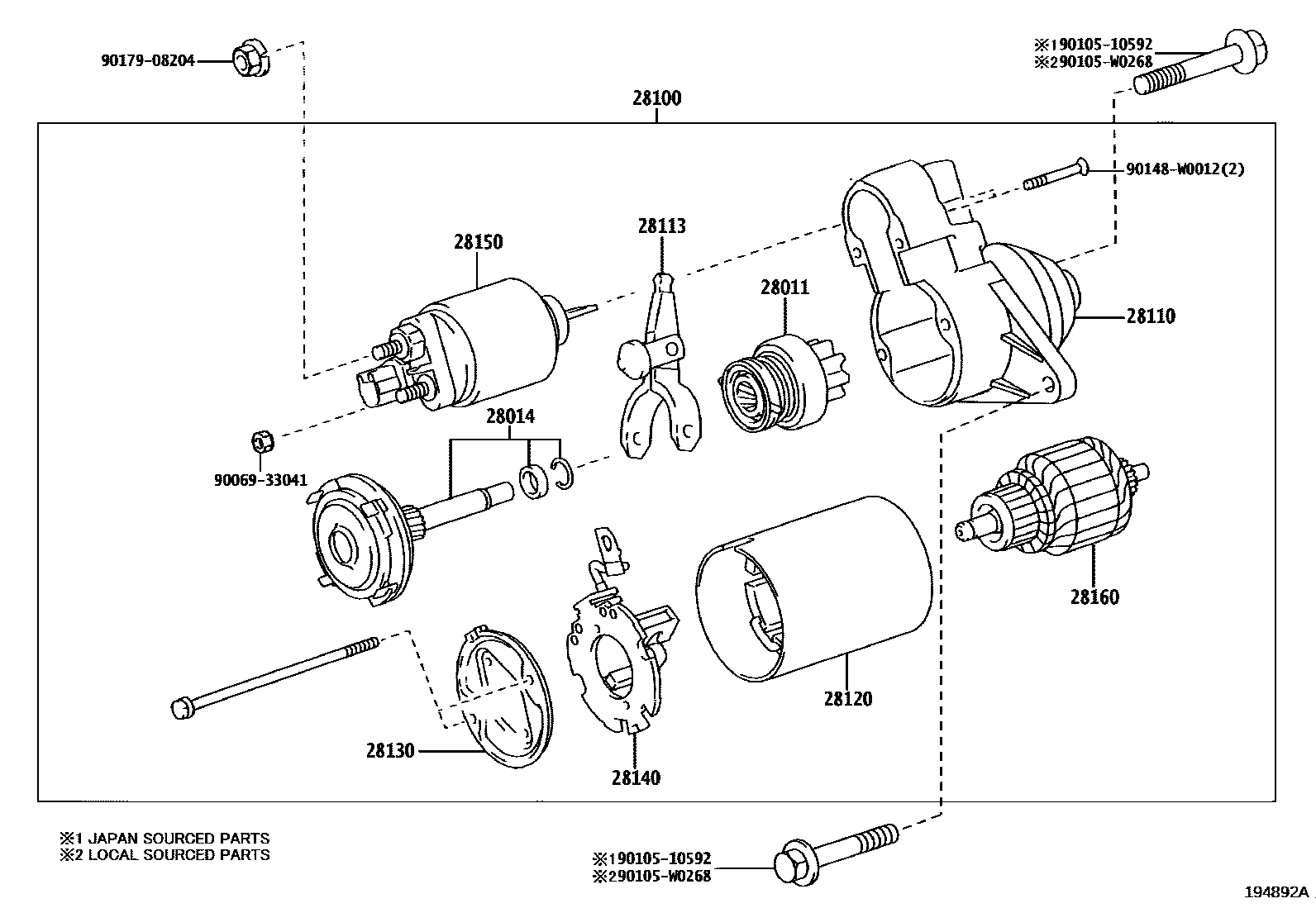

STARTER

28011CLUTCH SUB-ASSY, STARTER

main28011-0T350i3ZRFAE..ZGX10201702-201909

28014SHAFT SUB-ASSY, PLANET CARRIER

main28014-0T350i3ZRFAE..ZGX10201702-201909

28100STARTER ASSY

main28100-0T350i3ZRFAE..ZGX10201702-201909

12V 1.2KW

28110HOUSING ASSY, STARTER DRIVE

main28110-0T350i3ZRFAE..ZGX10201702-201909

28113LEVER, STARTER PINION DRIVE

main28113-0T310i3ZRFAE..ZGX10201702-201909

28120YOKE ASSY, STARTER

main28120-0T350i3ZRFAE..ZGX10201702-201909

28130FRAME ASSY, STARTER COMMUTATOR END

main28130-0T350i3ZRFAE..ZGX10201702-201909

28140HOLDER ASSY, STARTER BRUSH

main28140-0T350i3ZRFAE..ZGX10201702-201909

28150SWITCH ASSY, MAGNET STARTER

main28150-0T350i3ZRFAE..ZGX10201702-201909

28160ARMATURE ASSY, STARTER

main28160-0T350i3ZRFAE..ZGX10201702-201909

9006933041

main90069-33041

9010510592

main90105-10592

90105W0268

main90105-W0268

90148W0012

main90148-W0012

9017908204

main90179-08204

15 parts on this diagram · 1 diagram in section
