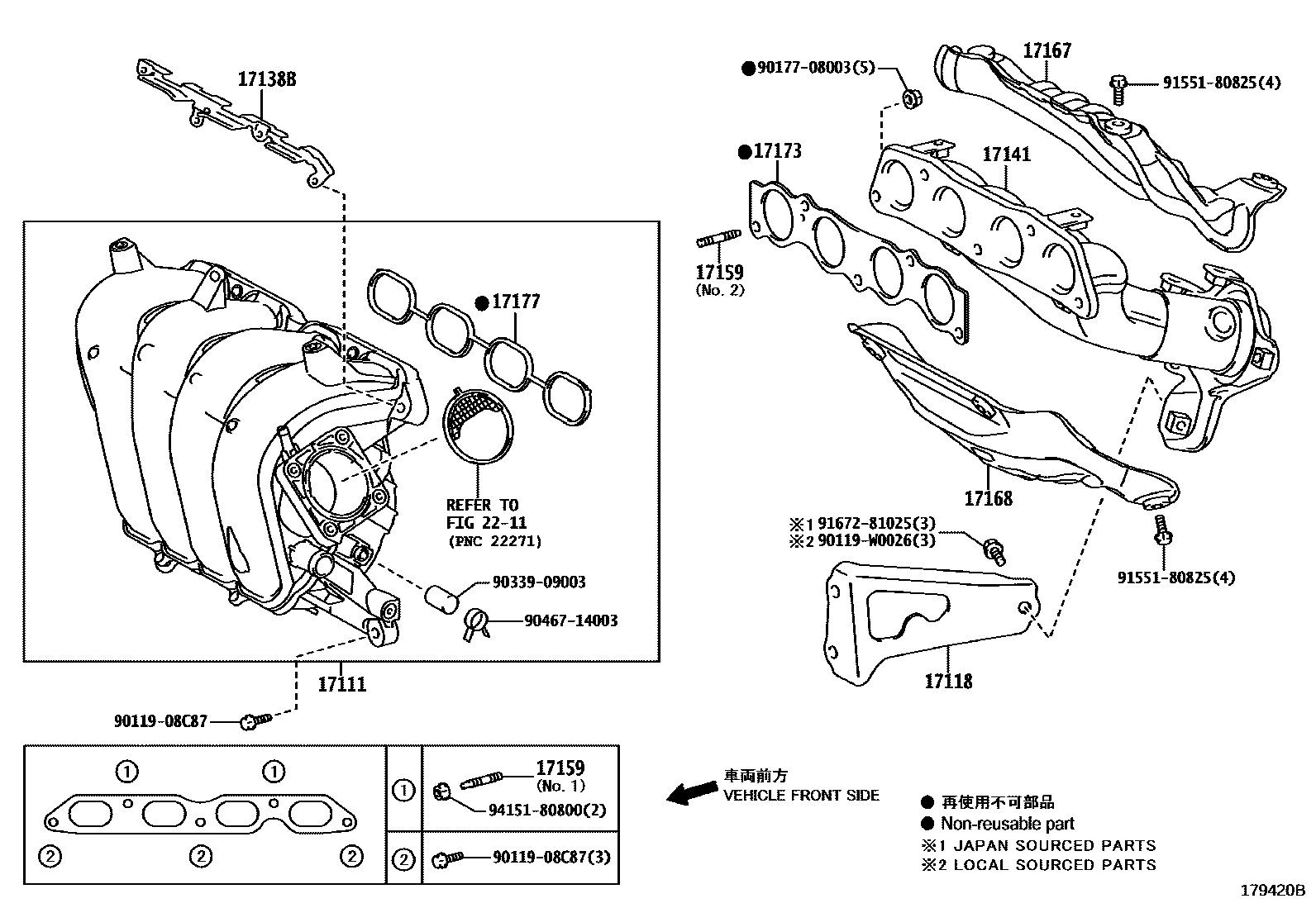

Toyota C-HR (TUP)528 — MANIFOLD
17111MANIFOLD, INTAKE
17118STAY, MANIFOLD
17138BSTAY, INTAKE MANIFOLD
17167INSULATOR, EXHAUST MANIFOLD HEAT, NO.1
17168INSULATOR, EXHAUST MANIFOLD HEAT, NO.2
17173GASKET, EXHAUST MANIFOLD TO HEAD
17177GASKET, INTAKE MANIFOLD TO HEAD, NO.1
2211FUEL INJECTION SYSTEM
9011908C87
90119W0026
9017708003
9033909003
9046714003
9155180825
9167281025
9415180800
18 parts on this diagram · 1 diagram in section
MANIFOLD for Toyota C-HR (TUP)528
This section contains 18 genuine Toyota parts for the MANIFOLD system of the Toyota C-HR (TUP)528. Key components include: MANIFOLD, INTAKE, STAY, MANIFOLD, STAY, INTAKE MANIFOLD, MANIFOLD, EXHAUST, BOLT, STUD(FOR MANIFOLD TO CYLINDER HEAD).
