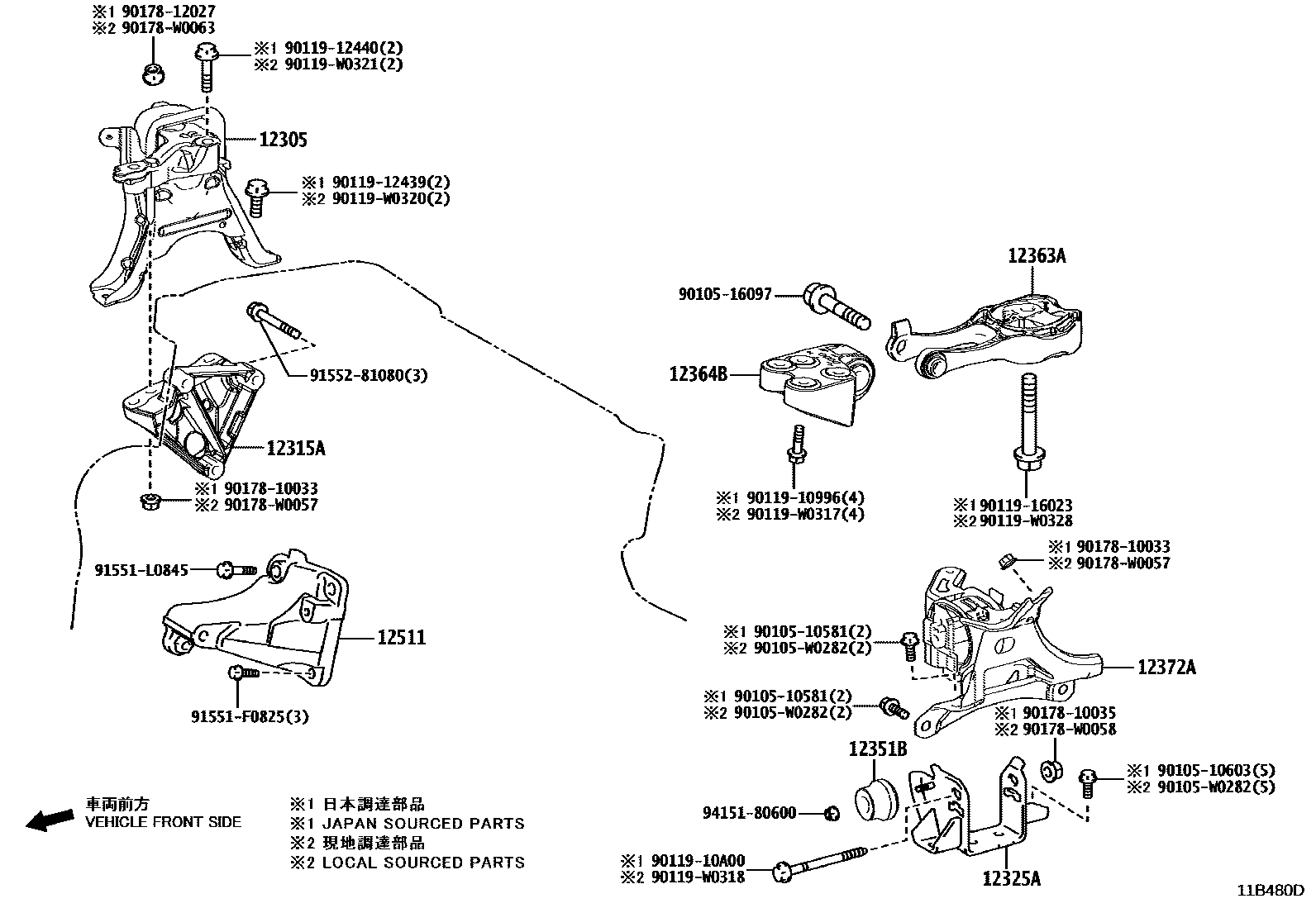

MOUNTING

12305INSULATOR SUB-ASSY, ENGINE MOUNTING, RH

main12305-0T340i3ZRFAE..ZGX10201702-201811

main12305-0T341i3ZRFAE..ZGX10201812-201909

12315ABRACKET, ENGINE MOUNTING, RH(FOR TRANSVERSE ENGINE)

main12315-37060i3ZRFAE..ZGX10201702-201909

12325ABRACKET, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12325-0T490i3ZRFAE..ZGX10201702-201909

12351BDAMPER, ENGINE MOUNTING

main12351-0T320i3ZRFAE..ZGX10201702-201909

12363AROD, ENGINE MOVING CONTROL

main12363-0T030i3ZRFAE..ZGX10201702-201909

12364BROD, ENGINE MOVING CONTROL, NO.2

main12364-0T030i3ZRFAE..ZGX10201702-201909

12372AINSULATOR, ENGINE MOUNTING, LH(FOR TRANSVERSE ENGINE)

main12372-0T580i3ZRFAE..ZGX10201702-201811

main12372-0T581i3ZRFAE..ZGX10201812-201909

12511BRACKET, ALTERNATOR, NO.1

main12501-37010i3ZRFAE..ZGX10201702-201909

9010510581

main90105-10581

9010510603

main90105-10603

9010516097

main90105-16097

90105W0282

main90105-W0282

9011910996

main90119-10996

9011910A00

main90119-10A00

9011912439

main90119-12439

9011912440

main90119-12440

9011916023

main90119-16023

90119W0317

main90119-W0317

90119W0318

main90119-W0318

90119W0320

main90119-W0320

90119W0321

main90119-W0321

90119W0328

main90119-W0328

9017810033

main90178-10033

9017810035

main90178-10035

9017812027

main90178-12027

90178W0057

main90178-W0057

90178W0058

main90178-W0058

90178W0063

main90178-W0063

91551F0825

main91551-F0825

91551L0845

main91551-L0845

9155281080

main91552-81080

9415180600

main94151-80600

32 parts on this diagram · 1 diagram in section
