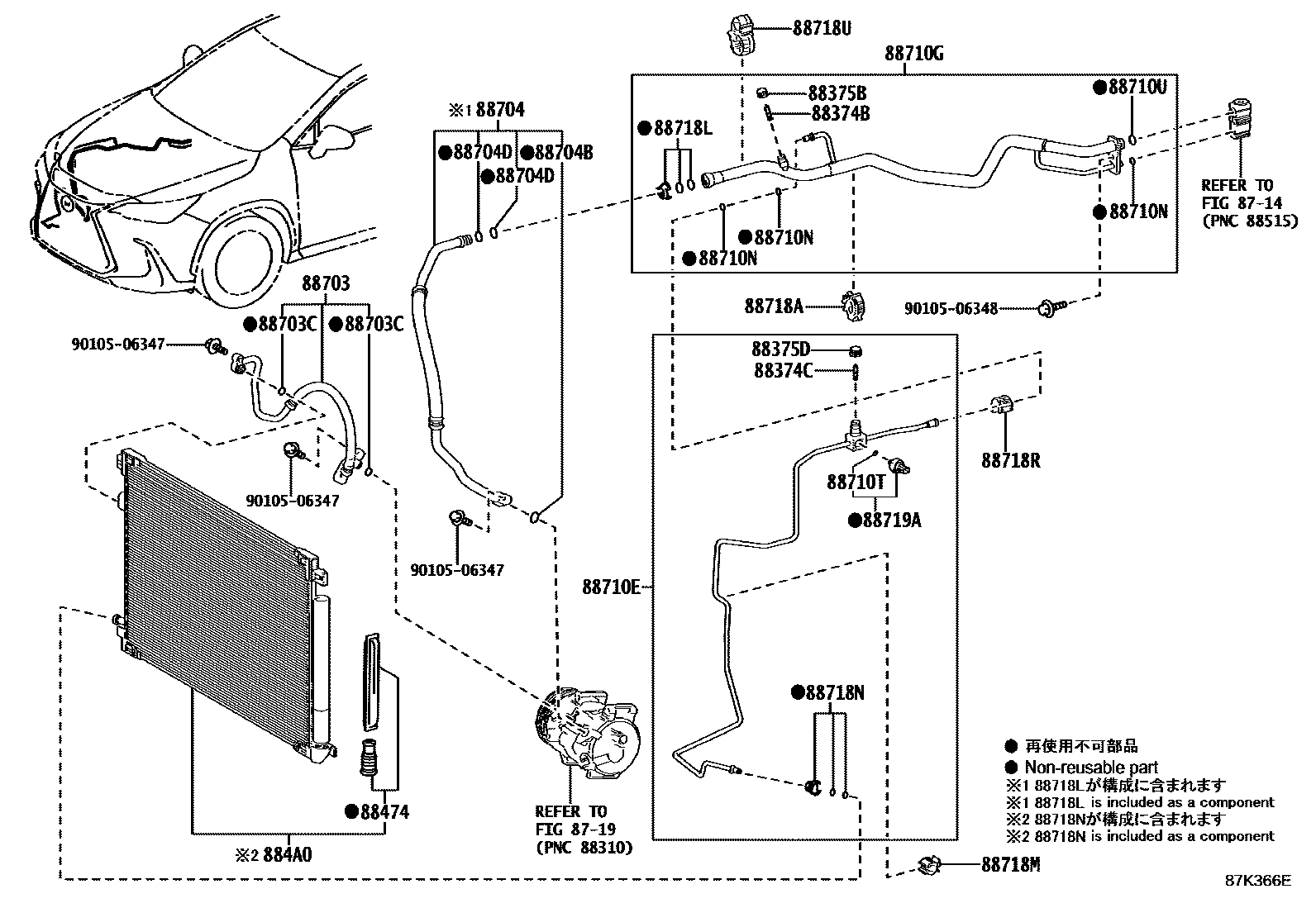

88474DRYER, COOLER
884A0CONDENSER ASSY, COOLER
TOWING PACKAGE-2000 LBS
88703HOSE SUB-ASSY, DISCHARGE
TOWING PACKAGE-2000 LBS
88703CRING, O(FOR DISCHARGE HOSE)
ID=10.8,OD=15.6
88704HOSE SUB-ASSY, SUCTION
TOWING PACKAGE-2000 LBS
88704BRING, O(FOR SUCTION HOSE)
ID=13.4,OD=18.2
ID=13.4,OD=18.2
88704DRING, O, NO.2 (FOR SUCTION HOSE)
ID=13.4,OD=18.2
88710ETUBE & ACCESSORY ASSY, AIR CONDITIONER
TOWING PACKAGE-2000 LBS
KOREA SPEC
KOREA SPEC
88710GTUBE & ACCESSORY ASSY, AIR CONDITIONER, NO.2
KOREA SPEC
88710NRING, O, NO.1(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
ID=6.7,OD=10.3
ID=13.4,OD=18.2
88710TRING, O, NO.3(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
ID=10.6,OD=14.16
88710URING, O, NO.4(FOR TUBE & ACCESSORY ASSY, AIR CONDITIONER)
ID=13.4,OD=18.2
88718ACLAMP, NO.1(FOR COOLER REFRIGERANT PIPE)
88718MCLAMP, PIPING
88718RCLAMP, PIPING
88718UCLAMP, NO.6(FOR COOLER REFRIGERANT PIPE)
88719ASENSOR, AIR CONDITIONER PRESSURE
9010506347
main90105-06347
9010506348
main90105-06348
