HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1 0003 1HEATER ACCESSORY ASSY & BRACK0004 1

1603RADIATOR & WATER OUTLET

→ Go to FIG 16-03

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

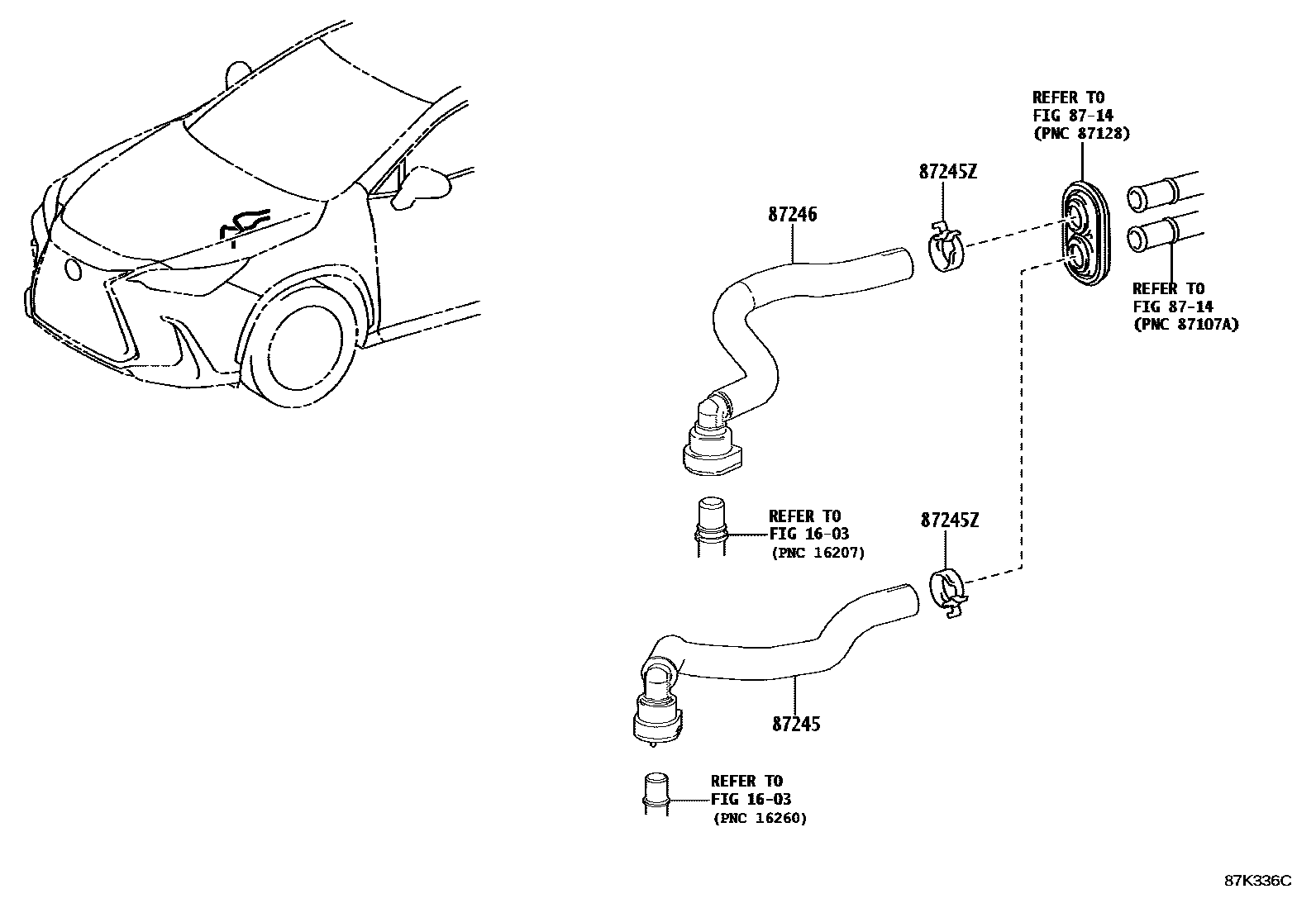

87245HOSE, HEATER WATER, INLET

main87209-42290iAAZA2#,AAZH25202111-202403

main87209-48440iTAZA25202404

main87209-78060iTAZA25202111-202301

main87245-42680iAAZH26202404

87245ZCLIP OR CLAMP (FOR HEATER WATER HOSE)

main96138-42501iAAZH25,TAZA25; AAZH26202404

87246HOSE, HEATER WATER, OUTLET

main87209-42300iAAZA2#202404-202506

main87209-42330iAAZH26202111-202403

main87245-78120iTAZA25202404

5 parts on this diagram · 4 diagrams in section
