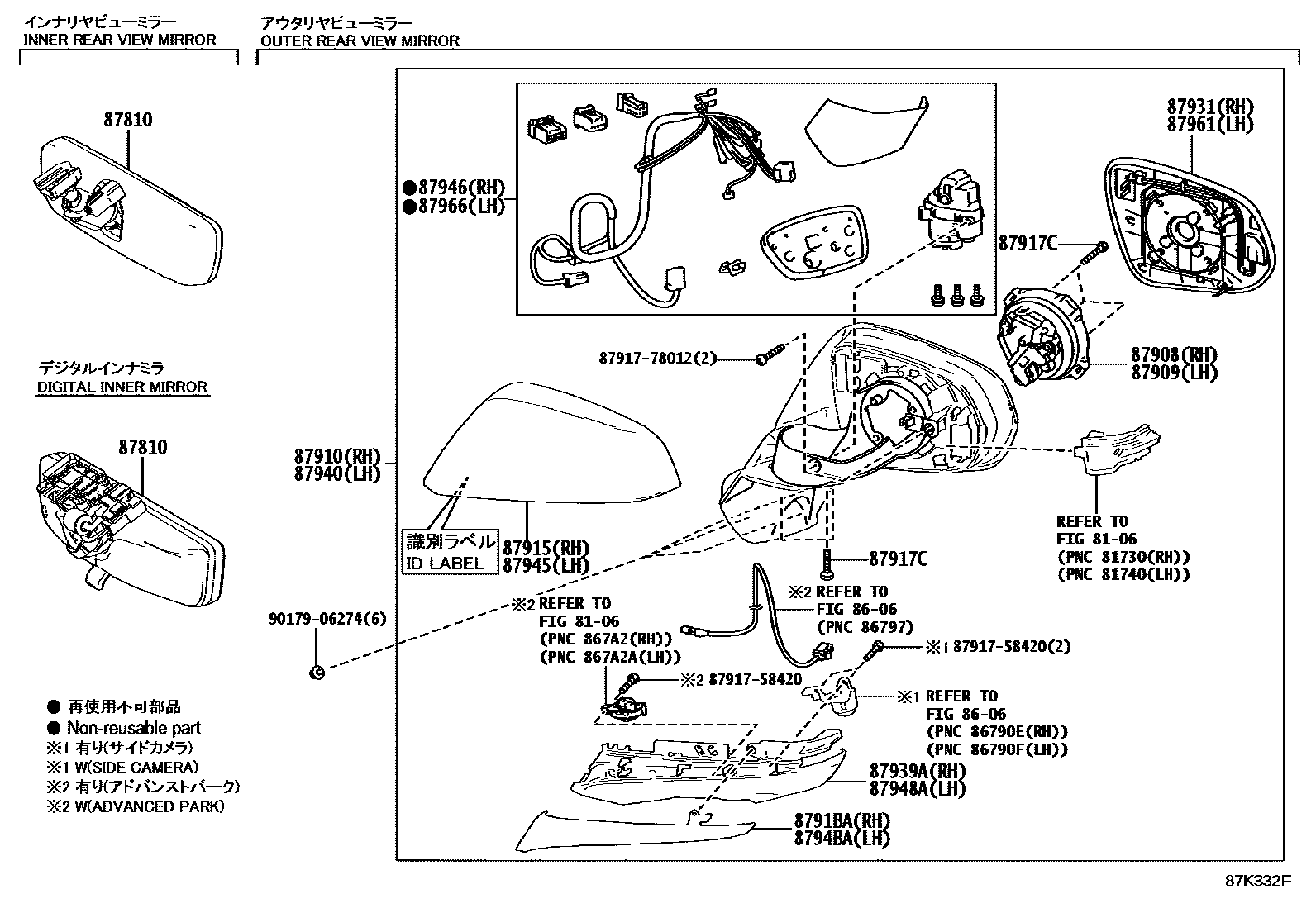

Toyota LEXUS NX SERIES(JPP)527 — MIRROR
8106SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP
8606CAMERA & REAR MONITOR DISPLAY
87810MIRROR ASSY, INNER REAR VIEW
87908ACTUATOR ASSY, OUTER MIRROR, RH
87909ACTUATOR ASSY, OUTER MIRROR, LH
87910MIRROR ASSY, OUTER REAR VIEW, RH
87917CSCREW, OUTER MIRROR
8791BACOVER, OUTER MIRROR, RH NO.3
87939ACOVER, OUTER MIRROR HOLE, RH
87940MIRROR ASSY, OUTER REAR VIEW, LH
87948ACOVER, OUTER MIRROR HOLE, LH
8794BACOVER, OUTER MIRROR, LH NO.3
8791758420ESCUTCHEON
8791778012ESCUTCHEON
9017906274
21 parts on this diagram · 3 diagrams in section
MIRROR for Toyota LEXUS NX SERIES(JPP)527
This section contains 21 genuine Toyota parts for the MIRROR system of the Toyota LEXUS NX SERIES(JPP)527. Key components include: SIDE TURN SIGNAL LAMP & OUTER MIRROR LAMP, CAMERA & REAR MONITOR DISPLAY, MIRROR ASSY, INNER REAR VIEW, ACTUATOR ASSY, OUTER MIRROR, RH, ACTUATOR ASSY, OUTER MIRROR, LH.
