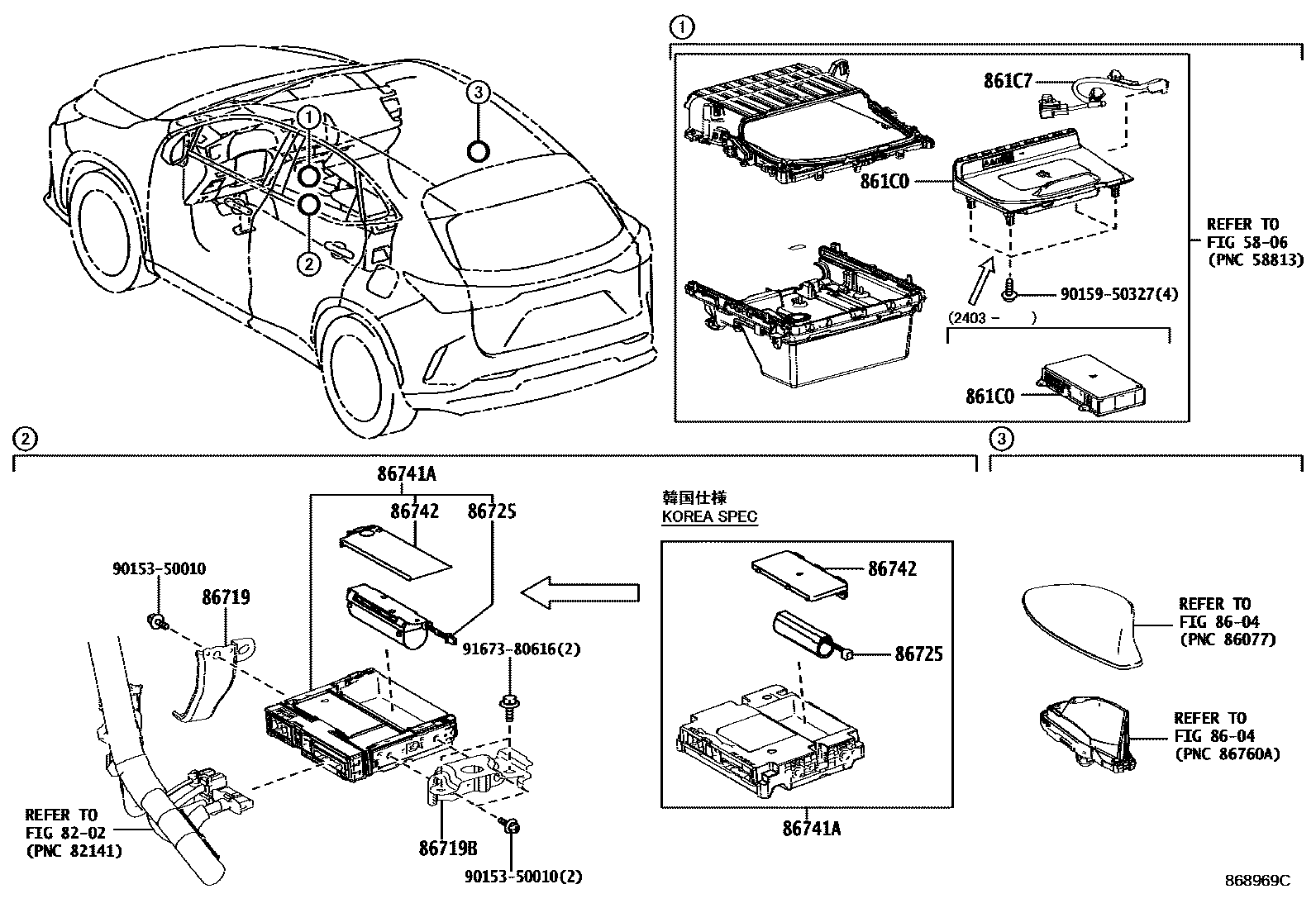

TELEPHONE & MAYDAY

5806CONSOLE BOX & BRACKET

→ Go to FIG 58-06

8202WIRING & CLAMP

→ Go to FIG 82-02

8604ANTENNA

→ Go to FIG 86-04

861C0CRADLE ASSY, MOBILE WIRELESS CHARGER

main861C0-78030iAAZH2#202311-202312

KOREA SPEC&WIRELESS CHARGER-WITH

main861C0-78031iAAZH2#202401-202403

KOREA SPEC&WIRELESS CHARGER-WITH

main861C0-78050iAAZH2#,TAZA25202404

WIRELESS CHARGER-WITH

861C7CORD, MOBILE WIRELESS CHARGER

main861C7-78030iAAZA2#,AAZH2#,TAZA25202111-202309

WIRELESS CHARGER-WITH

main861C7-78031iAAZA2#202404-202506

WIRELESS CHARGER-WITH

86719BRACKET, TELEPHONE

main86719-78070iAAZH2#,TAZA25; AAZH25,TAZA25202404

GUAM SPEC&WITHOUT(REMOTE SERVICE PACKAGE)

86719BBRACKET, TELEPHONE NO.2

main86719-78080iAAZH2#,TAZA25; AAZH25,TAZA25202404

GUAM SPEC&WITHOUT(REMOTE SERVICE PACKAGE)

86725BATTERY, MOBILEPHONE

main86725-0E010iAAZH2#,TAZA25; AAZH25,TAZA25202404

GUAM SPEC&WITHOUT(REMOTE SERVICE PACKAGE)

main86725-06020iAAZH2#202404

KOREA SPEC&WITHOUT(REMOTE SERVICE PACKAGE)

86741ATRANSCEIVER, TELEMATICS

main86741-42160iAAZA2#,AAZH2#,TAZA25; AAZH25,TAZA25202404-202506

GUAM SPEC&WITHOUT(REMOTE SERVICE PACKAGE)

main86741-78100iAAZA2#,AAZH2#,TAZA25202303-202403

main86741-78250iAAZH2#202111-202403

KOREA SPEC&WITHOUT(REMOTE SERVICE PACKAGE)

86742COVER, TRANSCEIVER

main86742-0E020iAAZH2#,TAZA25; AAZH25,TAZA25202404

GUAM SPEC&WITHOUT(REMOTE SERVICE PACKAGE)

main86742-78010iAAZH2#202111-202403

KOREA SPEC&WITHOUT(REMOTE SERVICE PACKAGE)

9015350010

main90153-50010

9015950327

main90159-50327

9167380616

main91673-80616

13 parts on this diagram · 1 diagram in section
