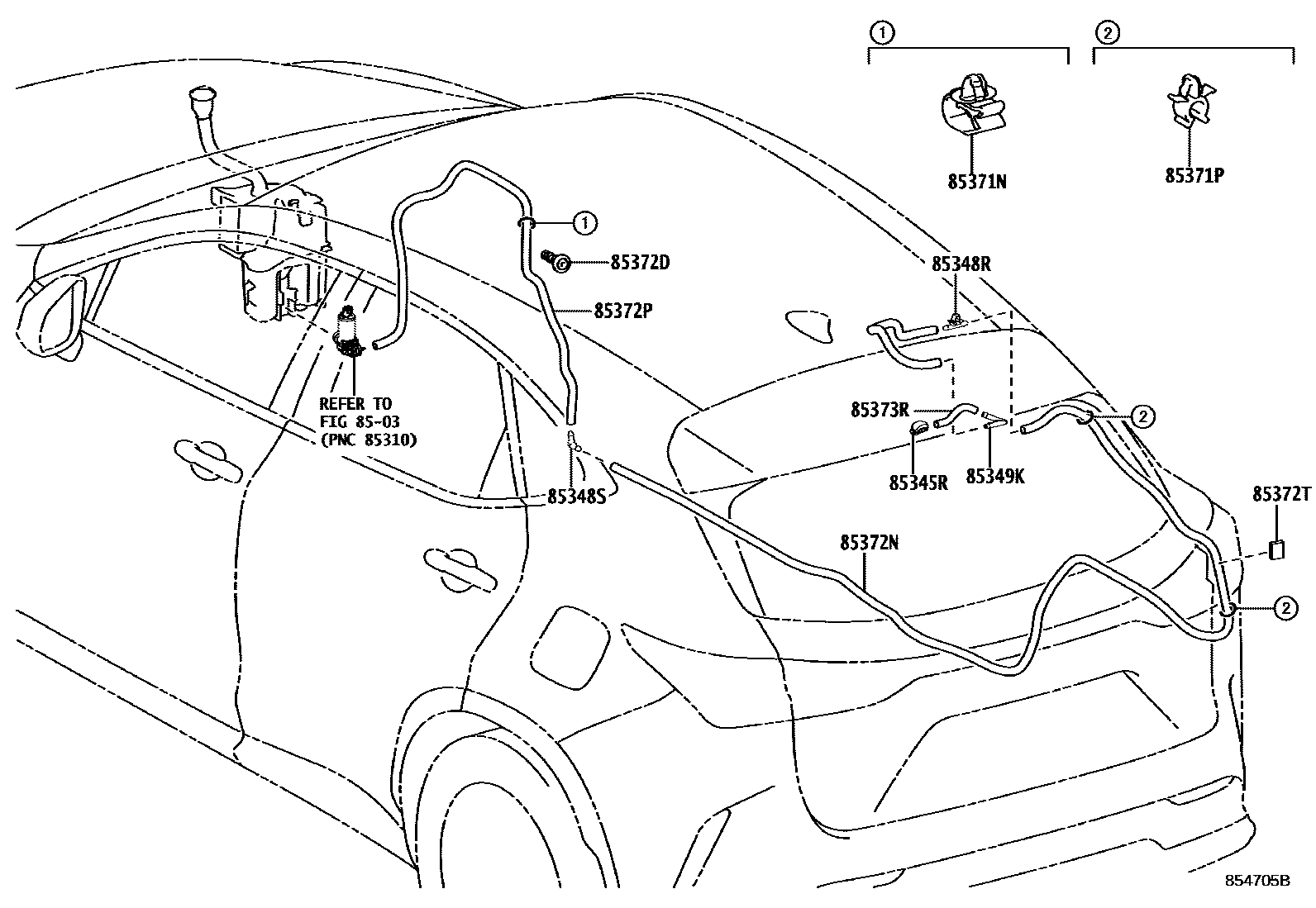

REAR WASHER

8503WINDSHIELD WASHER

→ Go to FIG 85-03

85345RNOZZLE, REAR WASHER

main85391-78020i202111-202403

85348RJOINT, REAR WASHER HOSE, NO.1

main85375-20800i202404-202506

85348SJOINT, REAR WASHER ELBOW, NO.1

main85355-20200i202404

85349KJOINT, REAR WASHER ELBOW, NO.2

main85355-12360i202404

85371NCLAMP, REAR WASHER HOSE

main82711-16790i202404-202506

85371PCLAMP, REAR WASHER HOSE, NO.2

main90469-07011×2i202404-202506

85372DGROMMET, REAR WASHER HOSE

main85379-12850i202404-202506

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90099-62186i202404-202506

L=600; L=600,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM); L=600,COLD AREA SPEC-COLD AREA SPEC; L=600,COLD AREA SPEC-COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

main90099-62256i202404-202506

L=1710; L=1710,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM); L=1710,COLD AREA SPEC-COLD AREA SPEC; L=1710,COLD AREA SPEC-COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)

85372TGROMMET, WASHER

main85379-78060i202404-202506

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90099-62102i202404-202506

L=150; L=150,CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM); L=150,COLD AREA SPEC-COLD AREA SPEC; L=150,COLD AREA SPEC-COLD AREA SPEC&CLEARANCE & BACK SONAR-WITH(PARKING SUPPORT BRAKE & *RCTB *PVM)

12 parts on this diagram · 2 diagrams in section
