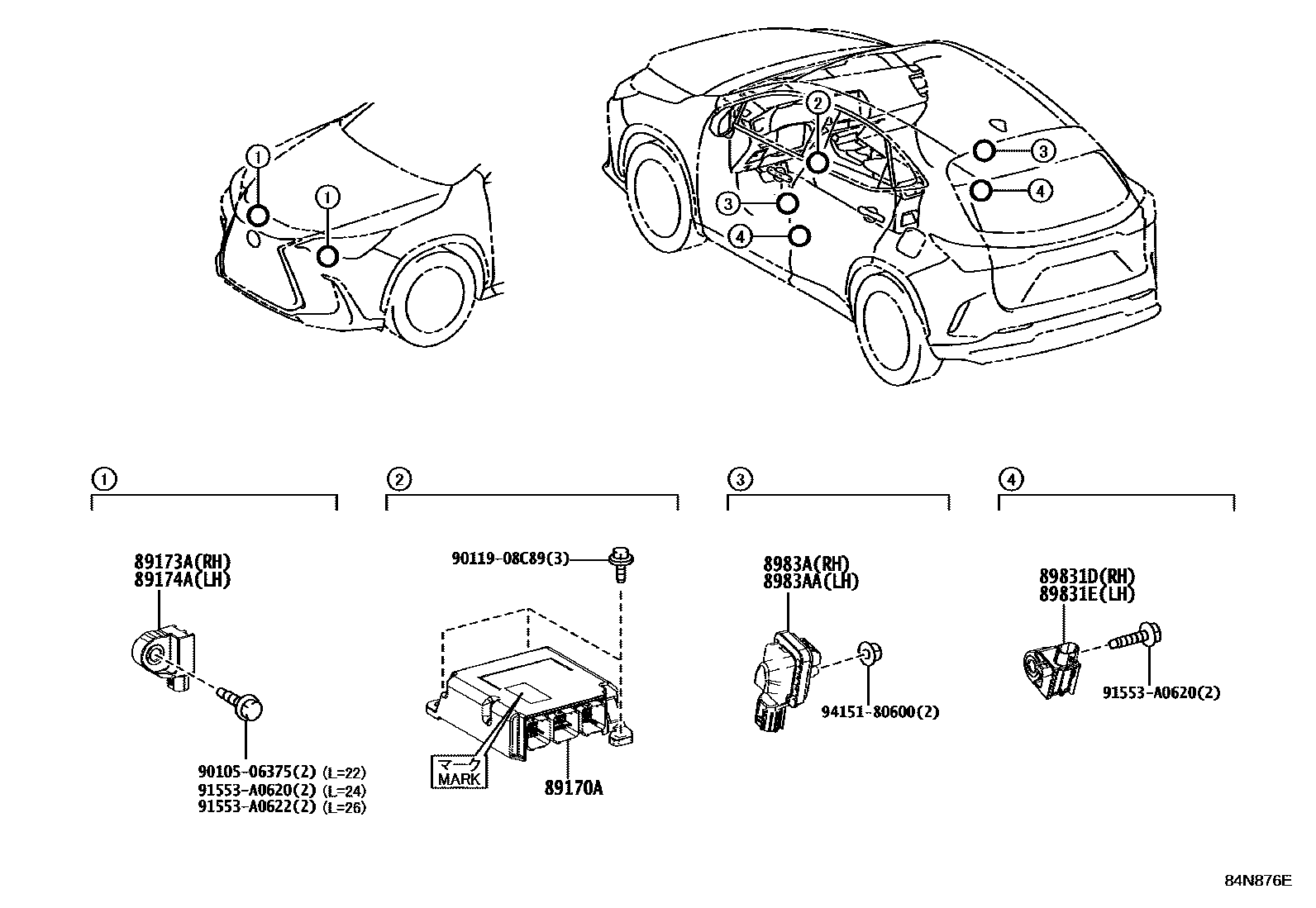

AIR BAG

89170ACOMPUTER ASSY, AIRBAG

main89170-78090iAAZA2#,AAZH2#,TAZA25202111-202303

*614

main89170-78091iAAZA2#,AAZH2#,TAZA25202303-202403

*614

main89170-78340iAAZA2#202404-202506

*614,MARK89170-78340

89173ASENSOR, AIRBAG, FRONT RH

main89173-59415iAAZA2#,AAZH2#,TAZA25202111-202207

main89173-59455iAAZA2#202404-202506

89174ASENSOR, AIRBAG, FRONT LH

main89173-59415iAAZA2#,AAZH2#,TAZA25202111-202207

main89173-59455iAAZA2#202404-202506

89831DSENSOR, FLOOR SIDE AIRBAG, RH

main89831-52100iAAZA2#202404-202506

89831ESENSOR, FLOOR SIDE AIRBAG, LH

main89831-52100iAAZA2#202404-202506

8983ASENSOR, SIDE AIRBAG PRESSURE, RH

main8983A-12030iAAZA2#202404-202506

main8983A-52011iAAZA2#,AAZH2#,TAZA25202111-202403

8983AASENSOR, SIDE AIRBAG PRESSURE, LH

main8983A-12030iAAZA2#202404-202506

main8983A-52011iAAZA2#,AAZH2#,TAZA25202111-202403

9010506375

main90105-06375

9011908C89

main90119-08C89

91553A0620

main91553-A0620

91553A0622

main91553-A0622

9415180600

main94151-80600

12 parts on this diagram · 1 diagram in section
