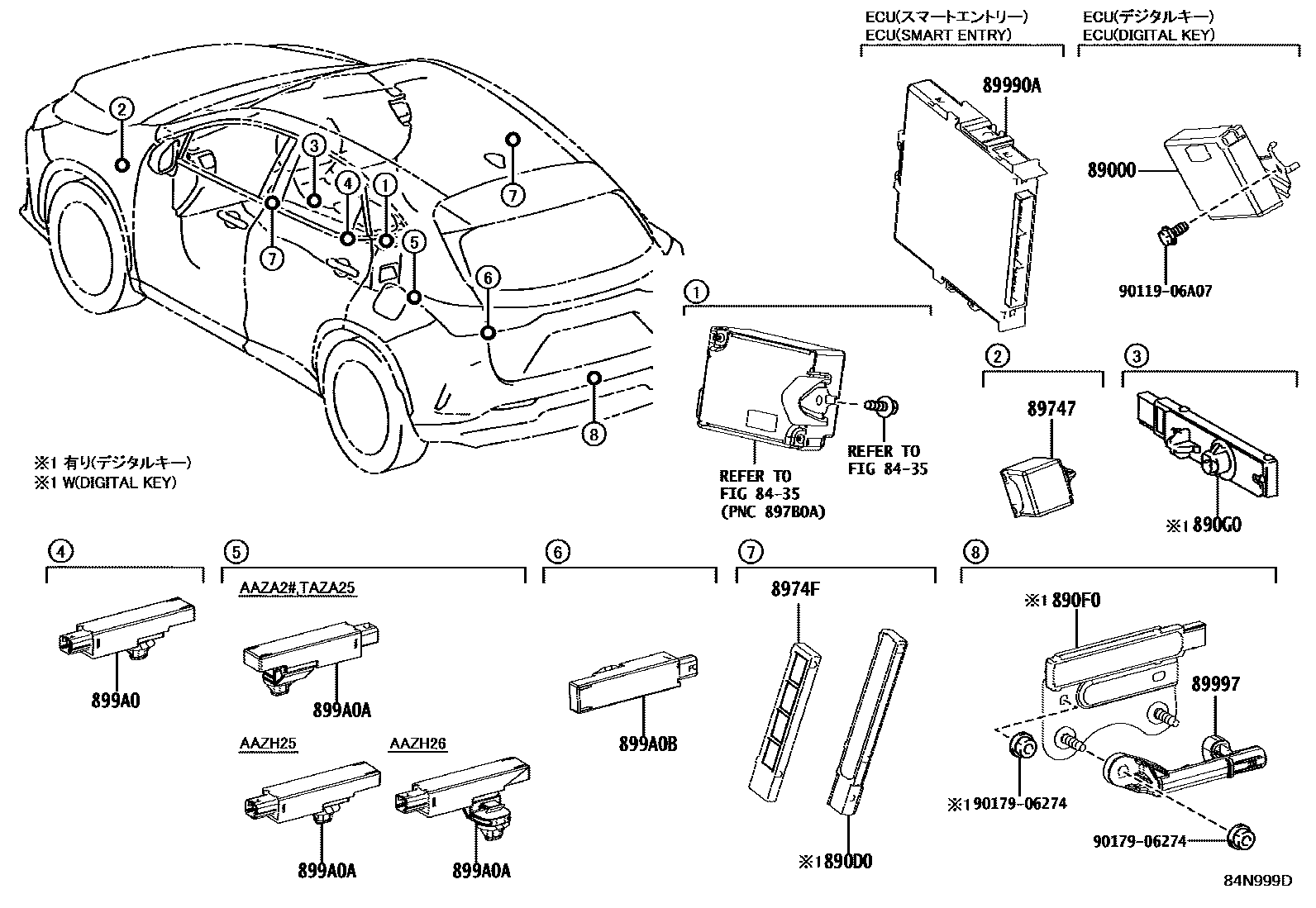

WIRELESS DOOR LOCK

8435TIRE PRESSURE WARNING SYSTEM

→ Go to FIG 84-35

89000COMPUTER ASSY, DIGITAL KEY

main89000-78010i202111-202202

CARD KEY-WITH & W(DIGITAL KEY:DOOR&LUGGAGE&SEAT); CARD KEY-WITHOUT&W(DIGITAL KEY:DOOR&LUGGAGE&SEAT)

main89000-78011i202203-202204

CARD KEY-WITH & W(DIGITAL KEY:DOOR&LUGGAGE&SEAT); CARD KEY-WITHOUT&W(DIGITAL KEY:DOOR&LUGGAGE&SEAT)

main89000-78012i202205-202302

CARD KEY-WITH & W(DIGITAL KEY:DOOR&LUGGAGE&SEAT); CARD KEY-WITHOUT&W(DIGITAL KEY:DOOR&LUGGAGE&SEAT)

main89000-78030i202303-202304

CARD KEY-WITH & W(DIGITAL KEY:DOOR&LUGGAGE&SEAT); CARD KEY-WITHOUT&W(DIGITAL KEY:DOOR&LUGGAGE&SEAT)

main89000-78031i202304-202308

CARD KEY-WITH & W(DIGITAL KEY:DOOR&LUGGAGE&SEAT); CARD KEY-WITHOUT&W(DIGITAL KEY:DOOR&LUGGAGE&SEAT)

main89000-78080i202309-202403

CARD KEY-WITH & W(DIGITAL KEY:DOOR&LUGGAGE&SEAT); CARD KEY-WITHOUT&W(DIGITAL KEY:DOOR&LUGGAGE&SEAT)

890D0RECEIVER ASSY, BLE DOOR DIGITAL KEY

main890D0-78010×2i202404-202506

CARD KEY-WITH & WITH(DIGITAL KEY); CARD KEY-WITHOUT&WITH(DIGITAL KEY)

890F0RECEIVER ASSY, BLE LUGGAGE DIGITAL KEY

main890F0-78010i202404-202506

CARD KEY-WITH & WITH(DIGITAL KEY); CARD KEY-WITHOUT&WITH(DIGITAL KEY)

890G0RECEIVER ASSY, BLE INDOOR DIGITAL KEY

main890G0-78010i202111-202403

CARD KEY-WITH & W(DIGITAL KEY:DOOR&LUGGAGE&SEAT); CARD KEY-WITHOUT&W(DIGITAL KEY:DOOR&LUGGAGE&SEAT)

89747BUZZER, WIRELESS DOOR LOCK

main89747-30040i202404-202506

8974FCASE, W/O DIGITAL KEY

main8974F-78010×2i202404-202506

89990ACOMPUTER ASSY, SMART KEY

main899H0-78010i202111-202303

main899H0-78030i202111-202303

main899H0-78070i202303-202403

main899H0-78090i202303-202403

main899H0-78170i202404

main899H0-78180i202404

89997ANTENNA, ELECTRICAL KEY

main89997-30100i202404-202506

899A0ANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.1

main899A0-12130i202404-202506

899A0AANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.2

main899A0-12130i202111-202403

main899A0-42030i202404

899A0BANTENNA ASSY, INDOOR ELECTRICAL KEY, NO.3

main899A0-12130i202404-202506

9011906A07

main90119-06A07

9017906274

main90179-06274

14 parts on this diagram · 1 diagram in section
