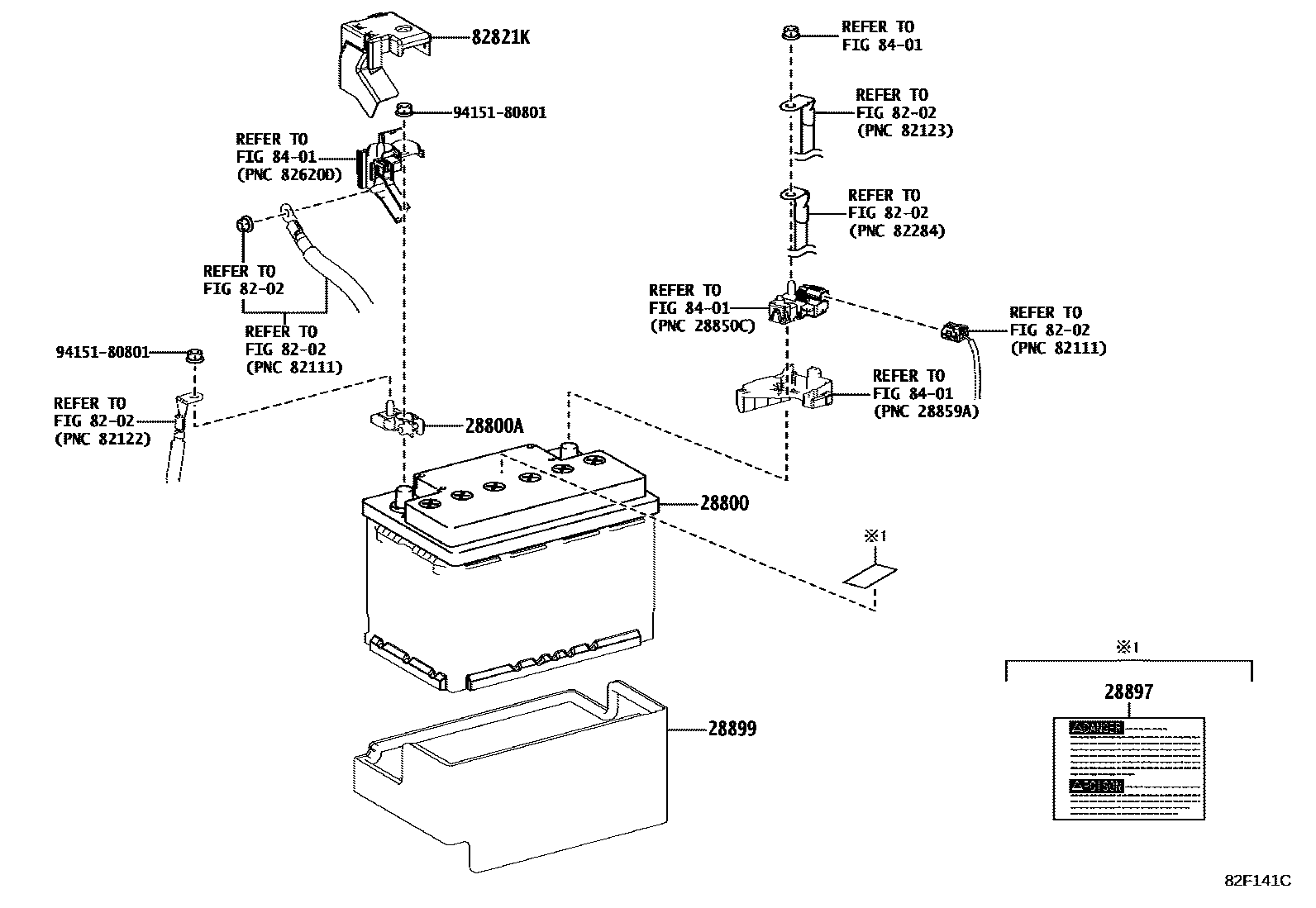

BATTERY & BATTERY CABLE

0001 112V BATTERY 0002 112V BATTERY 0003 1HV BATTERY 1/2 0004 1HV BATTERY 2/2 0005 1HV BATTERY 1/5 0006 1HV BATTERY 2/5 0007 1HV BATTERY 3/5 0008 1HV BATTERY 4/5 0009 1HV BATTERY 5/5

28800BATTERY

main28800-25050iA25AFKS,T24AFTS..AAZA2#,TAZA25202111-202206

LN3

main28800-25051iA25AFKS,T24AFTS..AAZA2#,TAZA25202207-202403

LN3

main28800-25052iT24AFTS..TAZA25202404

LN3

main28800-31570iA25AFXS..AAZH2#202111-202206

LN2

main28800-31571iA25AFXS..AAZH2#202207-202302

LN2

main28800-31572iA25AFXS..AAZH2#202303-202403

LN2

main28800-31573iA25AFXS..AAZH2#202404

LN2

28800ATERMINAL, BATTERY POSITIVE

main82671-78010iA25AFKS..AAZA2#202404-202506

28897PLATE, BATTERY CAUTION

main28898-20020iA25AFXS..AAZH2#202111-202303

main28897-24020iA25AFKS..AAZA25202404-202506

CANADA SPEC

28899INSULATOR, BATTERY

main28899-25050iA25AFKS,T24AFTS..AAZA2#,TAZA25202111-202403

8202WIRING & CLAMP

→ Go to FIG 82-02

82821KCOVER, CONNECTOR

main82821-78120iAAZA2#202404-202506

main82821-78140iAAZH2#202111-202403

9415180801

main94151-80801

7 parts on this diagram · 9 diagrams in section
