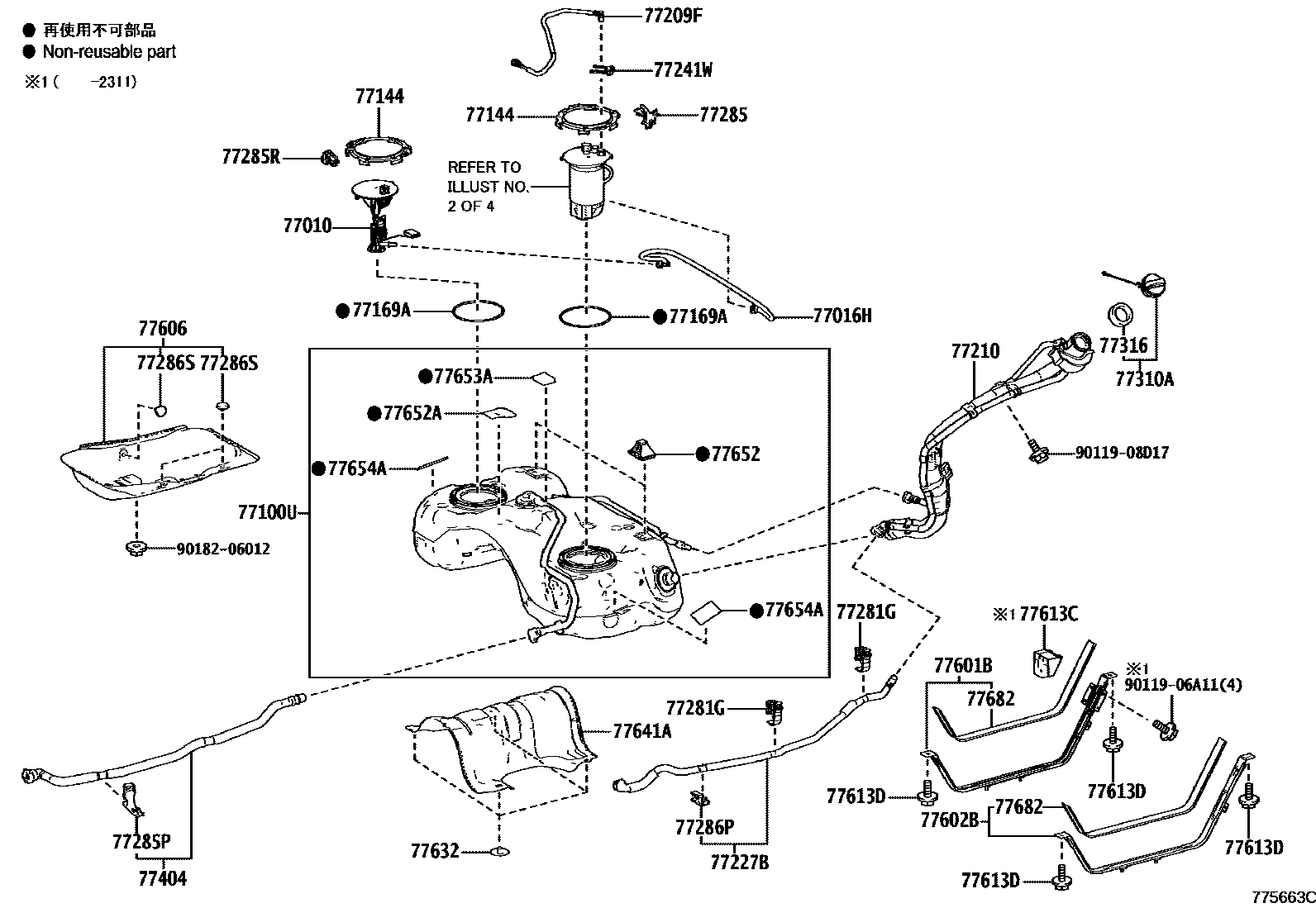

FUEL TANK & TUBE
77010TUBE ASSY, FUEL TANK VENT
77016HTUBE SUB-ASSY, FUEL RETURN VENT
77100UTANK SUB-ASSY, FUEL
77144RETAINER, FUEL PUMP GAUGE
77169AGASKET, FUEL SUCTION TUBE SET
77209FTUBE SUB-ASSY, FUEL TANK MAIN
77210PIPE ASSY, FUEL TANK FILLER
77227BTUBE, FUEL TANK BREATHER, NO.7
NO.1
NO.2
77241WCLIP, TUBE JOINT
77281GCLAMP, FUEL HOSE
77285BRACKET, FUEL TUBE
77285PCLAMP, NO.1(FOR CHARCOAL CANISTER PIPE)
77286PCLAMP, FUEL TUBE, NO.8
77286SCUSHION, FUEL TANK PROTECTOR
77310ACAP ASSY, FUEL TANK
77316GASKET, FUEL TANK CAP
77404HOSE SUB-ASSY, FUEL TANK VENT
77601BBAND SUB-ASSY, FUEL TANK, NO.1 RH
77602BBAND SUB-ASSY, FUEL TANK, NO.1 LH
77606PROTECTOR SUB-ASSY, FUEL TANK, NO.1
77613CBAND, FUEL TANK, NO.3
77613DBOLT, FUEL TANK BAND SET, NO.2
77632BRACKET, FUEL TANK, NO.2
77641APROTECTOR, FUEL TANK, NO.1
77652CUSHION, FUEL TANK, NO.1
77653ACUSHION, FUEL TANK, NO.3
77654ACUSHION, FUEL TANK, NO.4
9011906A11
main90119-06A11
9011908D17
main90119-08D17
9018206012
main90182-06012
33 parts on this diagram · 11 diagrams in section
