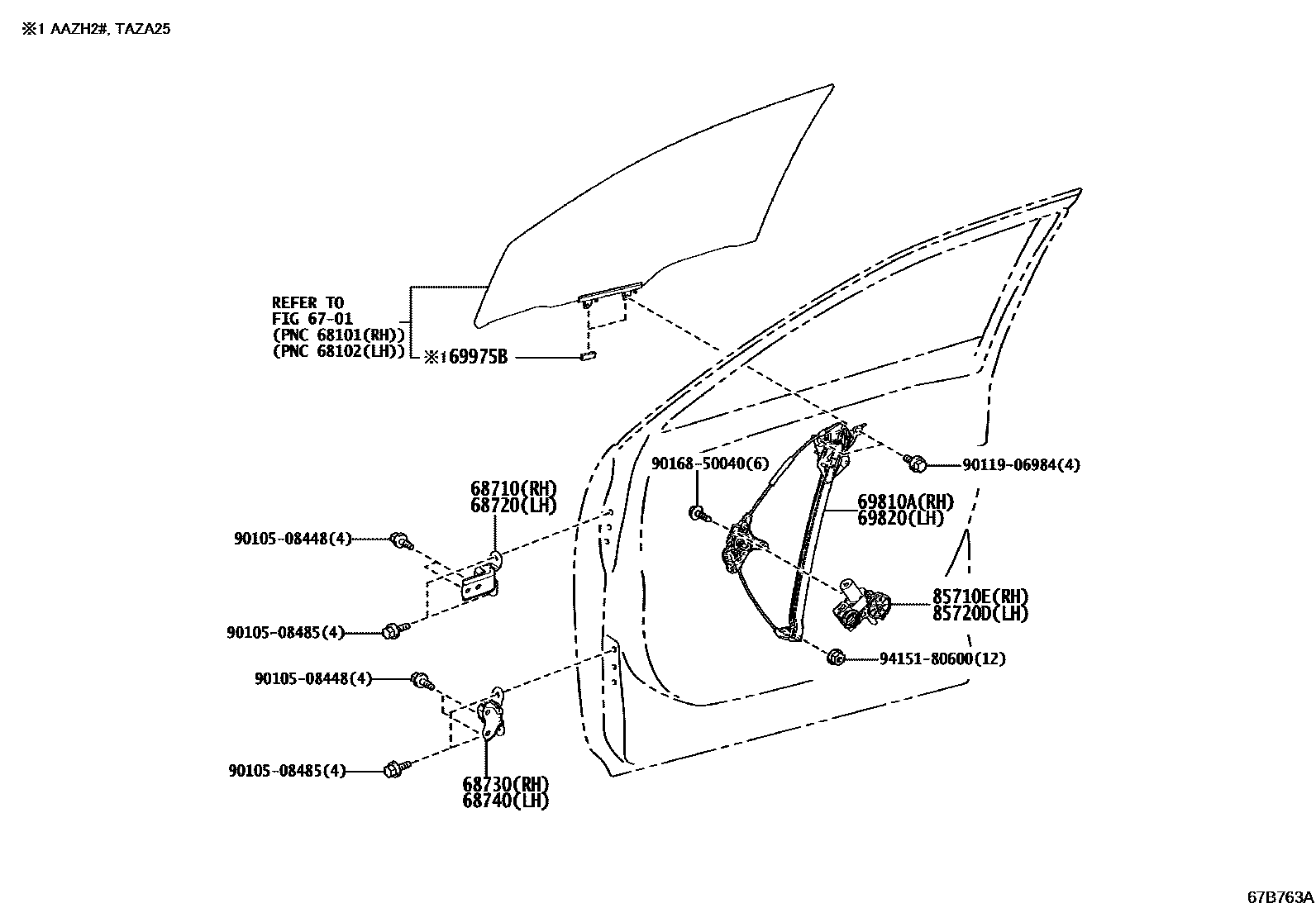

FRONT DOOR WINDOW REGULATOR & HINGE

6701FRONT DOOR PANEL & GLASS

→ Go to FIG 67-01

68710HINGE ASSY, FRONT DOOR, UPPER RH

main68710-12151iAAZA2#,AAZH2#,TAZA25202111-202403

68720HINGE ASSY, FRONT DOOR, UPPER LH

main68720-12151iAAZH2#,TAZA25202404

68730HINGE ASSY, FRONT DOOR, LOWER RH

main68730-12120iAAZA2#,AAZH2#,TAZA25202111-202403

68740HINGE ASSY, FRONT DOOR, LOWER LH

main68740-12120iAAZA2#202404-202506

69810AREGULATOR ASSY, FRONT DOOR WINDOW, RH

main69801-78030iAAZA2#,AAZH2#,TAZA25202111-202306

TMK PLANT

main69801-78040iAAZA2#,AAZH2#,TAZA25202308-202403

TAHARA PLANT

69820REGULATOR ASSY, FRONT DOOR WINDOW, LH

main69802-78030iAAZA2#,AAZH2#,TAZA25202111-202306

TMK PLANT

main69802-78040iAAZH2#,TAZA25202404

69975BFILLER, FRONT DOOR GLASS CHANNEL

main69975-50030×4iAAZH2#,TAZA25202404

85710EMOTOR ASSY, POWER WINDOW REGULATOR, RH

main85710-78030iAAZA2#202404-202506

85720DMOTOR ASSY, POWER WINDOW REGULATOR, LH

main85720-78030iAAZA2#202404-202506

9010508448

main90105-08448

9010508485

main90105-08485

9011906984

main90119-06984

9016850040

main90168-50040

9415180600

main94151-80600

15 parts on this diagram · 1 diagram in section
