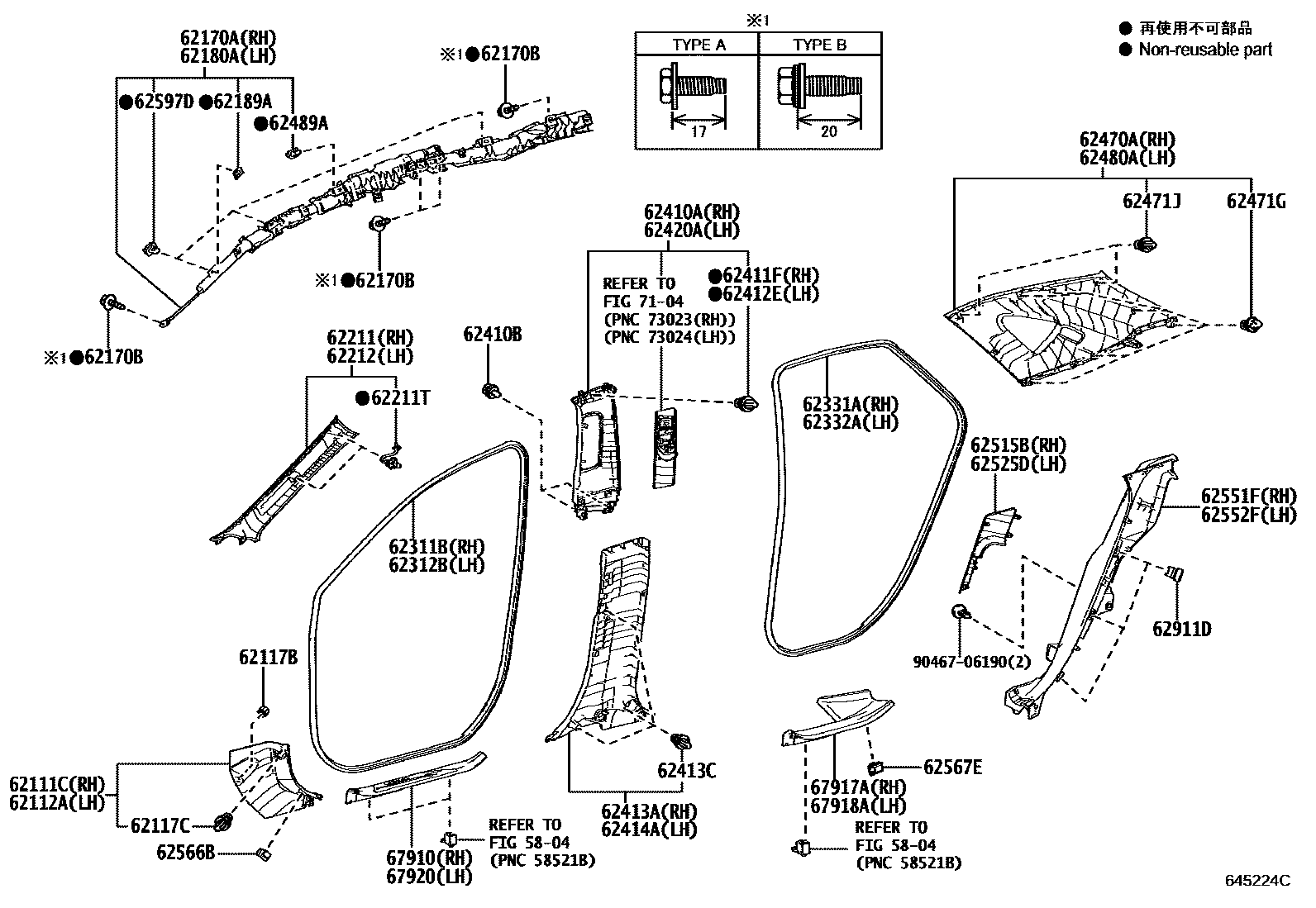

INSIDE TRIM BOARD & DOOR OPENING TRIM MOULDING
5804
62111CBOARD, COWL SIDE TRIM, RH
BLACK,TRIM0#,2#,3#,4#
62112ATRIM SUB-ASSY, COWL SIDE, LH
BLACK,TRIM0#,2#,3#,4#
62117BCLIP, NO.1(FOR COWL SIDE TRIM)
62117CCLIP, NO.2(FOR COWL SIDE TRIM)
62170AAIRBAG ASSY, CURTAIN SHIELD, RH
MOON ROOF-WITHOUT
MOON ROOF-WITH(PANORAMA ROOF(UV & IR CUT GLASS))
MOON ROOF-WITH
62170BBOLT, W/WASHER
TYPE A:REFER ILLUST.
TYPE B:REFER ILLUST.
62180AAIRBAG ASSY, CURTAIN SHIELD, LH
MOON ROOF-WITHOUT
MOON ROOF-WITH(PANORAMA ROOF(UV & IR CUT GLASS))
MOON ROOF-WITH
62189ASPACER, CURTAIN SHIELD AIRBAG CLIP
62211GARNISH, FRONT PILLAR, RH
LWHITE,TRIM2#
LWHITE,TRIM20,21,22
FROMAGE,TRIM00,01,20,21,22
FROMAGE,TRIM00,01,20,21
FROMAGE,TRIM00,01,2#
BLACK,TRIM00,01,03,23,3#,43
BLACK,TRIM00,01,02,3#
BLACK,TRIM00,01,02,03,23,3#,43
BLACK,TRIM00,01,02,23,3#
BLACK,TRIM0#,23,24,3#
BLACK,TRIM0#,3#
HAZEL,TRIM40,41,43
HAZEL,TRIM4#
HAZEL,TRIM40,41,42,43
62211TCLIP(FOR FRONT PILLAR GARNISH)
62212GARNISH, FRONT PILLAR, LH
LWHITE,TRIM20,21,22
LWHITE,TRIM2#
FROMAGE,TRIM00,01,2#
FROMAGE,TRIM00,01,20,21
FROMAGE,TRIM00,01,20,21,22
BLACK,TRIM00,01,02,03,23,3#,43
BLACK,TRIM00,01,03,23,3#,43
BLACK,TRIM00,01,02,23,3#
BLACK,TRIM0#,23,24,3#
BLACK,TRIM0#,3#
BLACK,TRIM00,01,02,3#
HAZEL,TRIM40,41,42,43
HAZEL,TRIM4#
HAZEL,TRIM40,41,43
62311BWEATHERSTRIP, FRONT DOOR OPENING TRIM, RH
62312BWEATHERSTRIP, FRONT DOOR OPENING TRIM, LH
62331AWEATHERSTRIP, REAR DOOR OPENING TRIM, RH
62332AWEATHERSTRIP, REAR DOOR OPENING TRIM, LH
62410AGARNISH ASSY, CENTER PILLAR, RH
LWHITE/WHITE/ECRU,TRIM20,21,22
LWHITE/WHITE/ECRU,TRIM2#
FROMAGE/IVORY/FROMAGE,TRIM00,01,20,21,22
FROMAGE/IVORY/FROMAGE,TRIM00,01,20,21
FROMAGE/IVORY/FROMAGE,TRIM00,01,2#
BLACK/BLACK/CHARCOAL,TRIM00,01,02,03,23,3#,43
BLACK/BLACK/CHARCOAL,TRIM00,01,03,23,3#,43
BLACK/BLACK/CHARCOAL,TRIM00,01,02,23,3#
BLACK/BLACK/CHARCOAL,TRIM0#,23,24,3#
BLACK/BLACK/CHARCOAL,TRIM0#,3#
BLACK/BLACK/CHARCOAL,TRIM00,01,02,3#
HAZEL/HAZEL/CHRCOAL,TRIM40,41,42,43
HAZEL/HAZEL/CHRCOAL,TRIM4#
HAZEL/HAZEL/CHRCOAL,TRIM40,41,43
62410BCLIP
62411FCLIP, CENTER PILLAR GARNISH, RH
62412ECLIP, CENTER PILLAR GARNISH, LH
62413AGARNISH, CENTER PILLAR, LOWER RH
BLACK,TRIM0#,2#,3#,4#
62413CCLIP (FOR CENTER LOWER GARNISH)
62414AGARNISH, CENTER PILLAR, LOWER LH
BLACK,TRIM0#,2#,3#,4#
62420AGARNISH ASSY, CENTER PILLER, LH
LWHITE/WHITE/ECRU,TRIM20,21,22
LWHITE/WHITE/ECRU,TRIM2#
FROMAGE/IVORY/FROMAGE,TRIM00,01,20,21
FROMAGE/IVORY/FROMAGE,TRIM00,01,2#
FROMAGE/IVORY/FROMAGE,TRIM00,01,20,21,22
BLACK/BLACK/CHARCOAL,TRIM0#,3#
BLACK/BLACK/CHARCOAL,TRIM0#,23,24,3#
BLACK/BLACK/CHARCOAL,TRIM00,01,02,3#
BLACK/BLACK/CHARCOAL,TRIM00,01,02,03,23,3#,43
BLACK/BLACK/CHARCOAL,TRIM00,01,03,23,3#,43
BLACK/BLACK/CHARCOAL,TRIM00,01,02,23,3#
HAZEL/HAZEL/CHRCOAL,TRIM40,41,43
HAZEL/HAZEL/CHRCOAL,TRIM4#
HAZEL/HAZEL/CHRCOAL,TRIM40,41,42,43
62470AGARNISH ASSY, ROOF SIDE, INNER RH
WHITE,TRIM2#
WHITE,TRIM20,21,22
FROMAGE,TRIM00,01,20,21
FROMAGE,TRIM00,01,20,21,22
FROMAGE,TRIM00,01,2#
BLACK,TRIM00,01,02,23,3#
BLACK,TRIM00,01,02,03,23,3#,43
BLACK,TRIM00,01,03,23,3#,43
BLACK,TRIM0#,23,24,3#
BLACK,TRIM0#,3#
BLACK,TRIM00,01,02,3#
HAZEL,TRIM40,41,43
HAZEL,TRIM4#
HAZEL,TRIM40,41,42,43
62471GCLIP, ROOF SIDE INNER GARNISH
62471JCLIP (FOR ROOF SIDE GARNISH)
62480AGARNISH ASSY, ROOF SIDE, INNER LH
WHITE,TRIM2#
WHITE,TRIM20,21,22
FROMAGE,TRIM00,01,20,21
FROMAGE,TRIM00,01,2#
FROMAGE,TRIM00,01,20,21,22
BLACK,TRIM00,01,02,23,3#
BLACK,TRIM00,01,03,23,3#,43
BLACK,TRIM00,01,02,03,23,3#,43
BLACK,TRIM0#,23,24,3#
BLACK,TRIM0#,3#
BLACK,TRIM00,01,02,3#
HAZEL,TRIM40,41,43
HAZEL,TRIM4#
HAZEL,TRIM40,41,42,43
62489ACLIP, ROOF SIDE INNER GARNISH
62515BCOVER, SIDE TRIM BASE, NO.1 RH
BLACK,TRIM0#,2#,3#,4#
62525DCOVER, SIDE TRIM BASE, NO.1 LH
BLACK,TRIM0#,2#,3#,4#
62551FGARNISH, REAR SEAT SIDE, RH
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,2#,3#,4#
62552FGARNISH, REAR SEAT SIDE, LH
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,2#,3#,4#
62566BCLAMP, ROCKER PANEL INNER PROTECTER, NO.1
62567ECLAMP, ROCKER PANEL INNER PROTECTOR, NO.2
62597DCLIP
62911DHOOK, SIDE WINDOW LOCK
67910PLATE ASSY, DOOR SCUFF, RH
"VERSION L"*(L),BLACK,TRIM0#,2#,3#,4#
PREMIUM PACKAGE,BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,2#,3#,4#
PREMIUM PACKAGE,BLACK,TRIM0#,2#,3#,4#
"VERSION L"*(L),BLACK,TRIM0#,2#,3#,4#
"F SPORT"*(F),BLACK,TRIM0#,2#,3#
BLACK,TRIM2#,3#
"F SPORT"*(F),BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM2#,3#
"F SPORT"*(F),BLACK,TRIM0#,2#,3#,4#
67917APLATE, REAR DOOR SCUFF, RH
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,2#,3#,4#
67918APLATE, REAR DOOR SCUFF, LH
BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,2#,3#,4#
67920PLATE ASSY, DOOR SCUFF, LH
BLACK,TRIM0#,2#,3#,4#
PREMIUM PACKAGE,BLACK,TRIM0#,2#,3#,4#
"VERSION L"*(L),BLACK,TRIM0#,2#,3#,4#
"VERSION L"*(L),BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM0#,2#,3#,4#
PREMIUM PACKAGE,BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM2#,3#
"F SPORT"*(F),BLACK,TRIM0#,2#,3#,4#
"F SPORT"*(F),BLACK,TRIM0#,2#,3#
"F SPORT"*(F),BLACK,TRIM0#,2#,3#,4#
BLACK,TRIM2#,3#
7104
9046706190
main90467-06190
43 parts on this diagram · 4 diagrams in section
