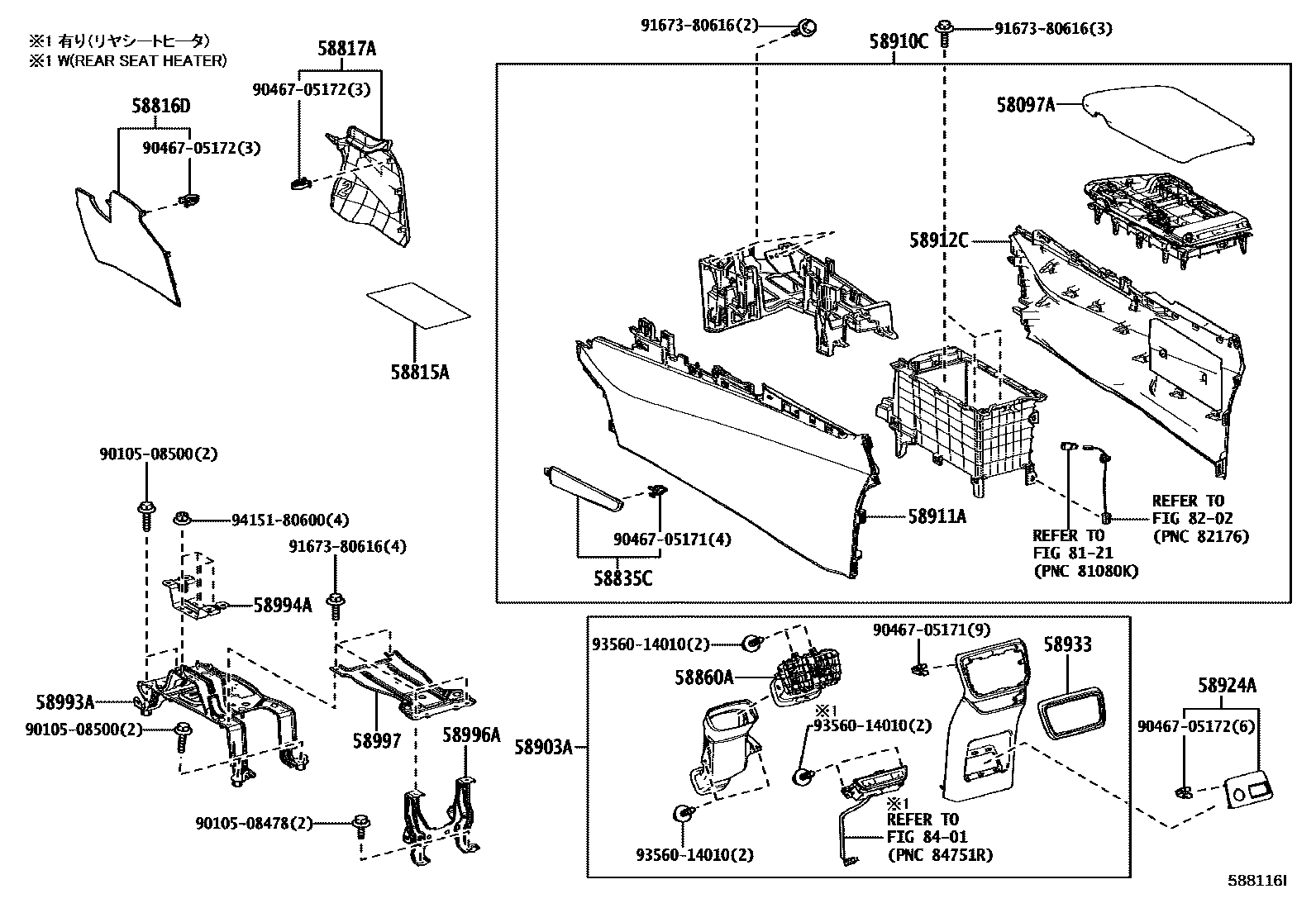

CONSOLE BOX & BRACKET
58097ACOVER SUB-ASSY, CONSOLE COMPARTMENT DOOR, INNER
WHITE/LT.GRAY,TRIM03
RICH CREAM/ORANGE,TRIM0#; RICH CREAM/ORANGE,TRIM00,01,02
FROMAGE/SHELL,TRIM0#; FROMAGE/SHELL,TRIM00,01
BLACK/LT.GRAY,TRIM2#
FLARE RED/RED,TRIM33
DK.ROSE/RED,TRIM30,31; DK.ROSE/RED,TRIM30,31,32
HAZEL/HAZEL,TRIM4#
58815ACARPET, CONSOLE BOX
58816DINSERT, CONSOLE BOX, FRONT NO.1
BLACK,TRIM0#,2#,3#,4#
58817AINSERT, CONSOLE BOX, FRONT NO.2
BLACK,TRIM0#,2#,3#,4#
58835CORNAMENT, CONSOLE BOX
WHITE,TRIM03
RICH CREAM,TRIM0#; RICH CREAM,TRIM00,01,02
FROMAGE,TRIM0#; FROMAGE,TRIM00,01
BLACK,TRIM2#
FLARE RED,TRIM33
DK.ROSE,TRIM30,31; DK.ROSE,TRIM30,31,32
HAZEL,TRIM4#
58860AREGISTER ASSY, CONSOLE BOX
58903APANEL SUB-ASSY, CONSOLE REAR END
BLACK,TRIM0#,2#,3#,4#
CANADA SPEC,BLACK,TRIM0#,2#,3#,4#; KOREA SPEC,BLACK,TRIM0#,2#,3#,4#; SEAT HEATER-WITH(*DRP & *RES),BLACK,TRIM0#,2#,3#,4#
58910CBOX ASSY, CONSOLE, REAR
BLACK/WHITE/LT.GRAY,TRIM03,04
BLACK/CREAM/ORANGE,TRIM0#; BLACK/CREAM/ORANGE,TRIM00,01,02
BLACK/BLACK/LT.GRAY,TRIM2#
BLACK/RED/RED,TRIM33,34
BLACK/HAZEL/HAZEL,TRIM4#
BLACK/DK.ROSE/RED,TRIM3#; BLACK/DK.ROSE/RED,TRIM30,31,32
BLACK/WHITE/LT.GRAY,TRIM03
BLACK/RICH CREAM/ORANGE,TRIM0#; BLACK/RICH CREAM/ORANGE,TRIM00,01; BLACK/RICH CREAM/ORANGE,TRIM00,01,02
BLACK/BLACK/LT.GRAY,TRIM2#
BLACK/FLARE RED/RED,TRIM33
BLACK/HAZEL/HAZEL,TRIM4#
BLACK/DK.ROSE/RED,TRIM3#; BLACK/DK.ROSE/RED,TRIM30,31; BLACK/DK.ROSE/RED,TRIM30,31,32
BLACK/FROMAGE/SHELL,TRIM0#; BLACK/FROMAGE/SHELL,TRIM00,01
58911APANEL, BOX SIDE, NO.1
BLACK,TRIM0#,2#,3#,4#
58912CPANEL, BOX SIDE, NO.2
BLACK,TRIM0#,2#,3#,4#
58924APANEL, CONSOLE REAR END, NO.2
BLACK,TRIM0#,2#,3#,4#
58933GARNISH, CONSOLE REAR END PANEL
58993ABRACKET, CONSOLE BOX MOUNTING, LOWER
58994ABRACKET, CONSOLE BOX MOUNTING, NO.4
58996ABRACKET, CONSOLE BOX MOUNTING, NO.2
58997BRACKET, CONSOLE BOX MOUNTING, NO.3
8121INTERIOR LAMP
8202WIRING & CLAMP
8401SWITCH & RELAY & COMPUTER
9010508478
main90105-08478
9010508500
main90105-08500
9046705171
main90467-05171
9046705172
main90467-05172
9167380616
main91673-80616
9356014010
main93560-14010
9415180600
main94151-80600
26 parts on this diagram · 4 diagrams in section
