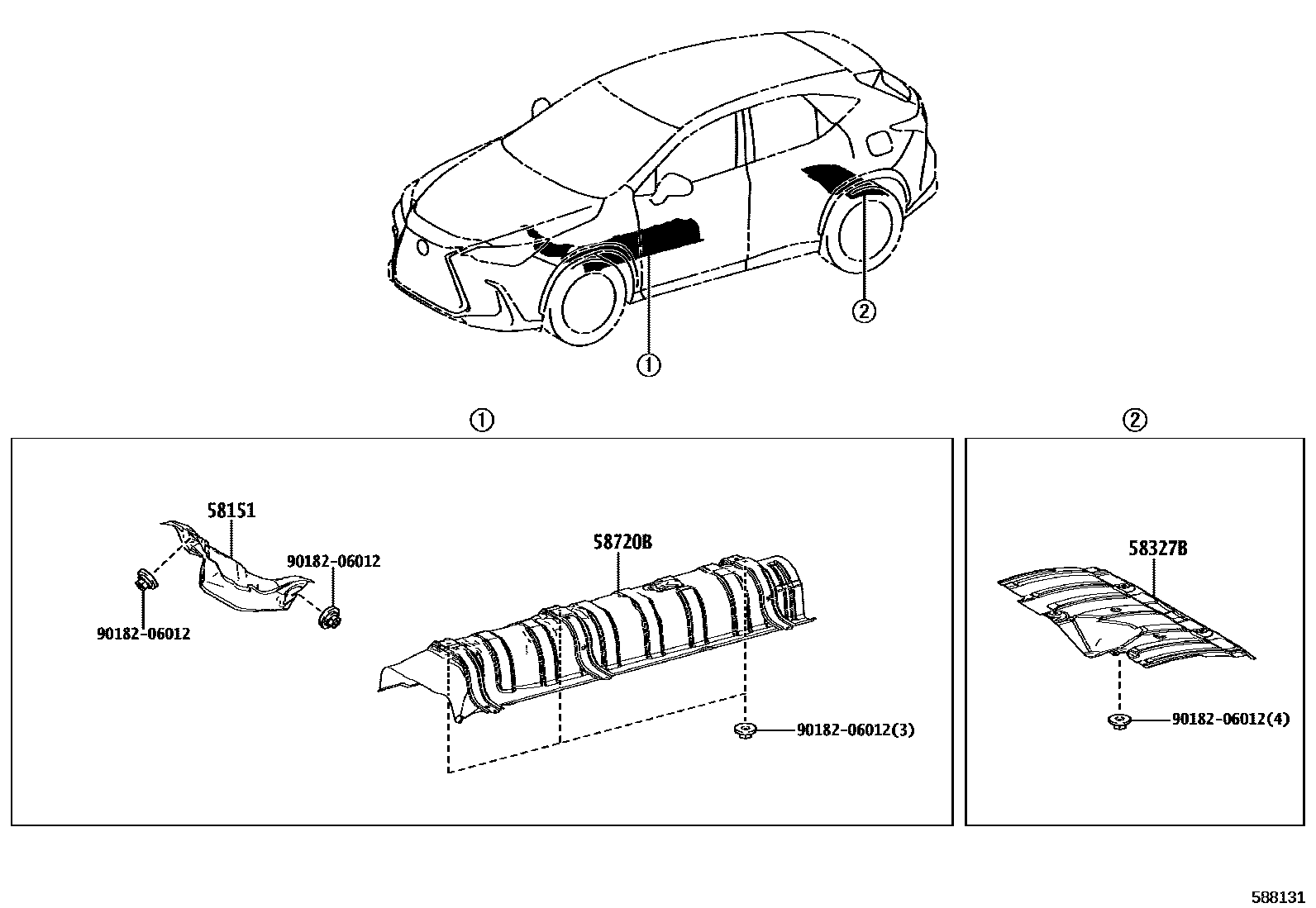

FLOOR INSULATOR

0001 1 0002 1 0003 1 0004 1

58151INSULATOR, FRONT FLOOR HEAT, NO.1

main58151-42060iAAZH25202404

main58151-42070iAAZH26202111-202403

main58151-78010iTAZA25202111-202403

58327BINSULATOR, MAIN MUFFLER HEAT

main58327-42040iAAZH26202111-202403

main58327-78070iAAZH25,TAZA25202404

58720BCOVER ASSY, ENGINE SERVICE

main58720-42010iAAZA2#202111-202303

main58720-78010iTAZA25202404

main58720-78020iAAZA2#202303-202403

9018206012

main90182-06012

4 parts on this diagram · 4 diagrams in section
