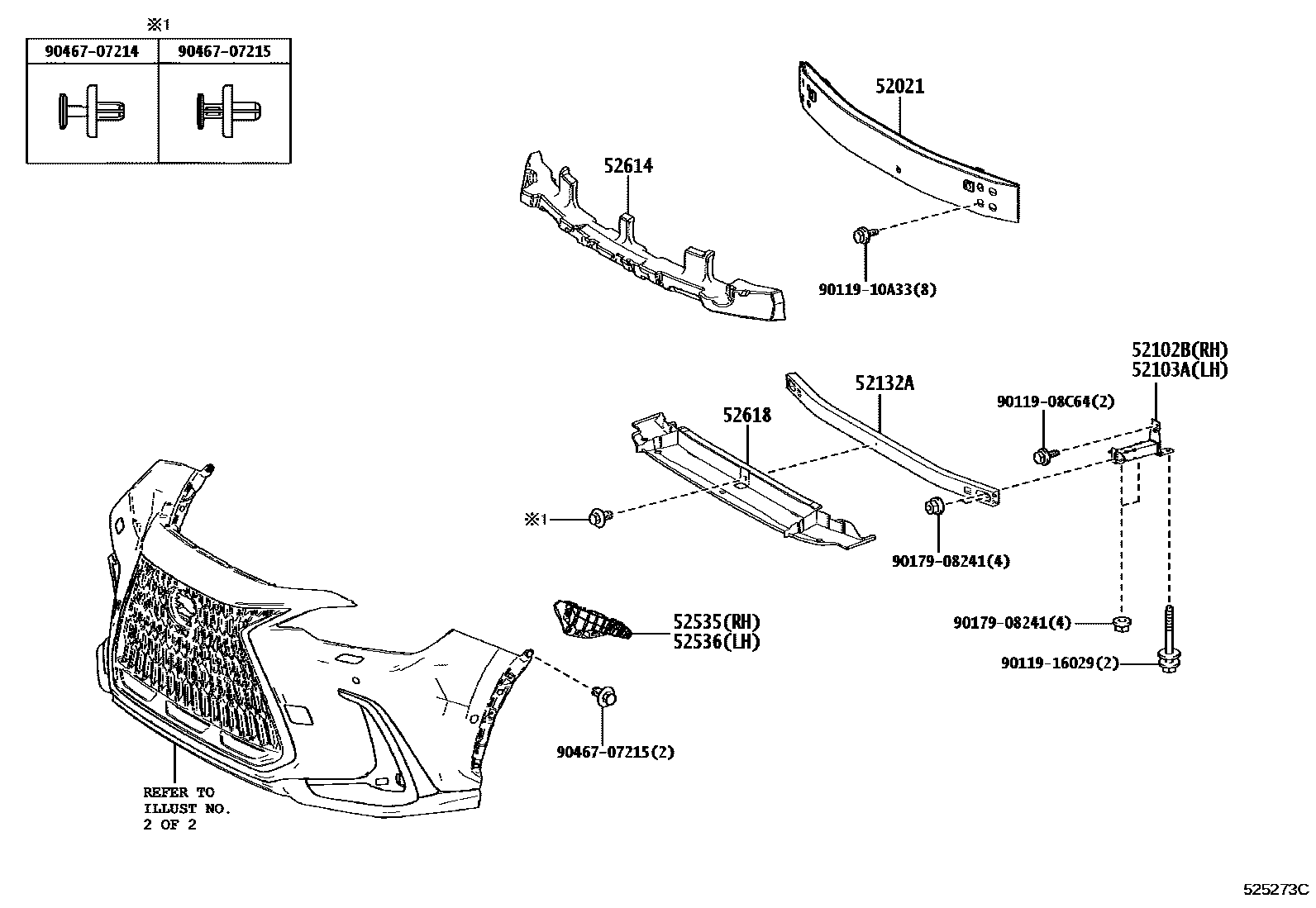

FRONT BUMPER & BUMPER STAY

0001 1 0002 1 0003 1F SPORT 0004 1F SPORT

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-78010iAAZA2#202404-202506

52102BEXTENSION SUB-ASSY, FRONT BUMPER, RH

main52102-42100iAAZA2#,AAZH2#,TAZA25202111-202403

52103AEXTENSION SUB-ASSY, FRONT BUMPER, LH

main52103-42100iAAZA2#202404-202506

52132AREINFORCEMENT, FRONT BUMPER, NO.2

main52132-42070iAAZA2#202404-202506

52535RETAINER, FRONT BUMPER SIDE, RH

main52535-78020iAAZA2#202404-202506

NO PAINT REQ.

52536RETAINER, FRONT BUMPER SIDE, LH

main52536-78020iAAZA2#202404-202506

NO PAINT REQ.

52614ABSORBER, FRONT BUMPER ENERGY, NO.2

main52614-78070iAAZA2#202404-202506

52618ABSORBER, FRONT BUMPER, LOWER

main52618-78020iAAZA2#202404-202506

9011908C64

main90119-08C64

9011910A33

main90119-10A33

9011916029

main90119-16029

9017908241

main90179-08241

9046707214

main90467-07214

9046707215

main90467-07215

14 parts on this diagram · 4 diagrams in section
