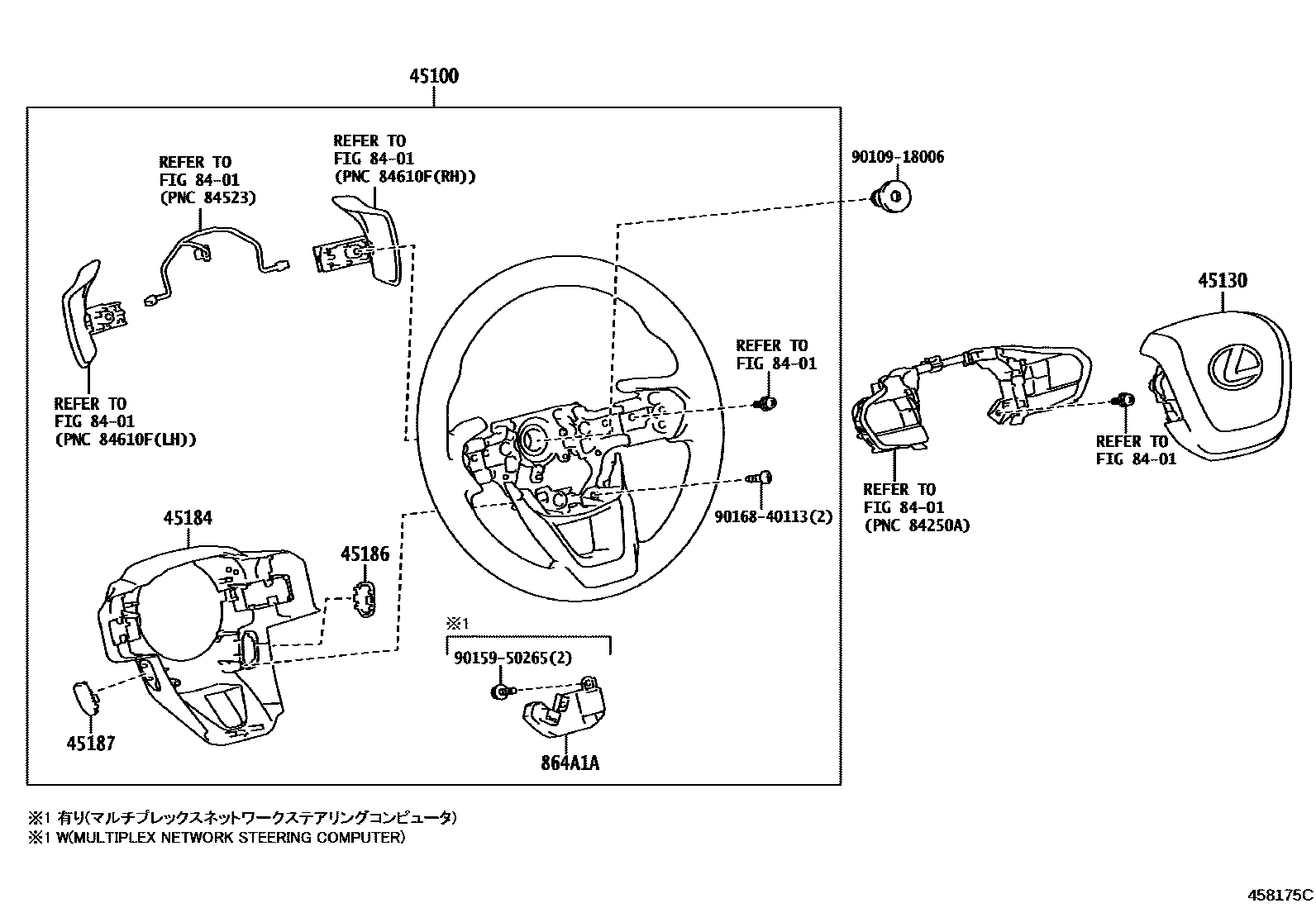

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-78090-C0i202111-202207

3-SPOKE,LEATHER,BLACK,TRIM2#,3#,4#; 3-SPOKE,LEATHER,STEERING WHEEL-LEATHER, WITH(PADDLE SWITCH),BLACK,TRIM2#,3#,4#

main45100-78090-C1i202111-202210

3-SPOKE,LEATHER,BLACK,TRIM0#; 3-SPOKE,LEATHER,STEERING WHEEL-LEATHER, WITH(PADDLE SWITCH),BLACK,TRIM0#

main45100-78100-C0i202111-202209

3-SPOKE,LEATHER,BLACK,TRIM2#,3#,4#; 3-SPOKE,LEATHER,STEERING WHEEL-LEATHER, WITH(PADDLE SWITCH & HEATER),BLACK,TRIM2#,3#,4#

main45100-78100-C1i202111-202209

3-SPOKE,LEATHER,BLACK,TRIM0#; 3-SPOKE,LEATHER,STEERING WHEEL-LEATHER, WITH(PADDLE SWITCH & HEATER),BLACK,TRIM0#

main45100-78170-C0i202207-202403

3-SPOKE,LEATHER,BLACK/BLACK,TRIM2#,3#,4#; 3-SPOKE,LEATHER,STEERING WHEEL-LEATHER, WITH(PADDLE SWITCH),BLACK/BLACK,TRIM2#,3#,4#

main45100-78170-C1i202210-202403

3-SPOKE,LEATHER,BLACK/ORANGE NO.85,TRIM0#; 3-SPOKE,LEATHER,STEERING WHEEL-LEATHER, WITH(PADDLE SWITCH),BLACK/ORANGE NO.85,TRIM0#

main45100-78180-C0supersedes 45100-78170-C0i202209-202403

3-SPOKE,LEATHER,BLACK/BLACK,TRIM2#,3#,4#; 3-SPOKE,LEATHER,STEERING WHEEL-LEATHER, WITH(PADDLE SWITCH & HEATER),BLACK/BLACK,TRIM2#,3#,4#

main45100-78180-C1i202209-202403

3-SPOKE,LEATHER,BLACK/ORANGE NO.85,TRIM0#; 3-SPOKE,LEATHER,STEERING WHEEL-LEATHER, WITH(PADDLE SWITCH & HEATER),BLACK/ORANGENO.85,TRIM0#

main45100-48830-C1supersedes 45100-78210-C0i202311-202403

3-SPOKE,LEATHER,LANE CHANGE ASSIST-WITH(*LC & SAFE EXIT ASSIST),BLACK/RED,TRIM3#

main45100-48830-C3supersedes 45100-78210-C1i202311-202403

3-SPOKE,LEATHER,LANE CHANGE ASSIST-WITH(*LC & SAFE EXIT ASSIST),BLACK/GRAY,TRIM2#

main45100-78110-C0i202111-202211

3-SPOKE,LEATHER,LANE CHANGE ASSIST-WITH(*LC & SAFE EXIT ASSIST),BLACK,TRIM2#,3#,4#; 3-SPOKE,LEATHER,STEERING WHEEL-LEATHER, WITH(PADDLE SWITCH)&LANE CHANGE ASSIST-WITH(*LC & SAFE EXIT ASSIST),BLACK,TRIM2#,3#,4#

main45100-78110-C1i202111-202208

3-SPOKE,LEATHER,LANE CHANGE ASSIST-WITH(*LC & SAFE EXIT ASSIST),BLACK,TRIM0#; 3-SPOKE,LEATHER,STEERING WHEEL-LEATHER, WITH(PADDLE SWITCH)&LANE CHANGE ASSIST-WITH(*LC & SAFE EXIT ASSIST),BLACK,TRIM0#

main45100-78120-C0i202111-202212

3-SPOKE,LEATHER,LANE CHANGE ASSIST-WITH(*LC & SAFE EXIT ASSIST),BLACK,TRIM2#,3#,4#; 3-SPOKE,LEATHER,STEERING WHEEL-LEATHER, WITH(PADDLE SWITCH & HEATER)&LANE CHANGE ASSIST-WITH(*LC & SAFE EXIT ASSIST),BLACK,TRIM2#,3#,4#

main45100-78120-C1i202111-202301

3-SPOKE,LEATHER,LANE CHANGE ASSIST-WITH(*LC & SAFE EXIT ASSIST),BLACK,TRIM0#; 3-SPOKE,LEATHER,STEERING WHEEL-LEATHER, WITH(PADDLE SWITCH & HEATER)&LANE CHANGE ASSIST-WITH(*LC & SAFE EXIT ASSIST),BLACK,TRIM0#

main45100-78130-C2i202111-202301

3-SPOKE,LEATHER,BLACK,TRIM3#; 3-SPOKE,LEATHER,KOREA SPEC&STEERING WHEEL-F-SPORT, WITH(PADDLE SWITCH),BLACK,TRIM3#

main45100-78130-C3i202111-202301

3-SPOKE,LEATHER,BLACK,TRIM0#,2#; 3-SPOKE,LEATHER,KOREA SPEC&STEERING WHEEL-F-SPORT, WITH(PADDLE SWITCH),BLACK,TRIM0#,2#

main45100-78140-C1supersedes 45100-78130-C2i202111-202301

3-SPOKE,LEATHER,"F SPORT"*(F),BLACK,TRIM3#; 3-SPOKE,LEATHER,KOREA SPEC&STEERING WHEEL-F-SPORT, WITH(PADDLE SWITCH & HEATER),BLACK,TRIM3#; 3-SPOKE,LEATHER,STEERING WHEEL-F-SPORT, WITH(PADDLE SWITCH & HEATER),BLACK,TRIM3#

main45100-78140-C2i202111-202301

3-SPOKE,LEATHER,"F SPORT"*(F),BLACK,TRIM0#,2#; 3-SPOKE,LEATHER,KOREA SPEC&STEERING WHEEL-F-SPORT, WITH(PADDLE SWITCH & HEATER),BLACK,TRIM0#,2#; 3-SPOKE,LEATHER,STEERING WHEEL-F-SPORT, WITH(PADDLE SWITCH & HEATER),BLACK,TRIM0#,2#

main45100-78150-C1i202111-202211

3-SPOKE,LEATHER,"F SPORT"*(F)&LANE CHANGE ASSIST-WITH(*LC & SAFE EXIT ASSIST),BLACK,TRIM3#; 3-SPOKE,LEATHER,LANE CHANGE ASSIST-WITH(*LC & SAFE EXIT ASSIST),BLACK,TRIM3#; 3-SPOKE,LEATHER,STEERING WHEEL-F-SPORT, WITH(PADDLE SWITCH & HEATER)&LANE CHANGE ASSIST-WITH(*LC & SAFE EXIT ASSIST),BLACK,TRIM3#

main45100-78150-C2i202111-202211

3-SPOKE,LEATHER,"F SPORT"*(F)&LANE CHANGE ASSIST-WITH(*LC & SAFE EXIT ASSIST),BLACK,TRIM0#,2#; 3-SPOKE,LEATHER,LANE CHANGE ASSIST-WITH(*LC & SAFE EXIT ASSIST),BLACK,TRIM0#,2#; 3-SPOKE,LEATHER,STEERING WHEEL-F-SPORT, WITH(PADDLE SWITCH & HEATER)&LANE CHANGE ASSIST-WITH(*LC & SAFE EXIT ASSIST),BLACK,TRIM0#,2#

main45100-78190-C0i202211-202305

3-SPOKE,LEATHER,LANE CHANGE ASSIST-WITH(*LC & SAFE EXIT ASSIST),BLACK/BLACK,TRIM2#,3#,4#; 3-SPOKE,LEATHER,STEERING WHEEL-LEATHER, WITH(PADDLE SWITCH)&LANE CHANGE ASSIST-WITH(*LC & SAFE EXIT ASSIST),BLACK/BLACK,TRIM2#,3#,4#

main45100-78190-C1i202208-202305

3-SPOKE,LEATHER,LANE CHANGE ASSIST-WITH(*LC & SAFE EXIT ASSIST),BLACK/ORANGE NO.85,TRIM0#; 3-SPOKE,LEATHER,STEERING WHEEL-LEATHER, WITH(PADDLE SWITCH)&LANE CHANGE ASSIST-WITH(*LC & SAFE EXIT ASSIST),BLACK/ORANGE NO.85,TRIM0#

main45100-78191-C0i202404

3-SPOKE,LEATHER,LANE CHANGE ASSIST-WITH(*LC & SAFE EXIT ASSIST),BLACK/BLACK,TRIM0#,2#,3#,4#; 3-SPOKE,LEATHER,STEERING WHEEL-LEATHER, WITH(PADDLE SWITCH)&LANE CHANGE ASSIST-WITH(*LC & SAFE EXIT ASSIST),BLACK/BLACK,TRIM0#,2#,3#,4#

main45100-78191-C1i202306-202403

main45100-78200-C0i202212-202305

3-SPOKE,LEATHER,LANE CHANGE ASSIST-WITH(*LC & SAFE EXIT ASSIST),BLACK/BLACK,TRIM2#,3#,4#; 3-SPOKE,LEATHER,STEERING WHEEL-LEATHER, WITH(PADDLE SWITCH & HEATER)&LANE CHANGE ASSIST-WITH(*LC & SAFE EXIT ASSIST),BLACK/BLACK,TRIM2#,3#,4#

main45100-78200-C1i202301-202305

3-SPOKE,LEATHER,LANE CHANGE ASSIST-WITH(*LC & SAFE EXIT ASSIST),BLACK/ORANGE NO.85,TRIM0#; 3-SPOKE,LEATHER,STEERING WHEEL-LEATHER, WITH(PADDLE SWITCH & HEATER)&LANE CHANGE ASSIST-WITH(*LC & SAFE EXIT ASSIST),BLACK/ORANGE NO.85,TRIM0#

main45100-78201-C0supersedes 45100-78180-C0i202404

3-SPOKE,LEATHER,LANE CHANGE ASSIST-WITH(*LC & SAFE EXIT ASSIST),BLACK/BLACK,TRIM0#,2#,3#,4#; 3-SPOKE,LEATHER,STEERING WHEEL-LEATHER, WITH(PADDLE SWITCH & HEATER)&LANE CHANGE ASSIST-WITH(*LC & SAFE EXIT ASSIST),BLACK/BLACK,TRIM0#,2#,3#,4#

main45100-78201-C1i202306-202403

main45100-78210-C0i202301-202403

3-SPOKE,LEATHER,BLACK/RED NO.55,TRIM3#; 3-SPOKE,LEATHER,KOREA SPEC&STEERING WHEEL-F-SPORT, WITH(PADDLE SWITCH),BLACK/RED NO.55,TRIM3#

main45100-78210-C1i202301-202403

3-SPOKE,LEATHER,BLACK/LT.GRAY NO.831,TRIM0#,2#; 3-SPOKE,LEATHER,KOREA SPEC&STEERING WHEEL-F-SPORT, WITH(PADDLE SWITCH),BLACK/LT.GRAY NO.831,TRIM0#,2#

main45100-78210-C3i202404-202507

3-SPOKE,LEATHER,KOREA SPEC&STEERING WHEEL-F-SPORT, WITH(PADDLE SWITCH),BLACK/BLACK,TRIM4#

main45100-78220-C0i202301-202403

3-SPOKE,LEATHER,"F SPORT"*(F),BLACK/BLACK,TRIM3#; 3-SPOKE,LEATHER,KOREA SPEC&STEERING WHEEL-F-SPORT, WITH(PADDLE SWITCH & HEATER),BLACK/BLACK,TRIM3#; 3-SPOKE,LEATHER,STEERING WHEEL-F-SPORT, WITH(PADDLE SWITCH & HEATER),BLACK/BLACK,TRIM3#

main45100-78220-C1i202301-202403

3-SPOKE,LEATHER,"F SPORT"*(F),BLACK/LT.GRAY NO.831,TRIM0#,2#; 3-SPOKE,LEATHER,KOREA SPEC&STEERING WHEEL-F-SPORT, WITH(PADDLE SWITCH & HEATER),BLACK/LT.GRAY NO.831,TRIM0#,2#; 3-SPOKE,LEATHER,STEERING WHEEL-F-SPORT, WITH(PADDLE SWITCH & HEATER),BLACK/LT.GRAYNO.831,TRIM0#,2#

main45100-78220-C3i202404

3-SPOKE,LEATHER,"F SPORT"*(F),BLACK/BLACK,TRIM4#

main45100-78230-C0i202211-202305

3-SPOKE,LEATHER,"F SPORT"*(F)&LANE CHANGE ASSIST-WITH(*LC & SAFE EXIT ASSIST),BLACK/RED NO.55,TRIM3#; 3-SPOKE,LEATHER,LANE CHANGE ASSIST-WITH(*LC & SAFE EXIT ASSIST),BLACK/RED NO.55,TRIM3#; 3-SPOKE,LEATHER,STEERING WHEEL-F-SPORT, WITH(PADDLE SWITCH & HEATER)&LANE CHANGE ASSIST-WITH(*LC & SAFE EXIT ASSIST),BLACK/RED NO.55,TRIM3#

main45100-78230-C1i202211-202305

3-SPOKE,LEATHER,"F SPORT"*(F)&LANE CHANGE ASSIST-WITH(*LC & SAFE EXIT ASSIST),BLACK/LT.GRAY NO.831,TRIM0#,2#; 3-SPOKE,LEATHER,LANE CHANGE ASSIST-WITH(*LC & SAFE EXIT ASSIST),BLACK/LT.GRAY NO.831,TRIM0#,2#; 3-SPOKE,LEATHER,STEERING WHEEL-F-SPORT, WITH(PADDLE SWITCH & HEATER)&LANE CHANGE ASSIST-WITH(*LC & SAFE EXIT ASSIST),BLACK/LT.GRAY NO.831,TRIM0#,2#

main45100-78231-C0i202306-202403

3-SPOKE,LEATHER,"F SPORT"*(F)&LANE CHANGE ASSIST-WITH(*LC & SAFE EXIT ASSIST),BLACK/RED NO.55,TRIM3#; 3-SPOKE,LEATHER,STEERING WHEEL-F-SPORT, WITH(PADDLE SWITCH & HEATER)&LANE CHANGE ASSIST-WITH(*LC & SAFE EXIT ASSIST),BLACK/RED NO.55,TRIM3#

main45100-78231-C1supersedes 45100-78210-C1i202306-202403

3-SPOKE,LEATHER,"F SPORT"*(F)&LANE CHANGE ASSIST-WITH(*LC & SAFE EXIT ASSIST),BLACK/LT.GRAY NO.831,TRIM2#; 3-SPOKE,LEATHER,STEERING WHEEL-F-SPORT, WITH(PADDLE SWITCH & HEATER)&LANE CHANGE ASSIST-WITH(*LC & SAFE EXIT ASSIST),BLACK/LT.GRAY NO.831,TRIM2#

45130BUTTON ASSY, HORN

main45130-78090-C0i202111-202403

BLACK,TRIM0#,2#,3#,4#

45184COVER, STEERING WHEEL BOSS, LOWER

main45184-78020-C0supersedes 45184-78021-C0i202111-202306

"F SPORT"*(F)&LANE CHANGE ASSIST-WITH(*LC & SAFE EXIT ASSIST),BLACK,TRIM0#,2#,3#; "F SPORT"*(F),BLACK,TRIM0#,2#,3#; BLACK,TRIM0#,2#,3#; BLACK,TRIM0#,2#,3#,4#; KOREA SPEC&STEERING WHEEL-F-SPORT, WITH(PADDLE SWITCH & HEATER),BLACK,TRIM0#,2#,3#; STEERING WHEEL-LEATHER, WITH(PADDLE SWITCH & HEATER),BLACK,TRIM0#,2#,3#,4#

main45184-78021-C0i202404-202506

BLACK,TRIM0#,2#,3#,4#

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-78010-C0i202111-202403

"F SPORT"*(F),BLACK,TRIM0#,2#,3#; BLACK,TRIM0#,2#,3#; BLACK,TRIM0#,2#,3#,4#; STEERING WHEEL-LEATHER, WITH(PADDLE SWITCH & HEATER),BLACK,TRIM0#,2#,3#,4#

45187COVER, STEERING WHEEL, LOWER NO.3

main45187-78010-C0i202404

BLACK,TRIM0#,2#,3#,4#; BLACK,TRIM2#,3#

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

864A1ACOMPUTER, MULTIPLEX NETWORK STEERING

main864A1-78020i202111-202403

KOREA SPEC&STEERING WHEEL-F-SPORT, WITH(PADDLE SWITCH & HEATER); STEERING WHEEL-F-SPORT, WITH(PADDLE SWITCH & HEATER); STEERING WHEEL-LEATHER, WITH(PADDLE SWITCH & HEATER)

main864A1-78030i202111-202403

LANE CHANGE ASSIST-WITH(*LC & SAFE EXIT ASSIST)

main864A1-78040supersedes 864A1-78020i202404

LANE CHANGE ASSIST-WITH(*LC & SAFE EXIT ASSIST); STEERING WHEEL-F-SPORT, WITH(PADDLE SWITCH & HEATER)&LANE CHANGE ASSIST-WITH(*LC &SAFE EXIT ASSIST); STEERING WHEEL-LEATHER, WITH(PADDLE SWITCH & HEATER)&LANE CHANGE ASSIST-WITH(*LC &SAFE EXIT ASSIST)

9010918006

main90109-18006

9015950265

main90159-50265

9016840113

main90168-40113

10 parts on this diagram · 1 diagram in section
