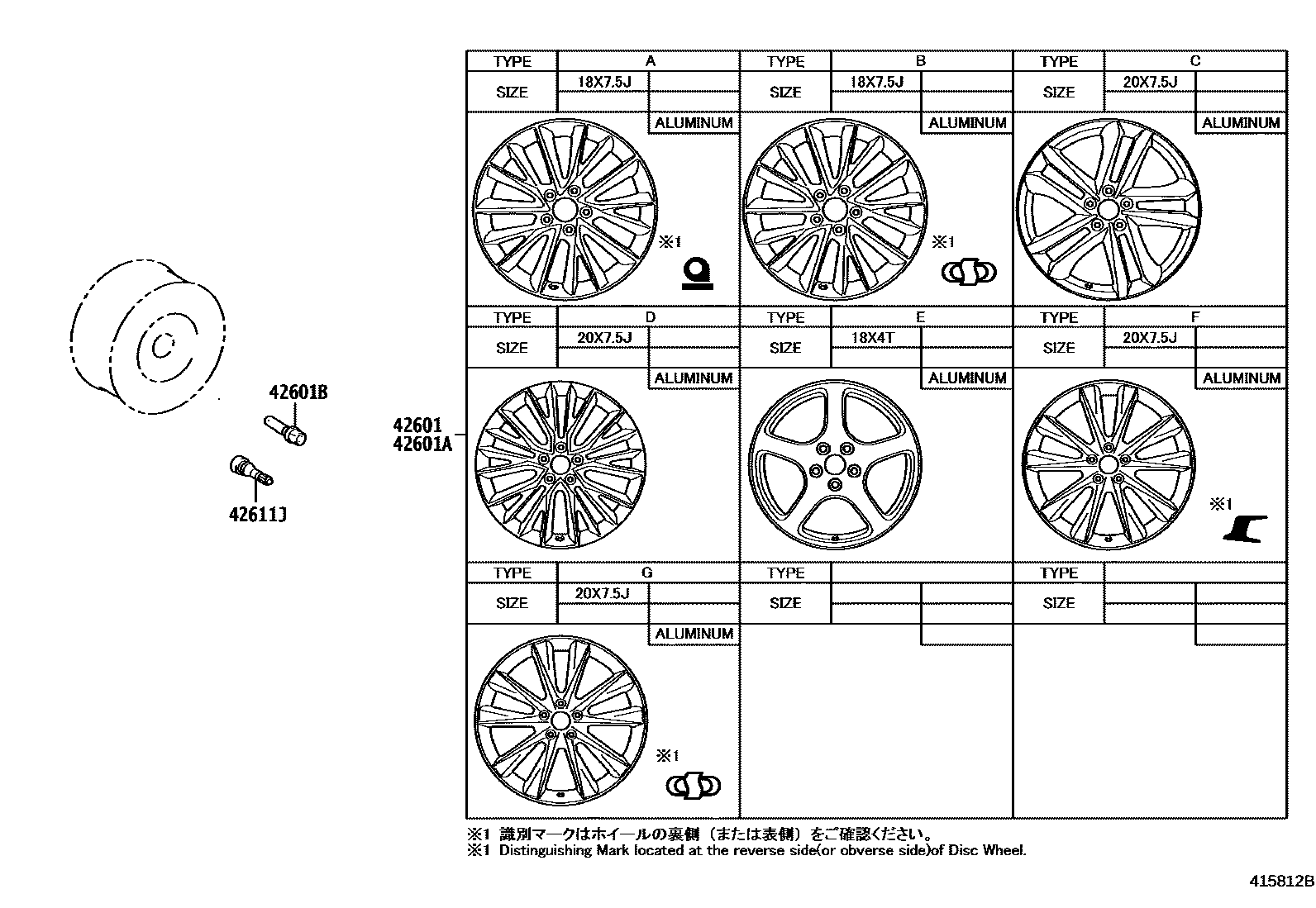

DISC WHEEL & WHEEL CAP

42601WHEEL, DISC

main42611-78170×4i202111-202403

18X7.5J,PUERTO RICO SPEC&TIRE & DISC WHEEL-235/60R18 ALL SEASON TIRE, 7.5J,TYPE A:REFER ILLUST.

main42611-78300×4i202111-202403

18X7.5J, #,TIRE & DISC WHEEL-235/60R18 ALL SEASON TIRE EMT, 7.5J,TYPE B,MADE IN JAPAN

main42611-F6010×4i202309-202403

18X7.5J, #,TYPE B,MADE IN TMMNA

main42611-78180×4supersedes 42611-78300i202111-202403

18X7.5J,CANADA SPEC,TYPE B:REFER ILLUST.

main42611-78190×4i202404

20X7.5J, *DGMP,KOREA SPEC&TIRE & DISC WHEEL-235/50R20 ALL SEASON TIRE EMT, 7.5J,TYPE D:REFER ILLUST.

main42611-78200×4i202404

20X7.5J,CANADA SPEC&TIRE & DISC WHEEL-235/50R20 ALL SEASON TIRE EMT, 7.5J,TYPE D:REFER ILLUST.

main42611-78250×4i202404

20X7.5J,TIRE & DISC WHEEL-235/50R20 ALL SEASON TIRE EMT, 7.5J,TYPE C:REFER ILLUST.

main42611-78260×4i202404

20X7.5J,CANADA SPEC&TIRE & DISC WHEEL-235/50R20 ALL SEASON TIRE EMT, 7.5J,TYPE C:REFER ILLUST.

main42611-78270×4i202111-202403

20X7.5J, BLACK PAINT,TIRE & DISC WHEEL-235/50R20 ALL SEASON TIRE EMT, 7.5J,TYPE F:REFER ILLUST.

main42611-78290×4i202111-202403

20X7.5J,CANADA SPEC&TIRE & DISC WHEEL-235/50R20 ALL SEASON TIRE EMT, 7.5J,TYPE F:REFER ILLUST.

main42611-F6020i202309-202403

18X7.5J, #,CANADA SPEC&TIRE & DISC WHEEL-235/60R18 ALL SEASON TIRE EMT, 7.5J,TYPEA:REFER ILLUST.

main42611-F6030i202309-202403

20X7.5J, #,TIRE & DISC WHEEL-235/50R20 ALL SEASON TIRE EMT, 7.5J,TYPE C:REFER ILLUST.

main42611-F6040i202309-202403

20X7.5J, #,CANADA SPEC&TIRE & DISC WHEEL-235/50R20 ALL SEASON TIRE EMT, 7.5J,TYPEC:REFER ILLUST.

main42611-F6050i202309-202403

20X7.5J, #,TIRE & DISC WHEEL-235/50R20 ALL SEASON TIRE EMT, 7.5J,TYPE D:REFER ILLUST.

main42611-F6060i202309-202403

20X7.5J, #,CANADA SPEC&TIRE & DISC WHEEL-235/50R20 ALL SEASON TIRE EMT, 7.5J,TYPED:REFER ILLUST.

main42611-F6070i202309-202403

20X7.5J, BLACK PAINT,TIRE & DISC WHEEL-235/50R20 ALL SEASON TIRE EMT, 7.5J,TYPE G:REFER ILLUST.

main42611-F6080i202309-202403

20X7.5J, BLACK PAINT,CANADA SPEC&TIRE & DISC WHEEL-235/50R20 ALL SEASON TIRE EMT,7.5J,TYPE G:REFER ILLUST.

main4261A-78220×4supersedes 4261A-F6030i202404

20X7.5J,CANADA SPEC,TYPE F:REFER ILLUST.

main4261A-78260×4i202111-202403

20X7.5J, *PMP,TIRE & DISC WHEEL-235/50R20 ALL SEASON TIRE EMT, 7.5J,TYPE D:REFER ILLUST.

main4261A-78270×4i202404

20X7.5J,CANADA SPEC&TIRE & DISC WHEEL-235/50R20 ALL SEASON TIRE EMT, 7.5J,TYPE D:REFER ILLUST.

main4261A-F6010i202309-202403

20X7.5J,#,TIRE & DISC WHEEL-235/50R20 ALL SEASON TIRE EMT, 7.5J,TYPE D:REFER ILLUST.

main4261A-F6020i202309-202403

20X7.5J,#,CANADA SPEC&TIRE & DISC WHEEL-235/50R20 ALL SEASON TIRE EMT, 7.5J,TYPE D:REFER ILLUST.

main4261A-F6040supersedes 4261A-F6030i202309-202403

20X7.5J,#,CANADA SPEC&TIRE & DISC WHEEL-235/50R20 ALL SEASON TIRE EMT, 7.5J,TYPE F:REFER ILLUST.

42601AWHEEL, DISC (FOR SPARE)

main4261B-78010i202111-202403

18X4T,TIRE & DISC WHEEL-235/60R18 ALL SEASON TIRE, 7.5J,TYPE E:REFER ILLUST.

42601BBOLT, HUB (FOR AXLE)

main90942-02103×20i202111-202403

42611JVALVE (FOR TUBELESS TIRE SPARE)

main90942-05009i202111-202403

TIRE & DISC WHEEL-235/60R18 ALL SEASON TIRE, 7.5J

4 parts on this diagram · 3 diagrams in section
