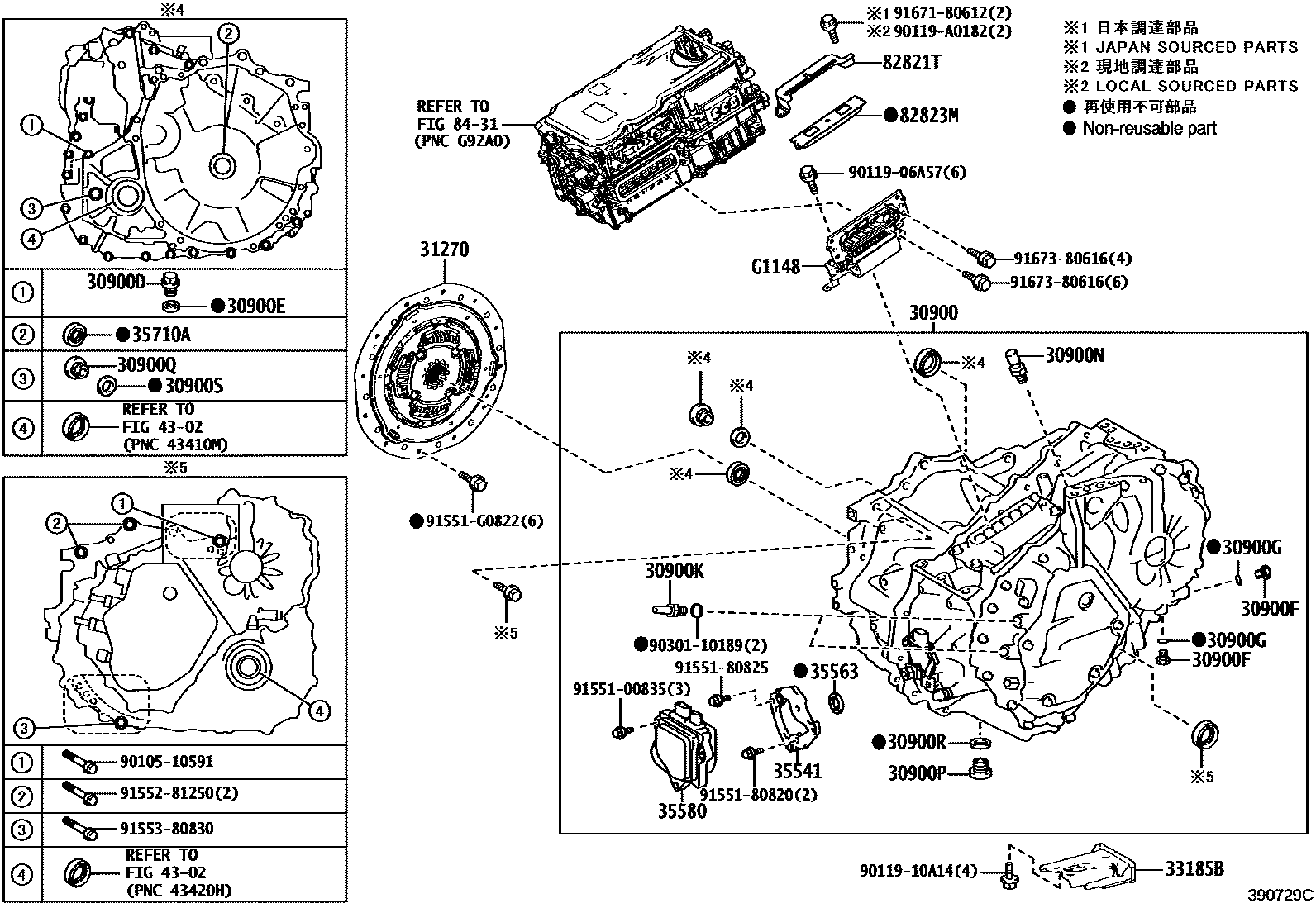

TRANSAXLE ASSY(HEV OR BEV OR FCEV)
30900TRANSAXLE ASSY, HYBRID VEHICLE
30900DPLUG, W/HEAD STRAIGHT SCREW(FOR TRANSAXLE HOUSING & CASE)
30900EGASKET(FOR TRANSAXLE HOUSING & CASE)
30900FPLUG, W/HEAD STRAIGHT SCREW, NO.2(FOR TRANSAXLE HSG & CASE)
30900GGASKET, NO.2(FOR TRANSAXLE HOUSING & CASE)
30900KCONNECTOR, TUBE(FOR TRANSAXLE HOUSING)
30900PPLUG, DRAIN(HEV)
30900QPLUG, FILLER(HEV)
30900RGASKET, DRAIN PLUG(HEV)
30900SGASKET, FILLER PLUG(HEV)
31270DAMPER ASSY, TRANSMISSION INPUT
33185BBRACKET, TRANSAXLE UNDER STOPPER
35541BRACKET, SHIFT CONTROL ACTUATOR
35563SEAL, SHIFT CONTROL ACTUATOR
35710ASEAL, TYPE T OIL(FOR INPUT SHAFT)
4302
82821TCOVER, CONNECTOR
82823MCAP, TERMINAL
8431
G1148CABLE, MOTOR
9010510591
main90105-10591
9011906A57
main90119-06A57
9011910A14
main90119-10A14
90119A0182
main90119-A0182
9030110189
main90301-10189
9155100835
main91551-00835
9155180820
main91551-80820
9155180825
main91551-80825
91551G0822
main91551-G0822
9155281250
main91552-81250
9155380830
main91553-80830
9167180612
main91671-80612
9167380616
main91673-80616
35 parts on this diagram · 2 diagrams in section
