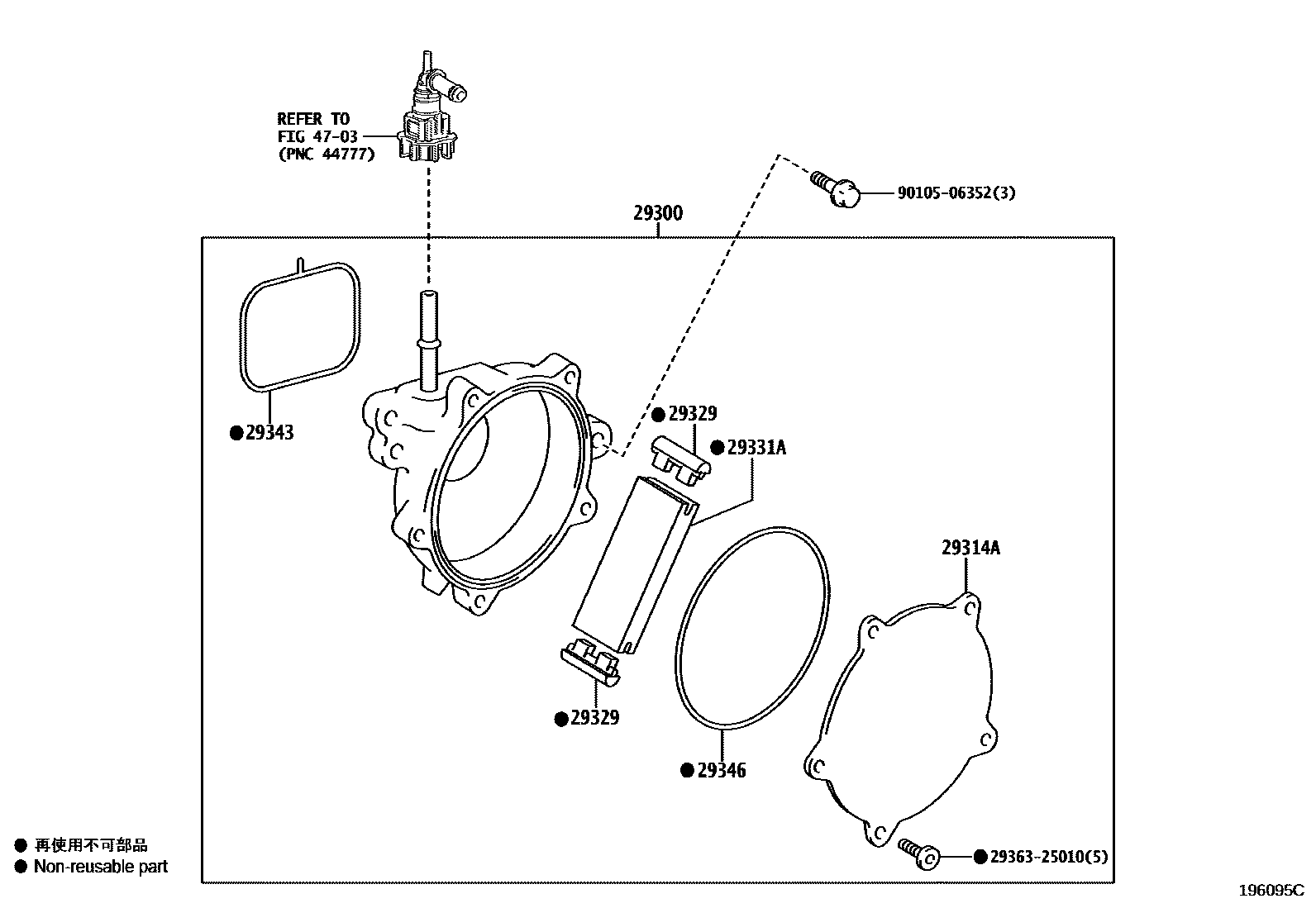

VACUUM PUMP

0001 1 0002 1

29300PUMP ASSY, VACUUM

main29300-25012iA25AFKS..AAZA2#202404-202506

29314ACOVER, END

main29314-25010iA25AFKS..AAZA2#202404-202506

29329CAP, VACUUM PUMP VANE

main29329-25011×2iA25AFKS..AAZA2#202404-202506

29331AVANE, VACUUM PUMP

main29331-37010iA25AFKS..AAZA2#202404-202506

29343RING, O VACUUM PUMP, NO.1

main29343-25010iA25AFKS..AAZA2#202404-202506

29346RING, O VACUUM PUMP COVER

main29346-25010iA25AFKS..AAZA2#202404-202506

4703BRAKE BOOSTER & VACUUM TUBE

→ Go to FIG 47-03

2936325010SCREW, HOLLOW VACUUM PUMP

main29363-25010

9010506352

main90105-06352

9 parts on this diagram · 2 diagrams in section
