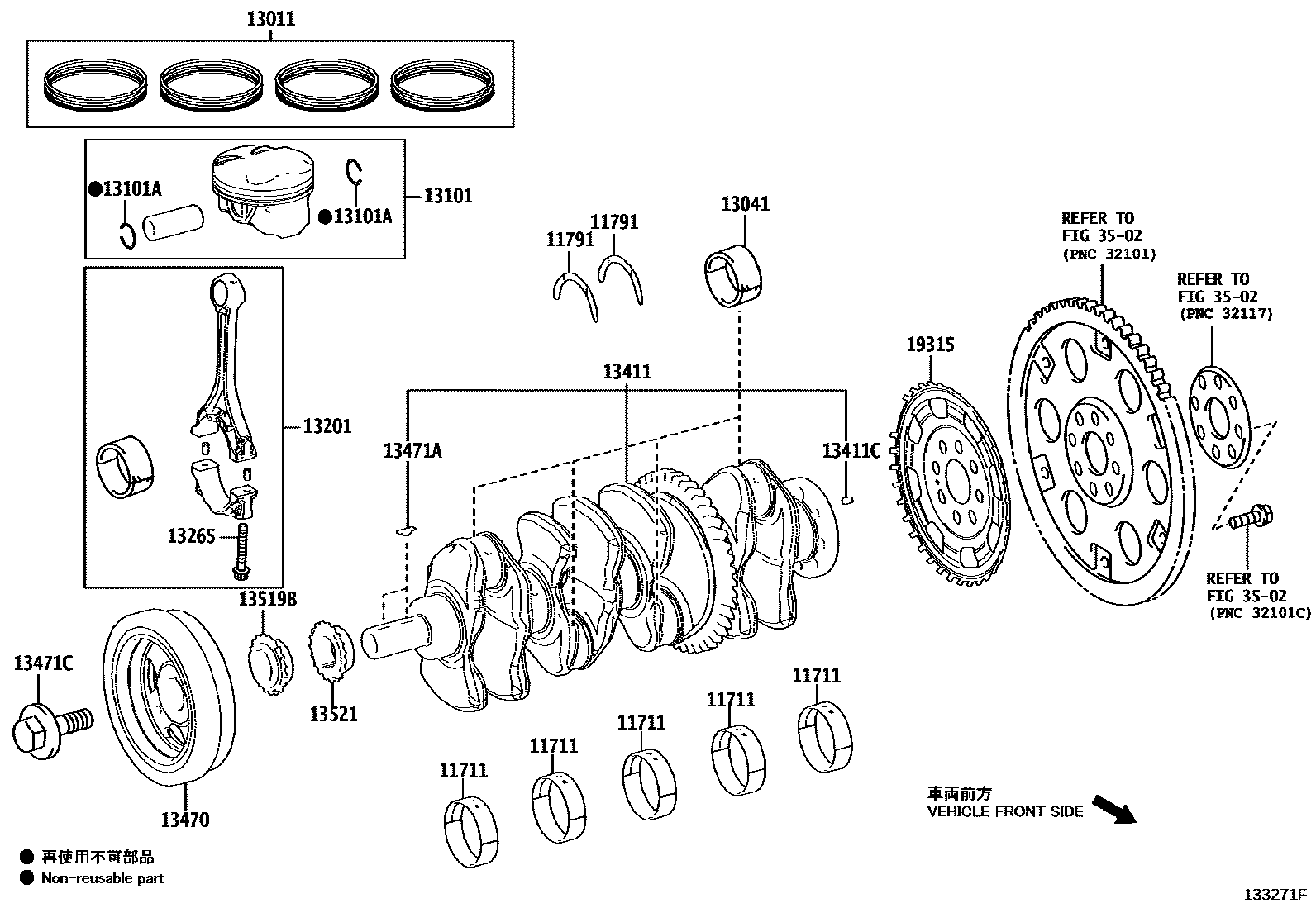

CRANKSHAFT & PISTON

0001 1 0002 1 0003 1

11711BEARING, CRANKSHAFT

main11701-25010-01×5iA25AFXS..AAZH2#202404

MARK 1,REFER REPAIR MANUAL

main11701-25010-02×5iA25AFKS..AAZA2#202404-202506

MARK 2,REFER REPAIR MANUAL

main11701-25010-03×5iA25AFXS..AAZH2#202404

MARK 3,REFER REPAIR MANUAL

main11701-25010-04×5iA25AFKS..AAZA2#202404-202506

MARK 4,REFER REPAIR MANUAL

main11701-25010-05×5iA25AFXS..AAZH2#202404

MARK 5,REFER REPAIR MANUAL

main11701-25050-01×4iT24AFTS..TAZA25202404

MARK 1,NO.1,REFER R/M

main11701-25050-02×4iT24AFTS..TAZA25202404

MARK 2,NO.1,REFER R/M

main11701-25050-03×4iT24AFTS..TAZA25202111-202403

MARK 3,NO.1,REFER R/M

main11701-25050-04×4iT24AFTS..TAZA25202111-202403

MARK 4,NO.1,REFER R/M

main11701-25060-01iT24AFTS..TAZA25202404

MARK 1,NO.2,REFER R/M

main11701-25060-02iT24AFTS..TAZA25202404

MARK 2,NO.2,REFER R/M

main11701-25060-03iT24AFTS..TAZA25202404

MARK 3,NO.2,REFER R/M

main11701-25060-04iT24AFTS..TAZA25202111-202403

MARK 4,NO.2,REFER R/M

11791WASHER, CRANKSHAFT THRUST, UPPER

main11791-25040×2iA25#..AAZA2#,AAZH2#; T24AFTS..TAZA25202111-202403

STD

13011RING SET, PISTON

main13011-15140iT24AFTS..TAZA25202404

STD

main13011-25080iA25AFKS..AAZA2#202404-202506

STD

13041BEARING, CONNECTING ROD

main13041-25020-01×4iA25#..AAZA2#,AAZH2#202111-202403

MARK 1,REFER REPAIR MANUAL

main13041-25020-02×4iA25#..AAZA2#,AAZH2#202111-202403

MARK 2,REFER REPAIR MANUAL

main13041-25020-03×4iA25AFXS..AAZH2#202404

MARK 3,REFER REPAIR MANUAL

main13041-25040-01×4iT24AFTS..TAZA25202111-202403

MARK 1,REFER REPAIR MANUAL

main13041-25040-02×4iT24AFTS..TAZA25202404

MARK 2,REFER REPAIR MANUAL

main13041-25040-03×4iT24AFTS..TAZA25202404

MARK 3,REFER REPAIR MANUAL

13101PISTON SUB-ASSY, W/PIN

main13101-25030×4iA25AFKS..AAZA2#202404-202506

STD

main13101-25040×4iA25AFXS..AAZH2#202404

STD

main13101-25050×4iT24AFTS..TAZA25202404

STD

13101ARING, HOLE SNAP(FOR PISTON PIN)

main90520-21024×8iA25AFXS..AAZH2#202404

main90520-25090×8iT24AFTS..TAZA25202404

13201ROD SUB-ASSY, CONNECTING

main13201-29815-A0×4iA25#..AAZA2#,AAZH2#202111-202403

MARK A

main13201-29815-B0×4iA25#..AAZA2#,AAZH2#202111-202403

MARK B

main13201-29815-C0×4iA25AFXS..AAZH2#202404

MARK C

main13201-29855-A0×4iT24AFTS..TAZA25202404

MARK A,REFER REPAIR MANUAL

main13201-29855-B0×4iT24AFTS..TAZA25202404

MARK B,REFER REPAIR MANUAL

main13201-29855-C0×4iT24AFTS..TAZA25202111-202403

MARK C,REFER REPAIR MANUAL

13265BOLT, CONNECTING ROD

main13265-25020×8iA25AFKS..AAZA2#202404-202506

13411CRANKSHAFT

main13401-25010iA25AFKS..AAZA2#202404-202506

main13401-25060iT24AFTS..TAZA25202111-202403

13411CPIN, STRAIGHT(FOR CRANKSHAFT)

main90250-06035iA25AFXS..AAZH2#202404

13470PULLEY ASSY, CRANKSHAFT

main13470-25010iA25AFKS..AAZA2#202111-202403

main13470-25020iA25AFXS..AAZH2#202111-202403

main13470-25050iT24AFTS..TAZA25202404

13471AKEY, CRANKSHAFT(FOR CRANKSHAFT PULLEY SET)

main90280-04001×2iA25AFKS..AAZA2#202404-202506

13471CBOLT(FOR CRANKSHAFT PULLEY SET)

main90119-16020iA25#..AAZA2#,AAZH2#; T24AFTS..TAZA25202111-202403

13519BSPROCKET, OIL PUMP DRIVE

main13519-25010iA25#..AAZA2#,AAZH2#202111-202403

main13519-25040iT24AFTS..TAZA25202111-202403

13521GEAR OR SPROCKET, CRANKSHAFT TIMING

main13521-25010iA25AFKS..AAZA2#202404-202506

main13521-25030iT24AFTS..TAZA25202404

19315PLATE, CRANK ANGLE SENSOR, NO.1

main19315-25011iA25AFKS..AAZA2#202404-202506

main19315-25031iT24AFTS..TAZA25202404

3502TORQUE CONVERTER, FRONT OIL PUMP & CHAIN (ATM)

→ Go to FIG 35-02

17 parts on this diagram · 3 diagrams in section
