SHORT BLOCK ASSEMBLY

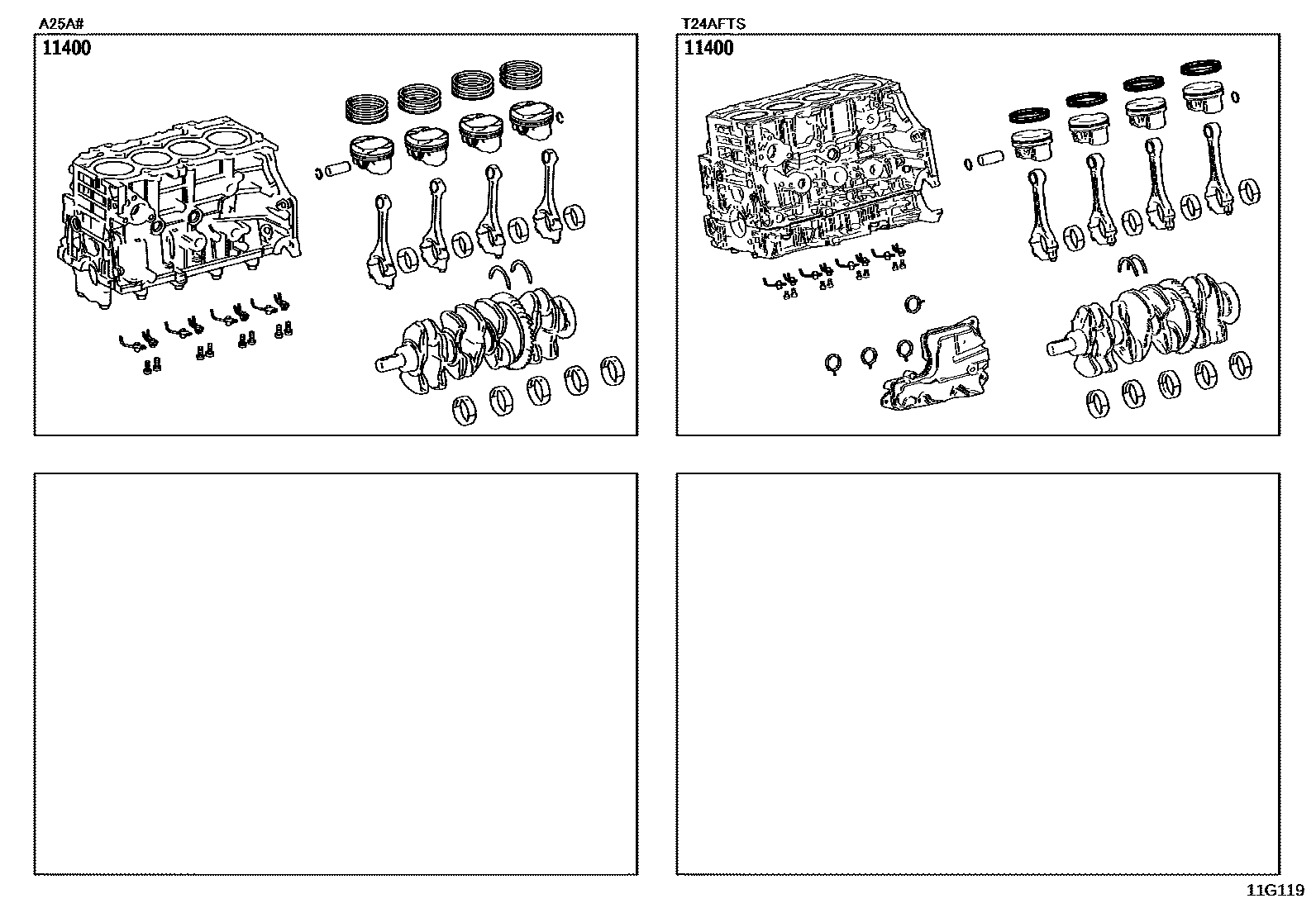

Parts diagram

11400BLOCK ASSY, SHORT

main11400-25051i202111-202212

main11400-25130i202111-202212

main11400-25170i202404

main11400-2E010i202301-202403

main11400-2E020i202301-202403

1 parts on this diagram · 1 diagram in section
