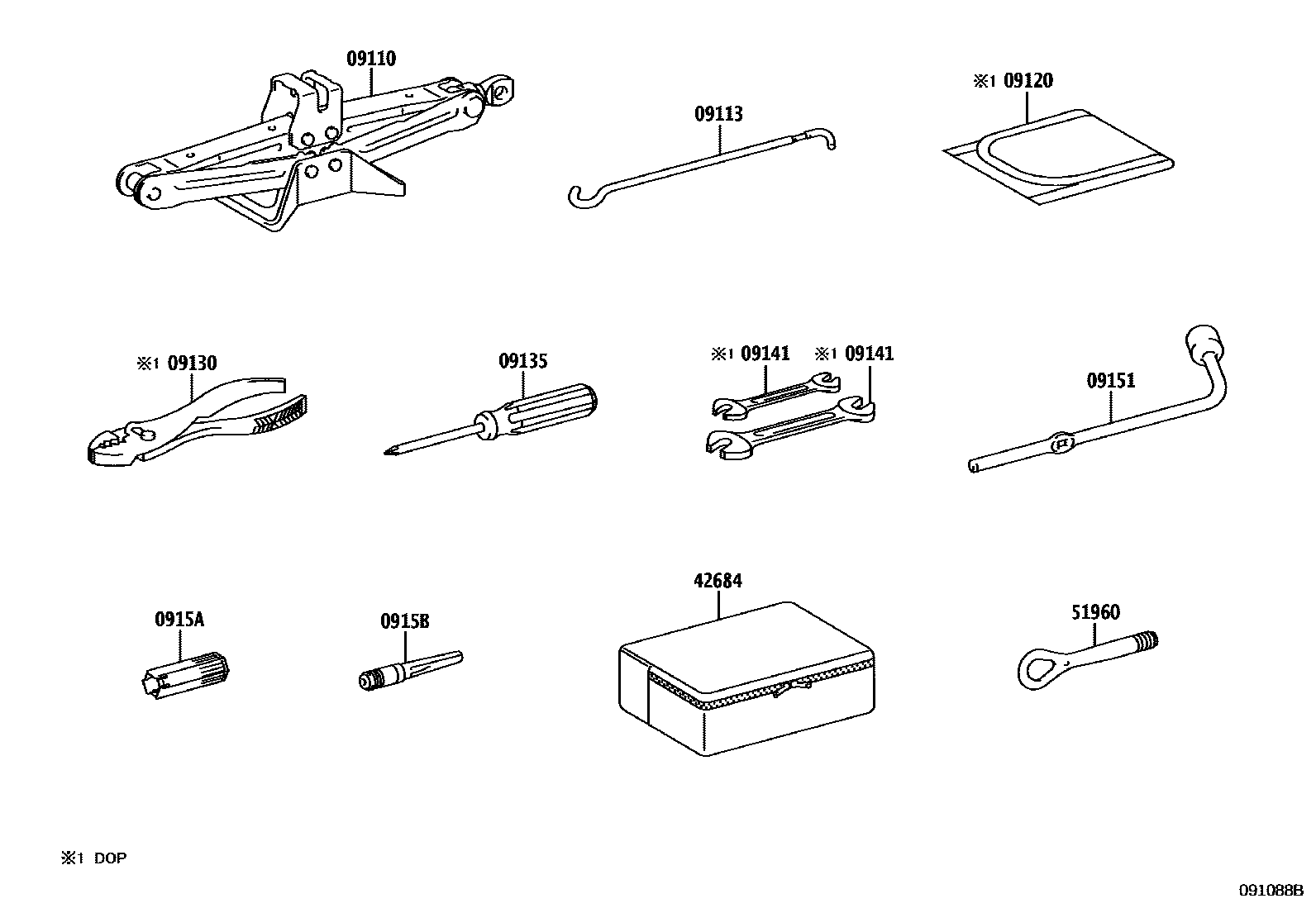

STANDARD TOOL

09110JACK ASSY

main09111-0W150i202111-202207

JACK-WITH(DOP); TIRE & DISC WHEEL-235/60R18 ALL SEASON TIRE, 7.5J&SPARE TIRE-TEMPORARY(T165/90D18AL)

main09111-0W151i202404-202506

JACK-WITH(DOP); TIRE & DISC WHEEL-235/60R18 ALL SEASON TIRE, 7.5J&SPARE TIRE-TEMPORARY(T165/90D18AL)

09113HANDLE, JACK

main09113-42030i202404-202506

JACK-WITH(DOP); TIRE & DISC WHEEL-235/60R18 ALL SEASON TIRE, 7.5J&SPARE TIRE-TEMPORARY(T165/90D18AL)

09120BAG, TOOL

TOOL(DEALERSHIP OPTION)-SPANNER & PLIERS; TOOL(DEALERSHIP OPTION)-SPANNER & PLIERS+JACK HANDLE+BW/T+GP

09130PLIERS

main09130-50040i202404-202506

TOOL(DEALERSHIP OPTION)-SPANNER & PLIERS; TOOL(DEALERSHIP OPTION)-SPANNER & PLIERS+JACK HANDLE+BW/T+GP

09135DRIVER, SCREW

main99915-10700i202404-202506

09141SPANNER

main09141-60010i202111-202403

8 X 10,TOOL(DEALERSHIP OPTION)-SPANNER & PLIERS; 8 X 10,TOOL(DEALERSHIP OPTION)-SPANNER & PLIERS+JACK HANDLE+BW/T+GP

12 X 14,TOOL(DEALERSHIP OPTION)-SPANNER & PLIERS; 12 X 14,TOOL(DEALERSHIP OPTION)-SPANNER & PLIERS+JACK HANDLE+BW/T+GP

09151WRENCH, HUB BOLT BOX

main09151-78010i202404-202506

JACK-WITH(DOP); TIRE & DISC WHEEL-235/60R18 ALL SEASON TIRE, 7.5J&SPARE TIRE-TEMPORARY(T165/90D18AL)

0915ASOCKET, HUB BOLT TEMPORARY SETTING

main0915A-53010i202111-202403

JACK-WITH(DOP); TIRE & DISC WHEEL-235/60R18 ALL SEASON TIRE, 7.5J&SPARE TIRE-TEMPORARY(T165/90D18AL)

0915BPIN, WHEEL GUIDE

main0915B-53010i202404-202506

JACK-WITH(DOP); TIRE & DISC WHEEL-235/60R18 ALL SEASON TIRE, 7.5J&SPARE TIRE-TEMPORARY(T165/90D18AL)

42684CASE, TIRE REPAIR KIT

PUERTO RICO SPEC&TIRE & DISC WHEEL-235/60R18 ALL SEASON TIRE, 7.5J

51960HOOK ASSY, FRONT

11 parts on this diagram · 2 diagrams in section
