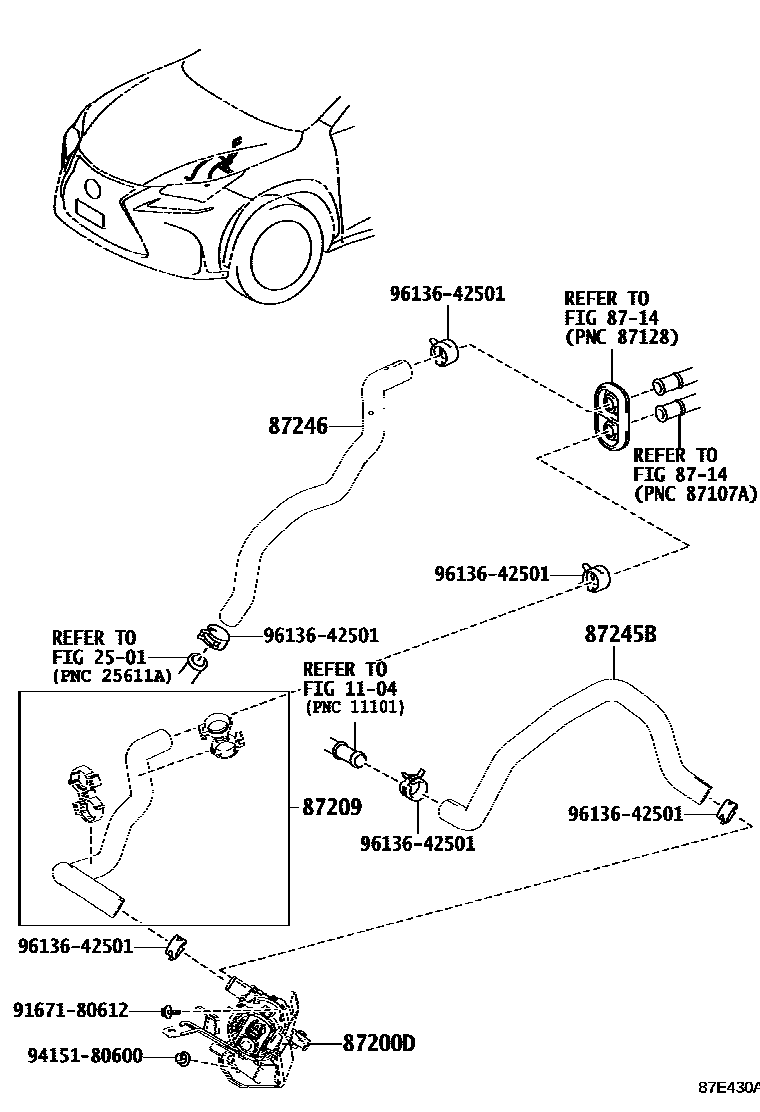

HEATING & AIR CONDITIONING - WATER PIPING

0001 1 0002 1

1104CYLINDER HEAD

→ Go to FIG 11-04

2501EXHAUST GAS RECIRCULATION SYSTEM

→ Go to FIG 25-01

8714HEATING & AIR CONDITIONING - COOLER UNIT

→ Go to FIG 87-14

87200DACCESSORY ASSY, HEATER

main87200-48110iAYZ10201407-201608

87209HOSE SUB-ASSY, WATER

main87209-78050iAYZ10201407-201608

main87209-78051iAYZ15201903

87245BHOSE, HEATER WATER, INLET B

main87245-48B40iAYZ10201407-201608

main87245-78090iAYZ15201905

87246HOSE, HEATER WATER, OUTLET

main87245-78080iAYZ10201407-201608

9167180612

main91671-80612

9415180600

main94151-80600

9613642501

main96136-42501

10 parts on this diagram · 2 diagrams in section
