HORN

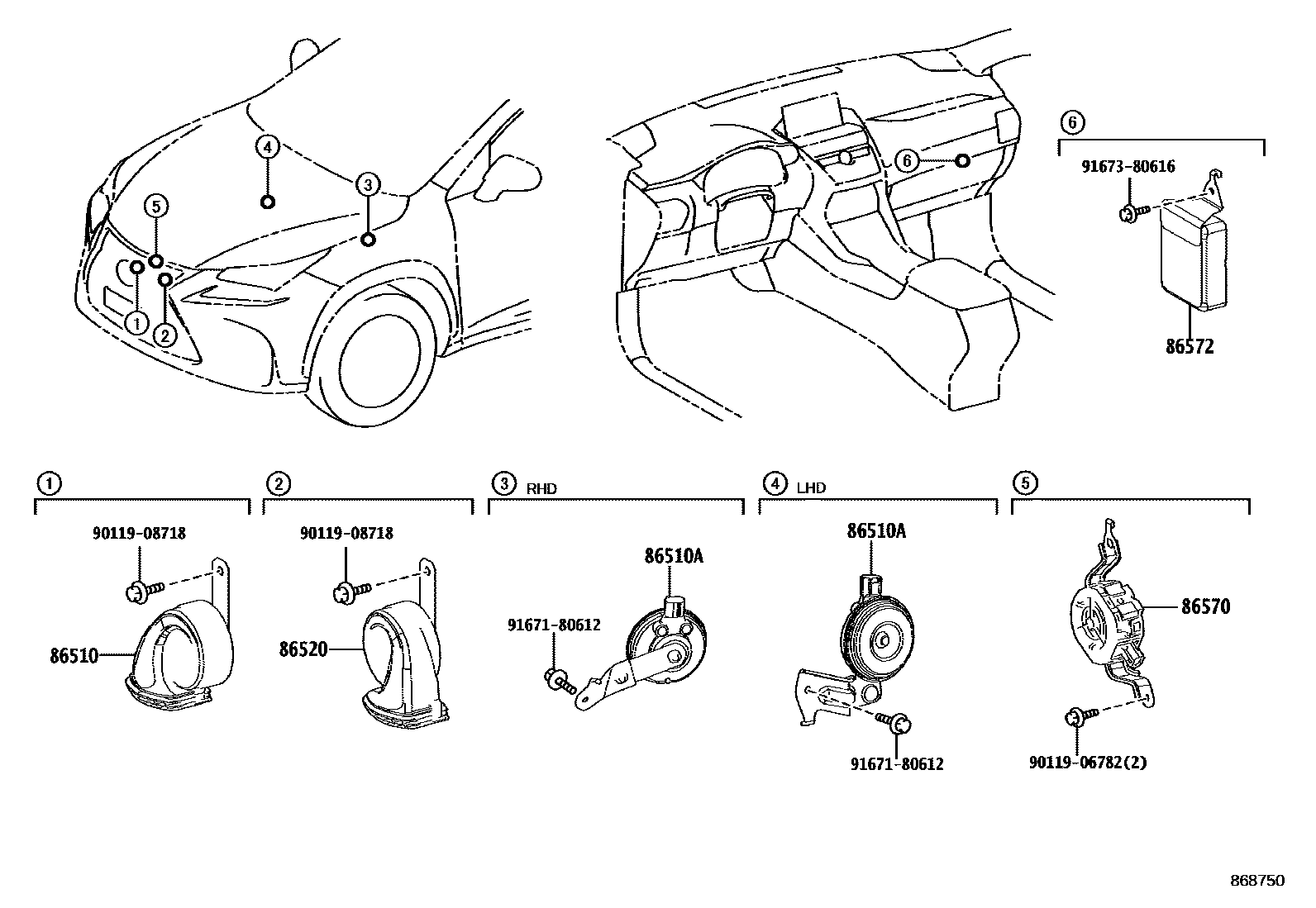

Parts diagram
86510HORN ASSY, HIGH PITCHED
main86510-48190i201407-201608
main86510-48210i201709
KOREA SPEC
86510AHORN ASSY, SECURITY
main86560-42010i201709
86520HORN ASSY, LOW PITCHED
main86520-30670i201407-201709
main86520-30690i201407-201709
KOREA SPEC
86570SPEAKER ASSY, VEHICLE APPROACHING
main86570-78010supersedes 86570-78011i201407-201601
KOREA SPEC; KOREA SPEC&VEHICLE APPROACH NOTICE-WITHOUT; KOREA SPEC&VEHICLE APPROACH NOTICE-WITHOUT & WITH(ACTIVE SOUND CONTROL)
main86570-78011i201602-201608
main86570-78020supersedes 86570-78011i202007
86572CONTROLLER, VEHICLE APPROACHING SPEAKER
main86572-78010i201709-202007
main86572-78030supersedes 86572-78010i202005
KOREA SPEC
main86572-78070supersedes 86572-78020i202007
F SPORT
9011906782
9011908718
9167180612
9167380616

9 parts on this diagram · 3 diagrams in section
