NAVIGATION & FRONT MONITOR DISPLAY

84780ACONTROLLER ASSY, REMOTE OPERATION

main84780-78050i201407-201709

KOREA SPEC&NAVIGATION SYSTEM-WITH(KOREA SPEC)

main84780-78080supersedes 84780-78061i201410-201709

NAVIGATION SYSTEM-WITH(SD NAVIGATION)

main84780-78120supersedes 84780-78110i201709

NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY)

8601RADIO RECEIVER & AMPLIFIER & CONDENSER

→ Go to FIG 86-01

86101HCORD SUB-ASSY, ANTENNA

main86101-78810i201709-201910

main86101-78G70i201910

main86101-78550i201407-201608

USA POSSESSIONS SPEC(GUAM,PUERTO RICO); USA POSSESSIONS SPEC(GUAM,PUERTO RICO)&MAYDAY SYSTEM-WITHOUT

86110BMULTI-DISPLAY ASSY

main86110-78010i201410-201607

PIONEER

main86110-78011i201607-201709

PIONEER

main86110-78020i201407-201607

PIONEER,KOREA SPEC&NAVIGATION SYSTEM-WITH(KOREA SPEC)

main86110-78021i201607-201702

PIONEER,KOREA SPEC&NAVIGATION SYSTEM-WITH(KOREA SPEC)

main86110-78022i201703-201709

PIONEER,KOREA SPEC&NAVIGATION SYSTEM-WITH(KOREA SPEC)

main86110-78040supersedes 86110-78050i201709-202007

DENSO,NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY)

main86110-78041supersedes 86110-78050i202008

DENSO,NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY)

86117BRACKET, MULTI-DISPLAY CONTROLLER, A

main86117-78010i201410-201608

main86117-78040supersedes 86117-78050i201709

NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY)

86134APARTS, MULTI-DISPLAY

main86134-78020i201407-201607

main86134-78021i201607-201709

861A2ABRACKET, MULTI-MEDIA INTERFACE, NO.1

main861A2-78010i201407-201709

KOREA SPEC&NAVIGATION SYSTEM-WITH(KOREA SPEC)&MAP DISC(DOP)-WITH

861A3ABRACKET, MULTI-MEDIA INTERFACE, NO.2

main861A3-78010i201407-201709

KOREA SPEC&NAVIGATION SYSTEM-WITH(KOREA SPEC)&MAP DISC(DOP)-WITH

86271DISC, DISC PLAYER

main86271-78011i201410-201507

AUDIO-EMVN & 10SPEAKER&NAVIGATION SYSTEM-WITH(SD NAVIGATION)&MAYDAY SYSTEM-WITH &WITH(REMOTE DIAGNOSIS),MICRO SD CARD; CANADA SPEC&AUDIO-EMVN & 10SPEAKER&NAVIGATION SYSTEM-WITH(SD NAVIGATION)&MAYDAY SYSTEM-WITHOUT,MICRO SD CARD; NAVIGATION SYSTEM-WITH(SD NAVIGATION)&MAYDAY SYSTEM-WITH & WITH(REMOTE DIAGNOSIS),MICRO SD CARD; USA POSSESSIONS SPEC(GUAM,PUERTO RICO)&AUDIO-EMVN & 10SPEAKER&SATELLITE RADIO-WITHOUT&NAVIGATION SYSTEM-WITH(SD NAVIGATION)&MAYDAY SYSTEM-WITHOUT,MICRO SD CARD; USA POSSESSIONS SPEC(GUAM,PUERTO RICO)&SATELLITE RADIO-WITHOUT&NAVIGATION SYSTEM-WITH(SD NAVIGATION)&MAYDAY SYSTEM-WITHOUT,MICRO SD CARD

main86271-78012i201509-201606

AUDIO-EMVN & 10SPEAKER&NAVIGATION SYSTEM-WITH(SD NAVIGATION),MICRO SD CARD; NAVIGATION SYSTEM-WITH(SD NAVIGATION),MICRO SD CARD

main86271-78013i201607-201608

AUDIO-EMVN & 10SPEAKER&NAVIGATION SYSTEM-WITH(SD NAVIGATION),MICRO SD CARD; USA POSSESSIONS SPEC(GUAM,PUERTO RICO)&AUDIO-EMVN & 10SPEAKER&SATELLITE RADIO-WITHOUT&NAVIGATION SYSTEM-WITH(SD NAVIGATION)&MAYDAY SYSTEM-WITHOUT,MICRO SD CARD

main86271-78014i201708-201709

AUDIO-EMVN & 10SPEAKER&NAVIGATION SYSTEM-WITH(SD NAVIGATION); AUDIO-EMVN & 10SPEAKER&NAVIGATION SYSTEM-WITH(SD NAVIGATION)&MAYDAY SYSTEM-WITHOUT,MICRO SD CARD; CANADA SPEC&AUDIO-EMVN & 10SPEAKER&NAVIGATION SYSTEM-WITH(SD NAVIGATION)&MAYDAY SYSTEM-WITHOUT,MICRO SD CARD; CANADA SPEC&NAVIGATION SYSTEM-WITH(SD NAVIGATION)&MAYDAY SYSTEM-WITHOUT,MICRO SD CARD; NAVIGATION SYSTEM-WITH(SD NAVIGATION); NAVIGATION SYSTEM-WITH(SD NAVIGATION)&MAYDAY SYSTEM-WITHOUT,MICRO SD CARD; NAVIGATION SYSTEM-WITH(SD NAVIGATION),MICRO SD CARD; USA POSSESSIONS SPEC(GUAM,PUERTO RICO)&AUDIO-EMVN & 10SPEAKER&SATELLITE RADIO-WITHOUT&NAVIGATION SYSTEM-WITH(SD NAVIGATION)&MAYDAY SYSTEM-WITHOUT; USA POSSESSIONS SPEC(GUAM,PUERTO RICO)&SATELLITE RADIO-WITHOUT&NAVIGATION SYSTEM-WITH(SD NAVIGATION)&MAYDAY SYSTEM-WITHOUT; USA POSSESSIONS SPEC(GUAM,PUERTO RICO)&SATELLITE RADIO-WITHOUT&NAVIGATION SYSTEM-WITH(SD NAVIGATION)&MAYDAY SYSTEM-WITHOUT,MICRO SD CARD

86730AMICROPHONE ASSY, TELEPHONE

main86730-53070i201407-201709

86860ANTENNA ASSY, NAVIGATION

main86880-52020i201910

main86880-78020i201709-201910

main86860-78010i201407-201709

CANADA SPEC; KOREA SPEC&AUDIO-EMVN & 10SPEAKER&NAVIGATION SYSTEM-WITH(KOREA SPEC); KOREA SPEC&AUDIO-EMVN & 10SPEAKER&NAVIGATION SYSTEM-WITH(KOREA SPEC)&MAYDAY SYSTEM-WITHOUT; KOREA SPEC&AUDIO-EMVN & 14SPEAKER&NAVIGATION SYSTEM-WITH(KOREA SPEC); KOREA SPEC&AUDIO-EMVN & 14SPEAKER&NAVIGATION SYSTEM-WITH(KOREA SPEC)&MAYDAY SYSTEM-WITHOUT; USA POSSESSIONS SPEC(GUAM,PUERTO RICO); USA POSSESSIONS SPEC(GUAM,PUERTO RICO)&MAYDAY SYSTEM-WITHOUT

86862BRACKET, NAVIGATION ANTENNA

main86862-78010i201709-201809

9008011699

main90080-11699

9015350010

main90153-50010

9015950327

main90159-50327

9017906323

main90179-06323

9018305094

main90183-05094

9155380614

main91553-80614

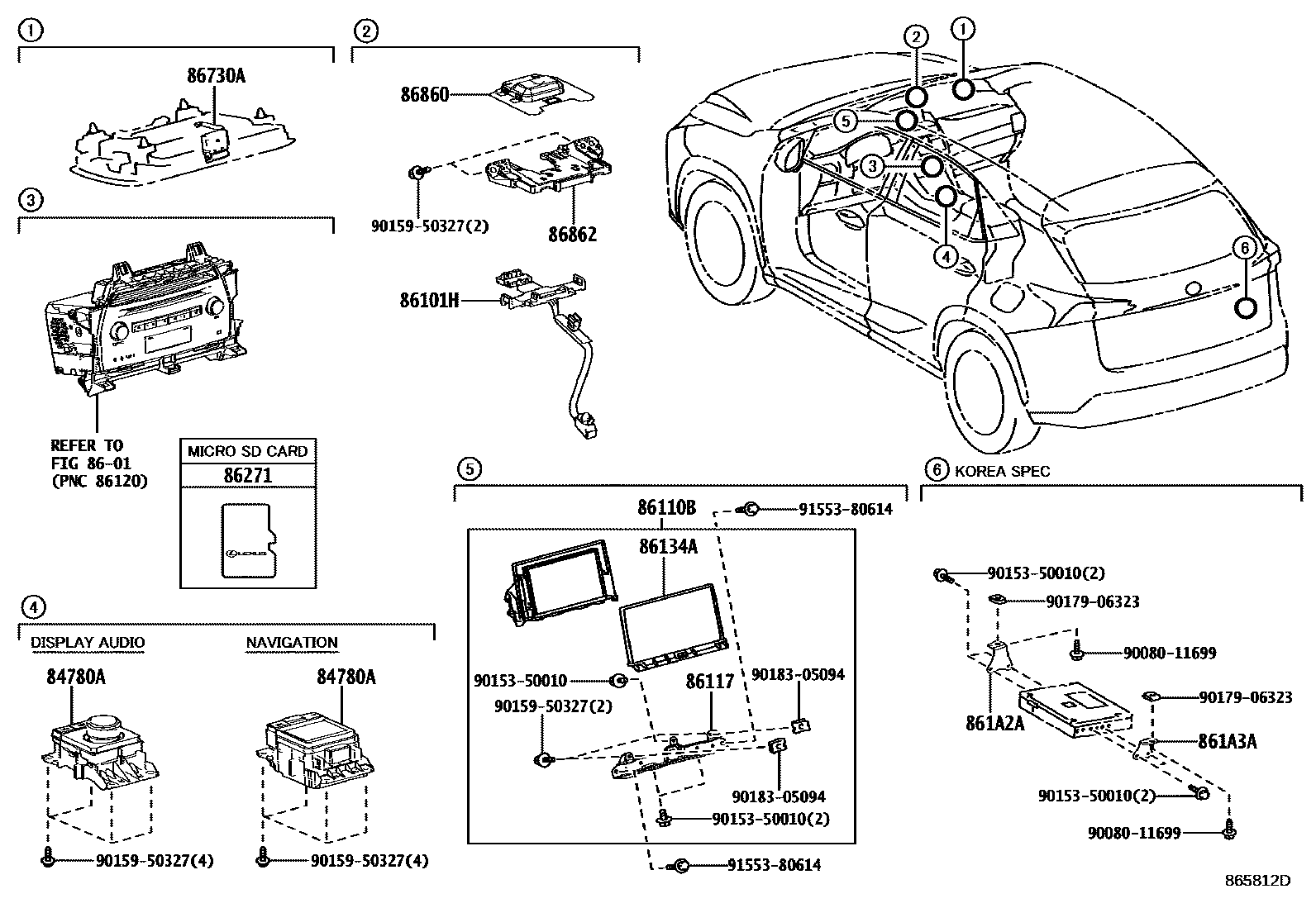

18 parts on this diagram · 2 diagrams in section
