8603NAVIGATION & FRONT MONITOR DISPLAY

→ Go to FIG 86-03

86120RECEIVER ASSY, RADIO

main86140-78260i201709-201810

PIONEER

main86140-78510i201810-201910

PIONEER

main86120-78010i201709-201810

PANASONIC,AUDIO-EMVN & 10SPEAKER&NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY); PANASONIC,STEERING COLUMN-POWER(TILT & TELESCOPIC)&NAVIGATION SYSTEM-WITH(10.3INCHDISPLAY)

main86120-78020i201709-201810

PANASONIC,CANADA SPEC&AUDIO-EMVN & 10SPEAKER&NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY)

main86120-78040i201709-201910

PIONEER,KOREA SPEC&AUDIO-EMVN & 10SPEAKER&NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY)

main86120-78500i201709-201910

PIONEER,KOREA SPEC&AUDIO-EMVN & 14SPEAKER&NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY)

main86120-78530i201810-201910

PANASONIC,AUDIO-EMVN & 10SPEAKER&NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY)

main86120-78540i201810-201910

PANASONIC,CANADA SPEC&AUDIO-EMVN & 10SPEAKER&NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY)

main86120-78590i201905-201910

PANASONIC,AUDIO-EMVN & 14SPEAKER&NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY)

main86120-78610supersedes 86140-78540i201910-202109

PANASONIC,AUDIO-EMVN & 10SPEAKER&NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY)

main86120-78620i201910-202109

PANASONIC,CANADA SPEC&AUDIO-EMVN & 10SPEAKER&NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY)

main86120-78630i201910-202109

PIONEER,KOREA SPEC&AUDIO-EMVN & 10SPEAKER&NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY)

main86120-78A30i201910-202109

PIONEER,KOREA SPEC&AUDIO-EMVN & 14SPEAKER&NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY)

main86120-78A60supersedes 86140-78540i201910-202109

PANASONIC,AUDIO-EMVN & 14SPEAKER&NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY)

main86120-78A70i201910-202109

PANASONIC,CANADA SPEC&AUDIO-EMVN & 14SPEAKER&NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY)

main86130-78040i201407-201709

FUJITSU TEN,ID100370,KOREA SPEC&AUDIO-EMVN & 10SPEAKER&SATELLITE RADIO-WITH(DAB)&NAVIGATION SYSTEM-WITH(KOREA SPEC)&MAYDAY SYSTEM-WITHOUT

main86130-78050i201407-201709

FUJITSU TEN,ID100371,KOREA SPEC&AUDIO-EMVN & 14SPEAKER&SATELLITE RADIO-WITH(DAB)&NAVIGATION SYSTEM-WITH(KOREA SPEC)&MAYDAY SYSTEM-WITHOUT

main86140-78010i201410-201609

PIONEER,ID=P10690; PIONEER,ID=P10690,USA POSSESSIONS SPEC(GUAM,PUERTO RICO)&SATELLITE RADIO-WITHOUT&MAYDAY SYSTEM-WITHOUT

main86140-78020i201410-201609

PIONEER,ID=P10689,CANADA SPEC&MAYDAY SYSTEM-WITHOUT

main86140-78170i201407-201709

PIONEER,ID=P10966,MAYDAY SYSTEM-WITHOUT

main86140-78230i201609-201709

PIONEER,ID=P11591; PIONEER,ID=P11591,USA POSSESSIONS SPEC(GUAM,PUERTO RICO)&SATELLITE RADIO-WITHOUT&MAYDAY SYSTEM-WITHOUT

main86140-78240i201609-201709

PIONEER,ID=P11590,CANADA SPEC&MAYDAY SYSTEM-WITHOUT

main86140-78270i201709-201810

PIONEER,CANADA SPEC

main86140-78520i201810-201910

PIONEER,CANADA SPEC

main86140-78550i201910-202109

PIONEER,CANADA SPEC

main86804-78010i201509-201709

PIONEER,ID=P10688,AUDIO-EMVN & 10SPEAKER&NAVIGATION SYSTEM-WITH(SD NAVIGATION); PIONEER,ID=P10688,NAVIGATION SYSTEM-WITH(SD NAVIGATION)

main86804-78020i201407-201709

PIONEER,ID=P10679,CANADA SPEC&AUDIO-EMVN & 10SPEAKER&NAVIGATION SYSTEM-WITH(SD NAVIGATION)&MAYDAY SYSTEM-WITHOUT

main86804-78270i201410-201709

PIONEER,ID=P10965,NAVIGATION SYSTEM-WITH(SD NAVIGATION)&MAYDAY SYSTEM-WITHOUT

86120AKNOB, RADIO RECEIVER SWITCH

main90010-22105×2i201410-201709

main90010-22127×2i201709

86190CADAPTER ASSY, STEREO JACK, NO.1

main86190-11010i201709-201905

main86190-24030i201905

main86190-78010supersedes 86190-48080i201407-201709

AUDIO-EMVN & 10SPEAKER; AUDIO-EMVN & 14SPEAKER

86211BRACKET, RADIO, NO.1

main86211-78010i201407-201608

main86211-78030i201709

86212BRACKET, RADIO, NO.2

main86212-78010i201407-201608

main86212-78030i201709

86280AMPLIFIER ASSY, STEREO COMPONENT

main86280-78010i201407-201709

main86280-78030i201709-201710

main86280-78031i201711-201910

main86280-78032i201910

main86280-0WC00i201407-201709

AUDIO-EMVN & 14SPEAKER

main86280-0WE60i201709-201710

AUDIO-EMVN & 14SPEAKER&NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY)

main86280-0WE61i201711-201809

AUDIO-EMVN & 14SPEAKER&NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY)

main86280-0WE62i201809-201909

AUDIO-EMVN & 14SPEAKER&NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY)

main86280-0WJ90i202007

AUDIO-EMVN & 14SPEAKER&NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY)

main86280-78020i201410-201709

NAVIGATION SYSTEM-WITH(SD NAVIGATION)

main86280-78040i201709-201710

AUDIO-EMVN & 10SPEAKER&NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY); STEERING COLUMN-POWER(TILT & TELESCOPIC)&NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY)

main86280-78041i201711-201809

AUDIO-EMVN & 10SPEAKER&NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY); STEERING COLUMN-POWER(TILT & TELESCOPIC)&NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY)

main86280-78042i201809-201905

STEERING COLUMN-POWER(TILT & TELESCOPIC)&NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY)

main86280-78110i201910-202007

AUDIO-EMVN & 14SPEAKER&NAVIGATION SYSTEM-WITH(10.3INCH DISPLAY)

86285BRACKET, AMPLIFIER, NO.1

main86285-78010i201407-201709

main86285-78040i201709

main86285-78020i201905

AUDIO-EMVN & 14SPEAKER

86286BRACKET, AMPLIFIER, NO.2

main86286-78010i201407-201608

main86286-78020i201709

main86286-78080i202007

AUDIO-EMVN & 14SPEAKER

9011906018

main90119-06018

9015350010

main90153-50010

9167380616

main91673-80616

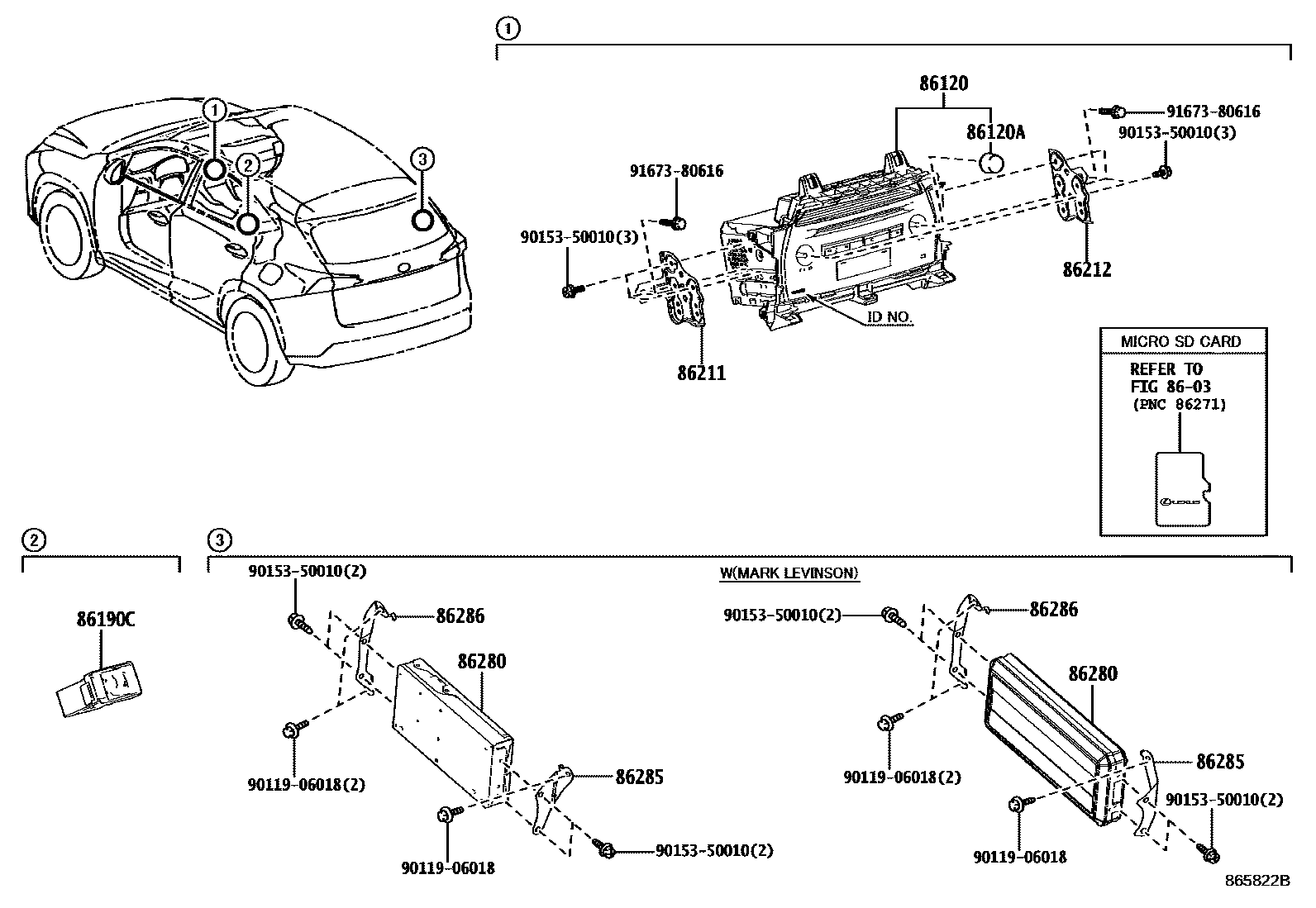

RADIO RECEIVER & AMPLIFIER & CONDENSER
