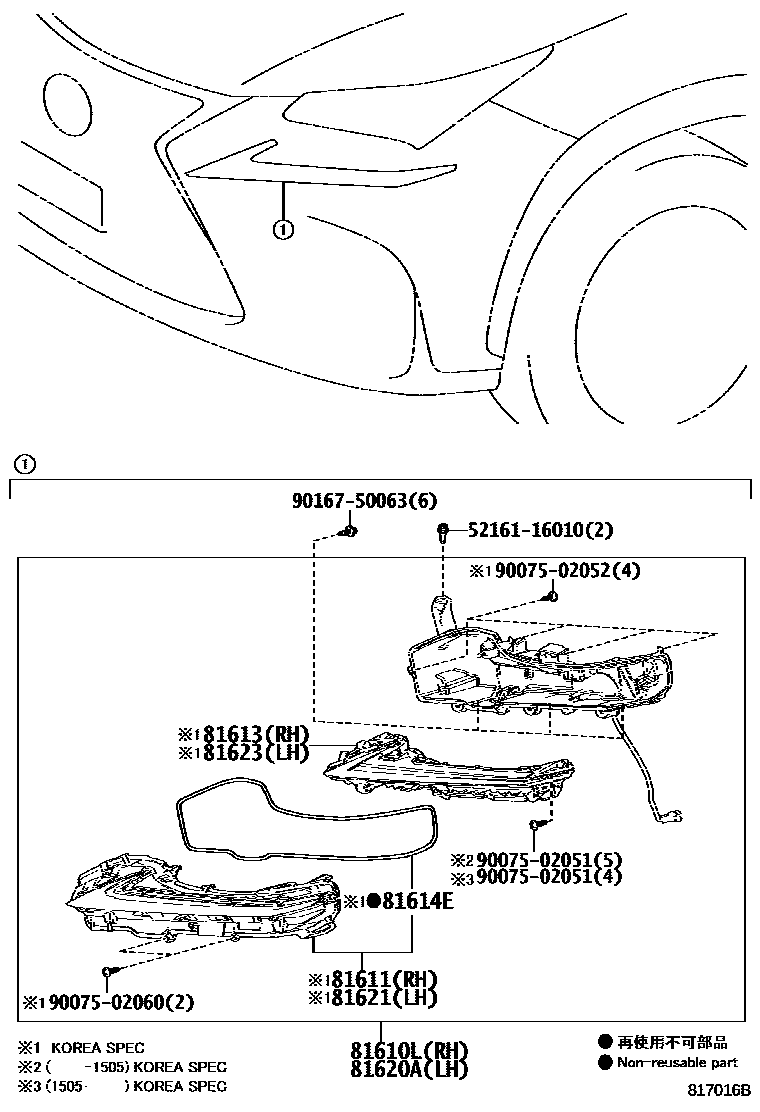

FRONT CLEARANCE LAMP

0001 1TURN(LED) 0002 1TURN(BULB)

81610LLAMP ASSY, CLEARANCE, RH

main81610-78020201410-201709

81611LENS, PARKING & CLEARANCE LAMP, RH

main81611-78040

81613UNIT ASSY, CLEARANCE LAMP LED, RH

main81613-78040

main81613-78060

81614EGASKET, CLEARANCE LAMP

81620ALAMP ASSY, CLEARANCE, LH

main81620-78020201410-201709

81621LENS, PARKING & CLEARANCE LAMP, LH

main81621-78040

81623UNIT ASSY, CLEARANCE LAMP LED, LH

main81623-78040

main81623-78060

5216116010CUSHION, REAR BUMPER GUARD, NO.1

main52161-16010

9007502051

main90075-02051

9007502052

main90075-02052

9007502060

main90075-02060

9016750063

main90167-50063

12 parts on this diagram · 2 diagrams in section
