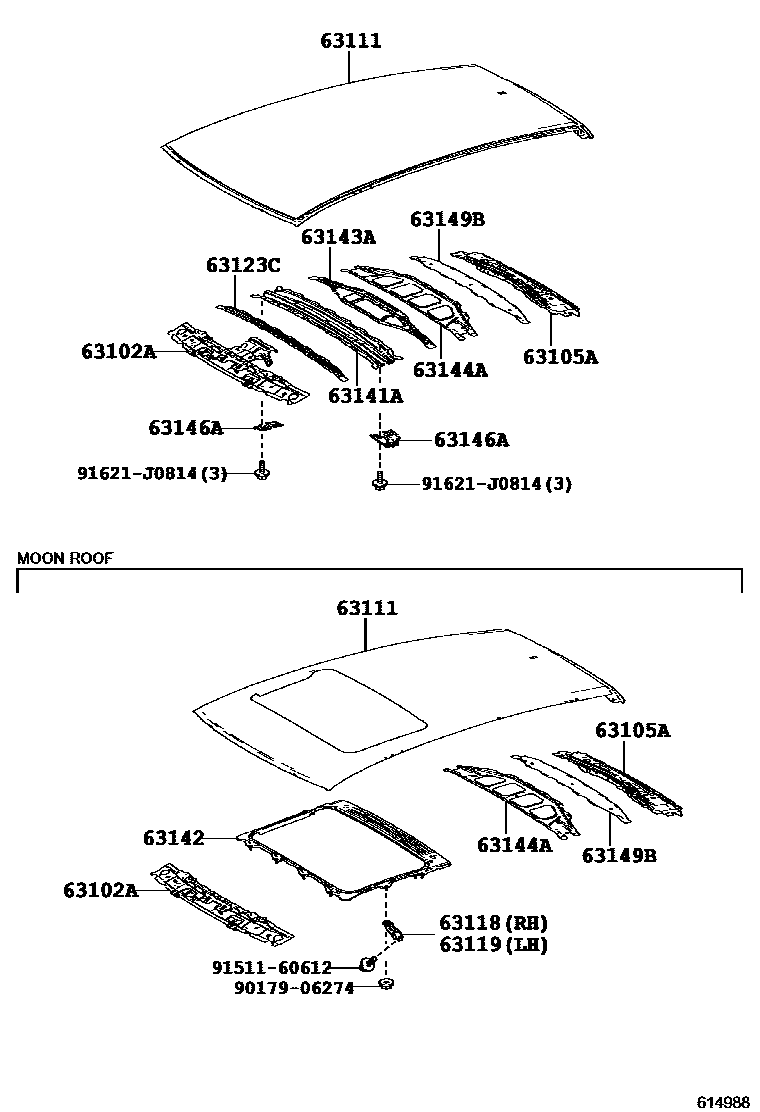

ROOF PANEL & BACK WINDOW GLASS

0001 1PANEL(NORMAL OR MOON ROOF) 0002 1HOUSING(MOON ROOF) 0003 1ROOF RAIL(NORMAL OR MOON ROOF

63102APANEL SUB-ASSY, WINDSHIELD HEADER

main63102-78900supersedes 63102-78901iAGZ1#,AYZ15201709

ROOF PANEL-NORMAL ROOF; ROOF RAIL-WITHOUT&ROOF PANEL-NORMAL ROOF

63105AFRAME SUB-ASSY, BACK DOOR OPENING

main63105-78010iAGZ1#,AYZ15201407-201704

main63105-78011iAGZ1#,AYZ15201705-201707

63111PANEL, ROOF

main63111-78010supersedes 63111-78050iAGZ1#,AYZ15201709

ROOF PANEL-NORMAL ROOF

main63111-78030supersedes 63111-78050iAGZ1#,AYZ15201709

ROOF RAIL-WITHOUT&ROOF PANEL-NORMAL ROOF

main63111-78070supersedes 63111-78050iAGZ1#,AYZ15201407-201709

ROOF RAIL-WITHOUT

63118SUPPORT, ROOF PANEL, RH

main63118-78010iAYZ10201407-201608

63119SUPPORT, ROOF PANEL, LH

main63119-78010iAGZ1#,AYZ15201407-201709

63123CREINFORCEMENT, ROOF PANEL

main63123-78010iAGZ1#,AYZ15201407-201709

ROOF PANEL-NORMAL ROOF; ROOF RAIL-WITHOUT&ROOF PANEL-NORMAL ROOF

63141ASTRENGTH, ROOF PANEL SIDE, NO.1

main63141-78010iAYZ10201407-201608

ROOF PANEL-NORMAL ROOF

63142REINFORCEMENT, ROOF PANEL, NO.2

main63142-78010iAYZ10201407-201608

63143AREINFORCEMENT, ROOF PANEL

main63143-78010iAYZ10201407-201608

ROOF PANEL-NORMAL ROOF

63144AREINFORCEMENT, ROOF PANEL, NO.4

main63144-78010iAYZ10201407-201608

63146ABRACKET, ROOF PANEL REINFORCEMENT, NO.1

main63146-78010×2iAGZ1#,AYZ15201709

ROOF PANEL-NORMAL ROOF; ROOF RAIL-WITHOUT&ROOF PANEL-NORMAL ROOF

63149BREINFORCEMENT, ROOF PANEL, NO.1 REAR

main63149-78010iAGZ1#,AYZ15201407-201709

9017906274

main90179-06274

9151160612

main91511-60612

91621J0814

main91621-J0814

15 parts on this diagram · 3 diagrams in section
