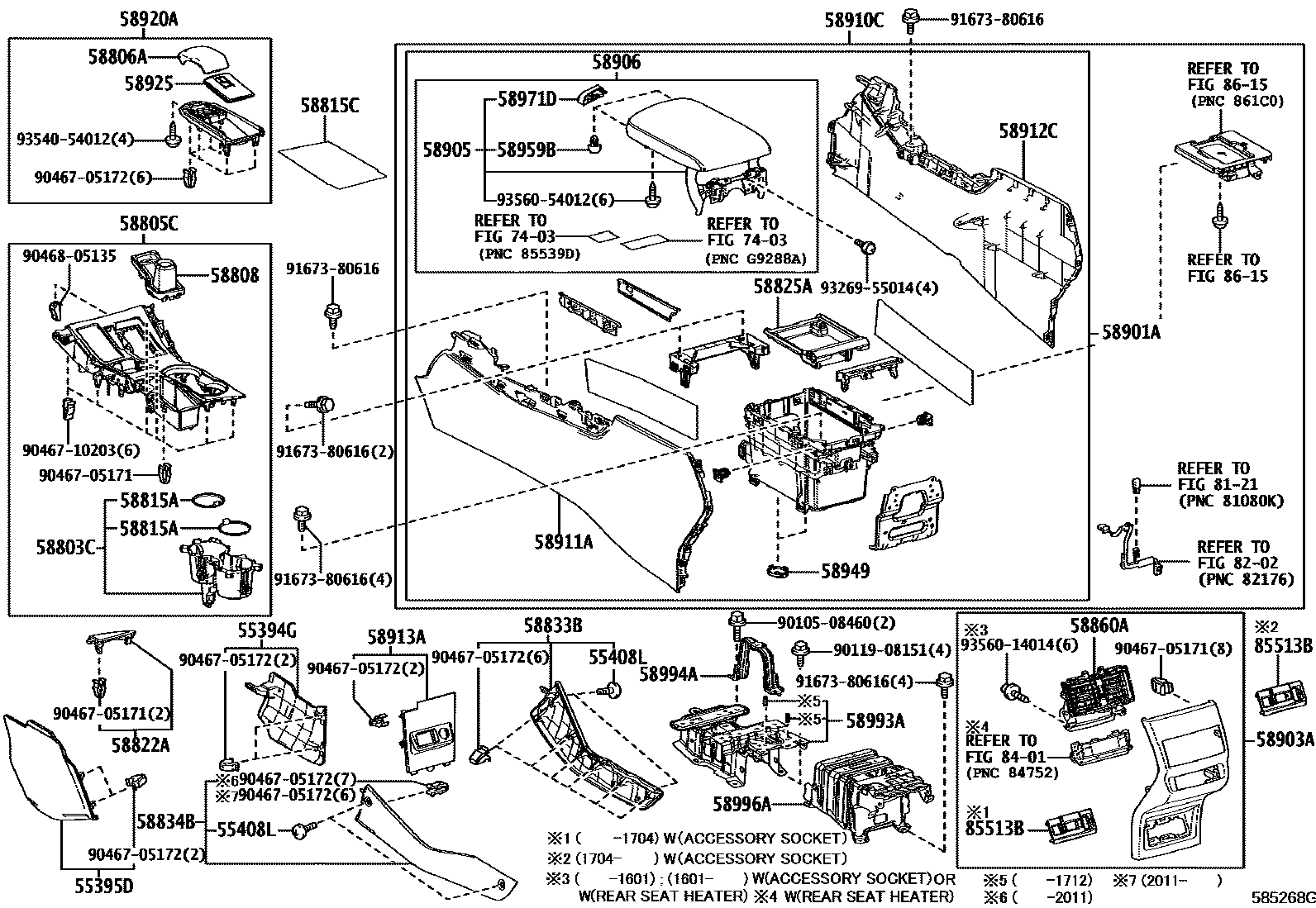

CONSOLE BOX & BRACKET

55394GCOVER, INSTRUMENT PANEL BRACE, INNER NO.1 RH

main55394-78010-C0i201709

BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9#; BLACK,TRIM0#,2#,3#,4#,6#,7#,8#,9#

55395DCOVER, INSTRUMENT PANEL BRACE, INNER NO.1 LH

main55395-78010-C0i201407-201709

BLACK,TRIM0#,2#,3#,4#,5#

55408LSCREW SUB-ASSY, INSTRUMENT CLUSTER FINISH END

main55408-78050×4i201407-201608

58803CBOX SUB-ASSY, CONSOLE CUP HOLDER

main58803-78010i201407-201608

58805CPANEL SUB-ASSY, CONSOLE, UPPER REAR

main58805-78010-B0i201407-201602

LT.GRAY,TRIM0#,2#,3#,4#,5#

main58805-78010-D0i201410-201602

DK.ROSE,TRIM91,93,94,95

main58805-78011-B0i201603-201709

LT.GRAY NO.831,TRIM0#,2#,3#,4#,5#; LT.GRAY NO.831,TRIM0#,2#,3#,4#,5#,90,92

main58805-78011-D0i201603-201709

DK.ROSE NO.59,TRIM91,93,94,95

main58805-78030-C0i201709

BLACK/DK.ROSE,TRIM35,36,37

main58805-78030-C1i201711-201905

BLACK/LT.GRAY,TRIM0#,2#,3#,4#,50,51,52,6#,7#,9#

main58805-78030-C2i201711

BLACK/MUSTARD YELLOW,TRIM51,52

main58805-78030-C3i201905

BLACK/ORANGE,TRIM44,45,46,47

main58805-78030-C4i201910-202007

BLACK/IVORY,TRIM28

main58805-78030-C6i202007

BLACK/BLUE,TRIM8#

58806APOCKET SUB-ASSY, CONSOLE BOX

main58806-78010-C0i201410-201508

BLACK/DK.ROSE,TRIM91,93,94,95

main58806-78010-C1i201407-201508

BLACK/LT.GRAY,TRIM0#,2#,3#,4#,5#

main58806-78020-C0i201509-201709

BLACK/DK.ROSE,TRIM91,93,94,95

main58806-78020-C1i201509-201709

BLACK/LT.GRAY,TRIM0#,2#,3#,4#,5#; BLACK/LT.GRAY,TRIM0#,2#,3#,4#,5#,90,92

main58806-78030-C0i201709

BLACK/DK.ROSE,TRIM35,36,37

main58806-78030-C1i201709-201905

BLACK/LT.GRAY,TRIM0#,2#,3#,4#,6#,7#,9#

main58806-78030-C2i201711

BLACK/MUSTARD YELLOW,TRIM51,52

main58806-78030-C3i201905

BLACK/ORANGE,TRIM44,45,46,47

main58806-78030-C4i201910-202007

BLACK/IVORY,TRIM28

main58806-78030-C6i202007

BLACK/BLUE,TRIM8#

58808COVER SUB-ASSY, SHIFTING HOLE

main58808-78010-B0i201410-201709

LT.GRAY,TRIM0#,2#,3#,4#,5#,90,92

main58808-78010-D0i201410-201709

DK.ROSE,TRIM91,93,94,95

main58808-78011-C0i201709

BLACK/DK.ROSE,TRIM35,36,37

main58808-78011-C1i201910-202007

BLACK/LT.GRAY,TRIM0#,2#,3#,4#,50,51,52,6#,7#,9#

main58808-78011-C2i201711

BLACK/MUSTARD YELLOW,TRIM51,52

main58808-78011-C3i201905

BLACK/ORANGE,TRIM44,45,46,47

main58808-78011-C4i201910-202007

BLACK/IVORY,TRIM28

main58808-78011-C6i202007

BLACK/BLUE,TRIM8#

58815ACARPET, CONSOLE BOX

main58823-78010×2i201407-201709

58815CCARPET, CONSOLE BOX

main58815-78020supersedes 58815-78010i201407-201608

WIRELESS CHARGER-WITH

58822APANEL, CONSOLE, UPPER REAR

main58822-78010i201407-201608

main58822-78030i201709

58825APOCKET, CONSOLE BOX

main58825-78020-C0supersedes 58825-78010-C0i201709

WIRELESS CHARGER-WITH,BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9#; WIRELESS CHARGER-WITH,BLACK,TRIM0#,2#,3#,4#,6#,7#,8#,9#

58833BGARNISH, CONSOLE UPPER PANEL, NO.1

main58833-78010-C1i201410-201512

BLACK/LT.GRAY,TRIM0#,2#,3#,4#,5#,90,92

main58833-78010-C2i201410-201512

BLACK/DK.ROSE,TRIM91,93,94,95

main58833-78011-C1i201601-201709

BLACK/LT.GRAY,TRIM0#,2#,3#,4#,5#; BLACK/LT.GRAY,TRIM0#,2#,3#,4#,5#,90,92

main58833-78011-C2i201601-201709

BLACK/DK.ROSE,TRIM91,93,94,95

main58833-78012-C3i201709

BLACK/DK.ROSE,TRIM36,37

main58833-78012-C4i201709

BLACK/MUSTARD YELLOW,TRIM5#

main58833-78012-C5i201709-201905

BLACK/LT.GRAY,TRIM0#,2#,3#,4#,6#,7#,9#; BLACK/LT.GRAY,TRIM0#,2#,30,31,32,33,4#,6#,7#,9#

main58833-78012-C6i201905

BLACK/ORANGE,TRIM44,45,46,47

main58833-78012-C7i201910-202007

BLACK/IVORY,TRIM28

main58833-78012-C9i202007

BLACK/BLUE,TRIM8#

58834BGARNISH, CONSOLE UPPER PANEL, NO.2

main58834-78010-C1i201407-201512

BLACK/LT.GRAY,TRIM0#,2#,3#,4#,5#

main58834-78010-C2i201410-201512

BLACK/DK.ROSE,TRIM91,93,94,95

main58834-78011-C1i201601-201709

BLACK/LT.GRAY,TRIM0#,2#,3#,4#,5#; BLACK/LT.GRAY,TRIM0#,2#,3#,4#,5#,90,92

main58834-78011-C2i201601-201709

BLACK/DK.ROSE,TRIM91,93,94,95

main58834-78012-C3i201709

BLACK/DK.ROSE,TRIM36,37

main58834-78012-C4i201709

BLACK/MUSTARD YELLOW,TRIM5#

main58834-78012-C5i201905-201910

BLACK/LT.GRAY,TRIM0#,2#,3#,40,41,42,43,6#,7#,9#

main58834-78012-C6i201905

BLACK/ORANGE,TRIM44,45,46,47

main58834-78012-C7i201910-202007

BLACK/IVORY,TRIM28

main58834-78012-C9i202007

BLACK/BLUE,TRIM8#

58860AREGISTER ASSY, CONSOLE BOX

main58860-78010i201709

58901ABOX SUB-ASSY, CONSOLE, REAR

main58901-78010-C0i201410-201608

WIRELESS CHARGER-WITH,BLACK/DK.ROSE,TRIM91,93,94,95

main58901-78010-C1i201407-201608

WIRELESS CHARGER-WITH,BLACK/LT.GRAY,TRIM0#,2#,3#,4#,5#

main58901-78011-C0i201609-201611

WIRELESS CHARGER-WITH,BLACK/DK.ROSE,TRIM91,93,94,95

main58901-78011-C1i201609-201611

WIRELESS CHARGER-WITH,BLACK/LT.GRAY,TRIM0#,2#,3#,4#,5#; WIRELESS CHARGER-WITH,BLACK/LT.GRAY,TRIM0#,2#,3#,4#,5#,90,92

main58901-78012-C0i201612-201709

WIRELESS CHARGER-WITH,BLACK/DK.ROSE,TRIM91,93,94,95

main58901-78012-C1i201612-201709

WIRELESS CHARGER-WITH,BLACK/LT.GRAY,TRIM0#,2#,3#,4#,5#; WIRELESS CHARGER-WITH,BLACK/LT.GRAY,TRIM0#,2#,3#,4#,5#,90,92

main58901-78013-C2i201709

WIRELESS CHARGER-WITH,BLACK/DK.ROSE,TRIM36,37

main58901-78013-C3i201711

WIRELESS CHARGER-WITH,BLACK/MUSTARD YELLOW,TRIM5#

main58901-78013-C4i201805-201905

WIRELESS CHARGER-WITH,BLACK/LT.GRAY,TRIM0#,2#,3#,4#,6#,7#; WIRELESS CHARGER-WITH,BLACK/LT.GRAY,TRIM0#,2#,30,31,32,33,4#,6#,7#

main58901-78013-C5i201905

WIRELESS CHARGER-WITH,BLACK/ORANGE,TRIM44,45,46,47

main58901-78013-C6i201910-201911

WIRELESS CHARGER-WITH,BLACK/IVORY,TRIM28

main58901-78013-C8i202007

WIRELESS CHARGER-WITH,BLACK/BLUE,TRIM8#

58903APANEL SUB-ASSY, CONSOLE REAR END

main58903-78020-C0supersedes 58903-78011-C0i201407-201704

ACCESSORY SOCKET-WITH(AC120V 100W),BLACK,TRIM0#,2#,3#,4#,5#

main58903-78021-C0supersedes 58903-78011-C0i201704-201709

ACCESSORY SOCKET-WITH(AC120V 100W),BLACK,TRIM0#,2#,3#,4#,5#; ACCESSORY SOCKET-WITH(AC120V 100W),BLACK,TRIM0#,2#,3#,4#,5#,9#

main58903-78040-C0i201709

SEAT HEATER-WITH(FR & RR) & WITH(VENTILATION SEAT),BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9#; SEAT HEATER-WITH(FR & RR) & WITH(VENTILATION SEAT),BLACK,TRIM0#,2#,3#,4#,6#,7#,9#

main58903-78050-C0supersedes 58903-78011-C0i201709

SEAT HEATER-WITH(FR & RR) & WITH(VENTILATION SEAT)&ACCESSORY SOCKET-WITH(AC120V 100W),BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9#; SEAT HEATER-WITH(FR & RR) & WITH(VENTILATION SEAT)&ACCESSORY SOCKET-WITH(AC120V 100W),BLACK,TRIM0#,2#,3#,4#,6#,7#,9#

58905DOOR SUB-ASSY, CONSOLE COMPARTMENT

main58905-78010-C1i201410-201709

BLACK/LT.GRAY,TRIM0#,2#,3#,4#,5#,90,92

main58905-78010-C2i201410-201709

BLACK/DK.ROSE,TRIM91,93,94,95

main58905-78011-C3i201709

BLACK/DK.ROSE,TRIM36,37

main58905-78011-C4i201711

BLACK/MUSTARD YELLOW,TRIM5#

main58905-78011-C5i201709-201905

BLACK/LT.GRAY,TRIM0#,2#,3#,4#,6#,7#,9#; BLACK/LT.GRAY,TRIM0#,2#,30,31,32,33,4#,6#,7#,9#

main58905-78011-C6i201905

BLACK/ORANGE,TRIM44,45,46,47

main58905-78011-C7i201910-202007

BLACK/IVORY,TRIM28

main58905-78011-C9i202007

BLACK/BLUE,TRIM8#

58906DOOR SUB-ASSY, UPPER CONSOLE

main58906-78030-C0supersedes 58906-78010-C0i201410-201608

WIRELESS CHARGER-WITH,BLACK/DK.ROSE,TRIM91,93,94,95

main58906-78030-C1supersedes 58906-78010-C1i201410-201608

WIRELESS CHARGER-WITH,BLACK/LT.GRAY,TRIM0#,2#,3#,4#,5#,90,92

main58906-78031-C0supersedes 58906-78010-C0i201609-201709

WIRELESS CHARGER-WITH,BLACK/DK.ROSE,TRIM91,93,94,95

main58906-78031-C1i201609-201709

WIRELESS CHARGER-WITH,BLACK/LT.GRAY,TRIM0#,2#,3#,4#,5#; WIRELESS CHARGER-WITH,BLACK/LT.GRAY,TRIM0#,2#,3#,4#,5#,90,92

main58906-78032-C2supersedes 58906-78011-C2i201709

WIRELESS CHARGER-WITH,BLACK/DK.ROSE,TRIM36,37

main58906-78032-C3supersedes 58906-78011-C3i201711

WIRELESS CHARGER-WITH,BLACK/MUSTARD YELLOW,TRIM5#

main58906-78032-C4supersedes 58906-78011-C4i201709-201905

WIRELESS CHARGER-WITH,BLACK/LT.GRAY,TRIM0#,2#,3#,4#,6#,7#,9#; WIRELESS CHARGER-WITH,BLACK/LT.GRAY,TRIM0#,2#,30,31,32,33,4#,6#,7#,9#

main58906-78032-C5supersedes 58906-78011-C5i201905

WIRELESS CHARGER-WITH,BLACK/ORANGE,TRIM44,45,46,47

main58906-78032-C6supersedes 58906-78011-C6i201910-202007

WIRELESS CHARGER-WITH,BLACK/IVORY,TRIM28

main58906-78032-C8supersedes 58906-78011-C8i202007

WIRELESS CHARGER-WITH,BLACK/BLUE,TRIM8#

58910CBOX ASSY, CONSOLE, REAR

main58910-78012-C5i201910-202007

BLACK/LT.GRAY,TRIM0#,2#,3#,40,41,42,43,6#,7#,9#

main58910-78012-C6i201905

BLACK/ORANGE,TRIM44,45,46,47

main58910-78012-C7i201910-202007

BLACK/IVORY,TRIM28

main58910-78030-C1supersedes 58910-78010-C1i201410-201505

WIRELESS CHARGER-WITH,BLACK/LT.GRAY,TRIM0#,2#,3#,4#,5#,90,91,92

main58910-78030-C2supersedes 58910-78010-C2i201410-201505

WIRELESS CHARGER-WITH,BLACK/DK.ROSE,TRIM91,93,94,95

main58910-78031-C1supersedes 58910-78011-C1i201506-201602

WIRELESS CHARGER-WITH,BLACK/LT.GRAY,TRIM0#,2#,3#,4#,5#; WIRELESS CHARGER-WITH,BLACK/LT.GRAY,TRIM0#,2#,3#,4#,5#,90,92

main58910-78031-C2supersedes 58910-78011-C2i201506-201602

WIRELESS CHARGER-WITH,BLACK/DK.ROSE,TRIM91,93,94,95

main58910-78032-C1supersedes 58910-78011-C1i201603-201608

WIRELESS CHARGER-WITH,BLACK/LT.GRAY,TRIM0#,2#,3#,4#,5#; WIRELESS CHARGER-WITH,BLACK/LT.GRAY,TRIM0#,2#,3#,4#,5#,90,92

main58910-78032-C2supersedes 58910-78011-C2i201603-201608

WIRELESS CHARGER-WITH,BLACK/DK.ROSE,TRIM91,93,94,95

main58910-78033-C1i201609-201709

WIRELESS CHARGER-WITH,BLACK/LT.GRAY,TRIM0#,2#,3#,4#,5#; WIRELESS CHARGER-WITH,BLACK/LT.GRAY,TRIM0#,2#,3#,4#,5#,90,92

main58910-78033-C2supersedes 58910-78011-C2i201609-201709

WIRELESS CHARGER-WITH,BLACK/DK.ROSE,TRIM91,93,94,95

main58910-78034-C3supersedes 58910-78012-C3i201709-201805

WIRELESS CHARGER-WITH,BLACK/DK.ROSE,TRIM36,37

main58910-78034-C4supersedes 58910-78012-C4i201711-201805

WIRELESS CHARGER-WITH,BLACK/MUSTARD YELLOW,TRIM5#

main58910-78034-C5i201709-201805

WIRELESS CHARGER-WITH,BLACK/LT.GRAY,TRIM0#,2#,3#,4#,6#,7#,9#; WIRELESS CHARGER-WITH,BLACK/LT.GRAY,TRIM0#,2#,30,31,32,33,4#,6#,7#,9#

main58910-78035-C3i201805-201910

WIRELESS CHARGER-WITH,BLACK/DK.ROSE,TRIM36,37

main58910-78035-C4i201805-201910

WIRELESS CHARGER-WITH,BLACK/MUSTARD YELLOW,TRIM5#

main58910-78035-C5i201905-201910

WIRELESS CHARGER-WITH,BLACK/LT.GRAY,TRIM0#,2#,3#,40,41,42,43,6#,7#

main58910-78035-C6i201905-201910

WIRELESS CHARGER-WITH,BLACK/ORANGE,TRIM44,45,46,47

main58910-78036-C3supersedes 58910-78012-C3i201911

WIRELESS CHARGER-WITH,BLACK/DK.ROSE,TRIM36,37

main58910-78036-C4supersedes 58910-78012-C4i201911

WIRELESS CHARGER-WITH,BLACK/MUSTARD YELLOW,TRIM5#

main58910-78036-C5i201911

WIRELESS CHARGER-WITH,BLACK/LT.GRAY,TRIM0#,2#,3#,40,41,42,43,6#,7#

main58910-78036-C6i201911

WIRELESS CHARGER-WITH,BLACK/ORANGE,TRIM44,45,46,47

main58910-78036-C9supersedes 58910-78012-C9i202007

WIRELESS CHARGER-WITH,BLACK/BLUE,TRIM8#

58911APANEL, BOX SIDE, NO.1

main58911-78010-C0i201709

BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9#; BLACK,TRIM0#,2#,3#,4#,6#,7#,8#,9#

58912CPANEL, BOX SIDE, NO.2

main58912-78010-C0i201410-201709

BLACK,TRIM0#,2#,3#,4#,5#,9#

58913APANEL, BOX, NO.3

main58913-78010supersedes 58913-78050i201407-201709

AUDIO-EMVN & 10SPEAKER; AUDIO-EMVN & 14SPEAKER

58920AARMREST ASSY, REAR CONSOLE

main58920-78010-C0i201410-201508

BLACK/DK.ROSE,TRIM91,93,94,95

main58920-78010-C1i201407-201508

BLACK/LT.GRAY,TRIM0#,2#,3#,4#,5#

main58920-78030-C0i201509-201709

BLACK/DK.ROSE,TRIM91,93,94,95

main58920-78030-C1i201509-201709

BLACK/LT.GRAY,TRIM0#,2#,3#,4#,5#; BLACK/LT.GRAY,TRIM0#,2#,3#,4#,5#,90,92

main58920-78050-C0i201709

BLACK/DK.ROSE,TRIM35,36,37

main58920-78050-C1i201711-201905

BLACK/LT.GRAY,TRIM0#,2#,3#,4#,50,51,52,6#,7#,9#

main58920-78050-C2i201711

BLACK/MUSTARD YELLOW,TRIM51,52

main58920-78050-C3i201905

BLACK/ORANGE,TRIM44,45,46,47

main58920-78050-C4i201910-202007

BLACK/IVORY,TRIM28

main58920-78050-C6i202007

BLACK/BLUE,TRIM8#

58925LID, REAR CONSOLE ARMREST

main58925-78010-C0i201410-201508

BLACK/DK.ROSE,TRIM91,93,94,95

main58925-78010-C1i201407-201508

BLACK/LT.GRAY,TRIM0#,2#,3#,4#,5#

main58925-78030-C0i201509-201709

BLACK/DK.ROSE,TRIM91,93,94,95

main58925-78030-C1i201509-201709

BLACK/LT.GRAY,TRIM0#,2#,3#,4#,5#; BLACK/LT.GRAY,TRIM0#,2#,3#,4#,5#,90,92

main58925-78040-C0i201709

BLACK/DK.ROSE,TRIM35,36,37

main58925-78040-C1i201709-201905

BLACK/LT.GRAY,TRIM0#,2#,3#,4#,6#,7#,9#

main58925-78040-C2i201711

BLACK/MUSTARD YELLOW,TRIM51,52

main58925-78040-C3i201905

BLACK/ORANGE,TRIM44,45,46,47

main58925-78040-C4i201910-202007

BLACK/IVORY,TRIM28

main58925-78040-C6i202007

BLACK/BLUE,TRIM8#

58949PLATE, CONSOLE BOX

main58217-33010×2i201407-201608

58959BCUSHION, CONSOLE COMPARTMENT DOOR

main58959-60060×2i201407-201608

58971DLEVER, CONSOLE COMPARTMENT DOOR LOCK

main58971-78010-C0i201407-201709

BLACK,TRIM0#,2#,3#,4#,5#

58993ABRACKET, CONSOLE BOX MOUNTING, LOWER

main58993-78010i201407-201608

main58993-78011i201712

58994ABRACKET, CONSOLE BOX MOUNTING, NO.4

main58994-78010i201407-201608

58996ABRACKET, CONSOLE BOX MOUNTING, NO.2

main58996-78010i201407-201608

7403CAUTION PLATE (EXTERIOR & INTERIOR)

→ Go to FIG 74-03

8121INTERIOR LAMP

→ Go to FIG 81-21

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

85513BCOVER, CIGARETTE LIGHTER

main85513-78010i201407-201608

ACCESSORY SOCKET-WITH(AC120V 100W)

8615TELEPHONE & MAYDAY

→ Go to FIG 86-15

9010508460

main90105-08460

9011908151

main90119-08151

9046705171

main90467-05171

9046705172

main90467-05172

9046710203

main90467-10203

9046805135

main90468-05135

9167380616

main91673-80616

9326955014

main93269-55014

9354054012

main93540-54012

9356014014

main93560-14014

9356054012

main93560-54012

47 parts on this diagram · 2 diagrams in section
