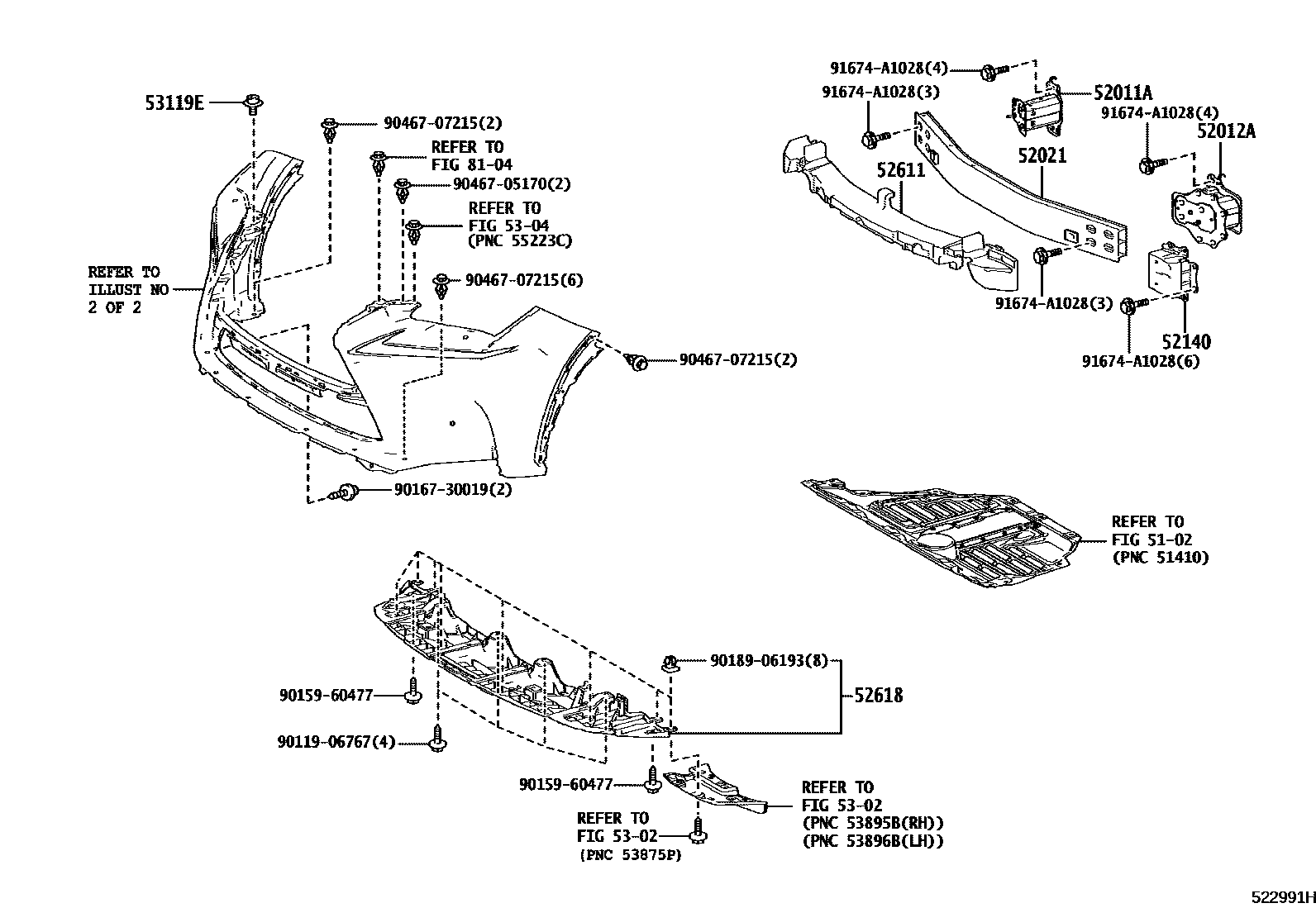

FRONT BUMPER & BUMPER STAY

0001 1KOREA SPEC 0002 1KOREA SPEC 0003 1 0004 1 0005 1F SPORTS 0006 1F SPORTS 0007 1 0008 1 0009 1KOREA SPEC 0010 1KOREA SPEC 0011 1F SPORT 0012 1F SPORT

5102SUSPENSION CROSSMEMBER & UNDER COVER

→ Go to FIG 51-02

52011AARM SUB-ASSY, FRONT BUMPER, RH

main52011-78020iAYZ10201407-201709

52012AARM SUB-ASSY, FRONT BUMPER, LH

main52012-78040iAGZ1#,AYZ15201407-201709

52021REINFORCEMENT SUB-ASSY, FRONT BUMPER

main52021-78020iAGZ1#,AYZ15201709-202109

main52021-78040iAYZ10201410-201709

52140BRACKET ASSY, FRONT BUMPER SIDE MOUNTING, LH

main52140-78010iAGZ1#,AYZ15201407-201709

52611ABSORBER, FRONT BUMPER ENERGY

main52614-78020iAGZ1#,AYZ15201410-201709

main52614-78050iAGZ1#,AYZ15201709

52618ABSORBER, FRONT BUMPER, LOWER

main52618-78010

5302HOOD & FRONT FENDER

→ Go to FIG 53-02

5304FRONT FENDER APRON & DASH PANEL

→ Go to FIG 53-04

53119EPROTECTOR, RADIATOR GRILLE

main53119-33141iAGZ1#,AYZ15201410-201709

8104FRONT CLEARANCE LAMP

→ Go to FIG 81-04

9011906767

main90119-06767

9015960477

main90159-60477

9016730019

main90167-30019

9018906193

main90189-06193

9046705170

main90467-05170

9046707215

main90467-07215

91674A1028

main91674-A1028

18 parts on this diagram · 12 diagrams in section
