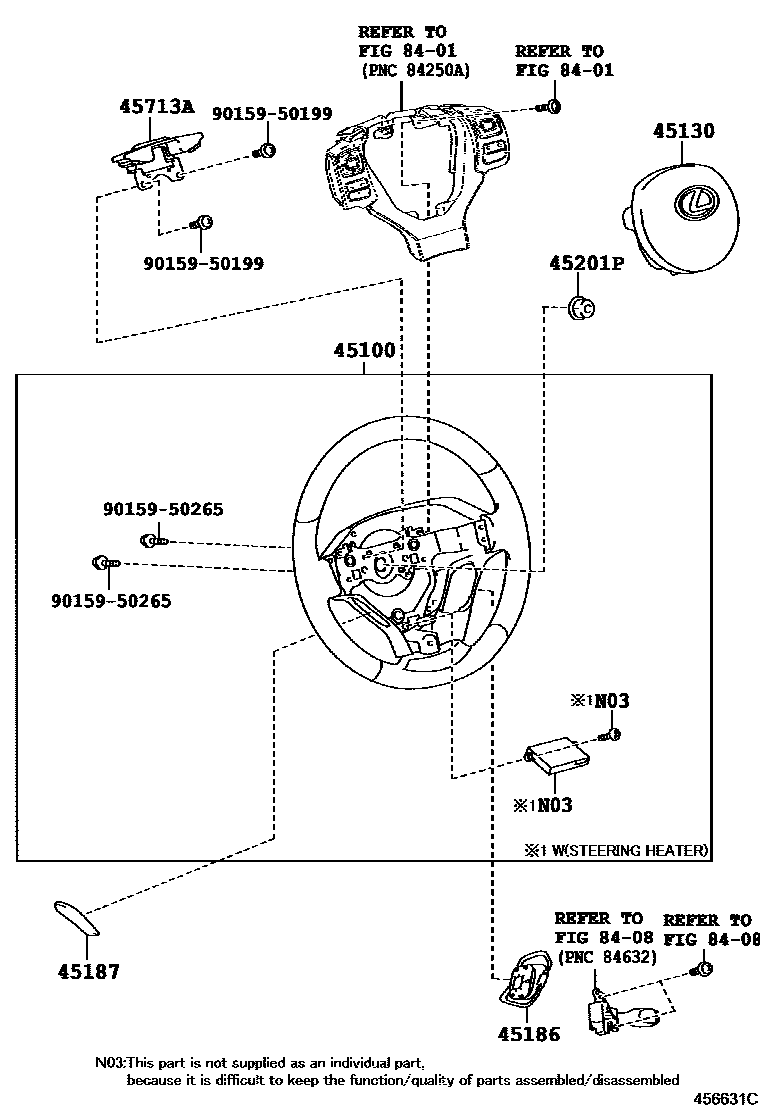

STEERING WHEEL

45100WHEEL ASSY, STEERING

main45100-53481-C0i201709-201910

3-SPOKE,LEATHER,BLACK & LT.GRAY,TRIM0#,2#,3#,4#,6#,7#,9#

main45100-53460-C0i201410-201709

3-SPOKE,LEATHER,STEERING WHEEL-LEATHER(DIMPLED),W(PADDLE SWITCH),BLACK & LT.GRAY,TRIM90,92

main45100-53460-C1i201410-201709

3-SPOKE,LEATHER,STEERING WHEEL-LEATHER(DIMPLED),W(PADDLE SWITCH),BLACK & DK.ROSE,TRIM91,93,94,95

main45100-53470-C0i201410-201502

3-SPOKE,LEATHER,STEERING WHEEL-LEATHER(DIMPLED),W(HEATER&PADDLE SWITCH),BLACK & LT.GRAY,TRIM90,92

main45100-53470-C1i201410-201502

3-SPOKE,LEATHER,STEERING WHEEL-LEATHER(DIMPLED),W(HEATER&PADDLE SWITCH),BLACK & DK.ROSE,TRIM91,93,94,95

main45100-53471-C0i201503-201709

3-SPOKE,LEATHER,STEERING WHEEL-LEATHER(DIMPLED),W(HEATER&PADDLE SWITCH),BLACK & LT.GRAY,TRIM90,92

main45100-53471-C1i201503-201709

3-SPOKE,LEATHER,STEERING WHEEL-LEATHER(DIMPLED),W(HEATER&PADDLE SWITCH),BLACK & DK.ROSE,TRIM91,93,94,95

main45100-53491-C0i201709-201905

3-SPOKE,LEATHER,STEERING WHEEL-LEATHER, W(HEATER & PADDLE SWITCH),BLACK & LT.GRAY,TRIM0#,2#,3#,4#,6#,7#,9#

main45100-53491-C5i201905

3-SPOKE,LEATHER,STEERING WHEEL-LEATHER, W(HEATER & PADDLE SWITCH),BLACK & ORANGE NO.85,TRIM44,45,46,47

main45100-53491-C6supersedes 45100-53481-C7i201910

3-SPOKE,LEATHER,STEERING WHEEL-LEATHER, W(HEATER & PADDLE SWITCH),BLACK & IVORY,TRIM28

main45100-53501-C1i201709-201805

3-SPOKE,LEATHER,STEERING WHEEL-LEATHER(DIMPLED),W(PADDLE SWITCH),BLACK & LT.GRAY,TRIM0#,2#,51,52

main45100-53501-C2i201709-201805

3-SPOKE,LEATHER,STEERING WHEEL-LEATHER(DIMPLED),W(PADDLE SWITCH),BLACK & DK.ROSE NO.59,TRIM3#

main45100-53501-C4i201709-201805

3-SPOKE,LEATHER,STEERING WHEEL-LEATHER(DIMPLED),W(PADDLE SWITCH),BLACK/MUSTARD YELLOW,TRIM51,52

main45100-53511-C1i201709-201805

3-SPOKE,LEATHER,STEERING WHEEL-LEATHER(DIMPLED),W(HEATER&PADDLE SWITCH),BLACK & LT.GRAY,TRIM0#,2#,51,52

main45100-53511-C2i201709-201805

3-SPOKE,LEATHER,STEERING WHEEL-LEATHER(DIMPLED),W(HEATER&PADDLE SWITCH),BLACK & DK.ROSE NO.59,TRIM3#

main45100-53511-C4i201709-201805

3-SPOKE,LEATHER,STEERING WHEEL-LEATHER(DIMPLED),W(HEATER&PADDLE SWITCH),BLACK/MUSTARD YELLOW,TRIM51,52

main45100-76130-C1i201905

3-SPOKE,LEATHER,PRE-COLLISION SYSTEM-WITHOUT&STEERING COLUMN-POWER(TILT & TELESCOPIC),BLACK & LT.GRAY NO.831,TRIM0#,2#,3#,4#,6#,7#,9#

main45100-76140-C1i201709-201905

3-SPOKE,LEATHER,PRE-COLLISION SYSTEM-WITHOUT&STEERING WHEEL-LEATHER, W(HEATER & PADDLE SWITCH),BLACK & LT.GRAY NO.831,TRIM0#,2#,3#,4#,6#,7#,9#

main45100-76140-C2i201905

3-SPOKE,LEATHER,PRE-COLLISION SYSTEM-WITHOUT&STEERING COLUMN-POWER(TILT & TELESCOPIC)&STEERING WHEEL-LEATHER, W(HEATER & PADDLE SWITCH),BLACK & ORANGE NO.85,TRIM44,45,46,47

main45100-76160-C2i201709-201805

3-SPOKE,LEATHER,PRE-COLLISION SYSTEM-WITHOUT&STEERING WHEEL-LEATHER(DIMPLED),W(PADDLE SWITCH),BLACK & LT.GRAY NO.831,TRIM0#,2#,51,52

main45100-76160-C4i201709-201805

3-SPOKE,LEATHER,PRE-COLLISION SYSTEM-WITHOUT&STEERING WHEEL-LEATHER(DIMPLED),W(PADDLE SWITCH),BLACK & DK.ROSE NO.59,TRIM3#

main45100-76160-C6i201709-201805

3-SPOKE,LEATHER,PRE-COLLISION SYSTEM-WITHOUT&STEERING WHEEL-LEATHER(DIMPLED),W(PADDLE SWITCH),BLACK/MUSTARD YELLOW,TRIM51,52

main45100-76170-C2i201709-201805

3-SPOKE,LEATHER,PRE-COLLISION SYSTEM-WITHOUT&STEERING WHEEL-LEATHER(DIMPLED),W(HEATER&PADDLE SWITCH),BLACK & LT.GRAY NO.831,TRIM0#,2#,51,52

main45100-76170-C4i201709-201805

3-SPOKE,LEATHER,PRE-COLLISION SYSTEM-WITHOUT&STEERING WHEEL-LEATHER(DIMPLED),W(HEATER&PADDLE SWITCH),BLACK & DK.ROSE NO.59,TRIM3#

main45100-76170-C6i201709-201805

3-SPOKE,LEATHER,PRE-COLLISION SYSTEM-WITHOUT&STEERING WHEEL-LEATHER(DIMPLED),W(HEATER&PADDLE SWITCH),BLACK/MUSTARD YELLOW,TRIM51,52

main45100-78010-C0supersedes 45100-76100-C4i201407-201502

3-SPOKE,LEATHER,STEERING WHEEL-LEATHER,W(HEATER),BLACK/LT.GRAY,TRIM0#,2#,3#,4#,5#

main45100-78011-C0supersedes 45100-76100-C4i201503-201709

3-SPOKE,LEATHER,STEERING WHEEL-LEATHER,W(HEATER),BLACK/LT.GRAY,TRIM0#,2#,3#,4#,5#

main45100-78050-C0i201805-201905

3-SPOKE,LEATHER,PRE-COLLISION SYSTEM-WITHOUT&STEERING WHEEL-LEATHER(DIMPLED),W(PADDLE SWITCH),BLACK & DK.ROSE NO.59,TRIM3#

main45100-78050-C1i201805-201905

3-SPOKE,LEATHER,PRE-COLLISION SYSTEM-WITHOUT&STEERING WHEEL-LEATHER(DIMPLED),W(PADDLE SWITCH),BLACK & MUSTARD YELLOW,TRIM5#

main45100-78050-C2i201905

3-SPOKE,LEATHER,PRE-COLLISION SYSTEM-WITHOUT&STEERING COLUMN-POWER(TILT & TELESCOPIC)&STEERING WHEEL-LEATHER(DIMPLED),W(PADDLE SWITCH),BLACK & LT.GRAY NO.831,TRIM0#,2#

main45100-78060-C0i201805-201905

3-SPOKE,LEATHER,PRE-COLLISION SYSTEM-WITHOUT&STEERING WHEEL-LEATHER(DIMPLED),W(HEATER&PADDLE SWITCH),BLACK & DK.ROSE NO.59,TRIM3#

main45100-78060-C1i201905

3-SPOKE,LEATHER,PRE-COLLISION SYSTEM-WITHOUT&STEERING COLUMN-POWER(TILT & TELESCOPIC)&STEERING WHEEL-LEATHER(DIMPLED),W(HEATER&PADDLE SWITCH),BLACK & MUSTARD YELLOW,TRIM5#

main45100-78060-C2i201905

3-SPOKE,LEATHER,PRE-COLLISION SYSTEM-WITHOUT&STEERING COLUMN-POWER(TILT & TELESCOPIC)&STEERING WHEEL-LEATHER(DIMPLED),W(HEATER&PADDLE SWITCH),BLACK & LT.GRAY NO.831,TRIM0#,2#

main45100-78070-C0i201805

3-SPOKE,LEATHER,STEERING WHEEL-LEATHER(DIMPLED),W(PADDLE SWITCH),BLACK & DK.ROSE NO.59,TRIM3#

main45100-78070-C1i201805

3-SPOKE,LEATHER,STEERING WHEEL-LEATHER(DIMPLED),W(PADDLE SWITCH),BLACK & MUSTARD YELLOW,TRIM5#

main45100-78070-C2i201805

3-SPOKE,LEATHER,STEERING WHEEL-LEATHER(DIMPLED),W(PADDLE SWITCH),BLACK & LT.GRAY NO.831,TRIM0#,2#

main45100-78080-C0i201805

3-SPOKE,LEATHER,STEERING WHEEL-LEATHER(DIMPLED),W(HEATER&PADDLE SWITCH),BLACK & DK.ROSE NO.59,TRIM3#

main45100-78080-C1i201805

3-SPOKE,LEATHER,STEERING WHEEL-LEATHER(DIMPLED),W(HEATER&PADDLE SWITCH),BLACK & MUSTARD YELLOW,TRIM5#

main45100-78080-C2i201805

3-SPOKE,LEATHER,STEERING WHEEL-LEATHER(DIMPLED),W(HEATER&PADDLE SWITCH),BLACK & LT.GRAY NO.831,TRIM0#,2#

main45100-78080-C6i202007

3-SPOKE,LEATHER,STEERING WHEEL-LEATHER(DIMPLED),W(HEATER&PADDLE SWITCH),BLACK & BLUE NO.121,TRIM8#

45130BUTTON ASSY, HORN

main45130-78010-C0i201709-202007

BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9#; BLACK,TRIM0#,2#,3#,4#,6#,7#,9#

main45130-78060-C0i202007

BLACK,TRIM0#,2#,3#,4#,5#,6#,7#; BLACK,TRIM0#,2#,3#,4#,6#,7#,8#

45186COVER, STEERING WHEEL, LOWER NO.2

main45186-53030-C0i201709

BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9#; BLACK,TRIM0#,2#,3#,4#,6#,7#,8#,9#

45187COVER, STEERING WHEEL, LOWER NO.3

main45187-53020-C0i201709

BLACK,TRIM0#,2#,3#,4#,5#,6#,7#,9#; BLACK,TRIM0#,2#,3#,4#,6#,7#,8#,9#

45201PNUT, STEERING WHEEL SET

main90179-12071i201709

45713ADAMPER, STEERING SHAKE

main45713-78010i201407-201709

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

8408CRUISE CONTROL (AUTO DRIVE)

→ Go to FIG 84-08

9015950199

main90159-50199

9015950265

main90159-50265

10 parts on this diagram · 4 diagrams in section
