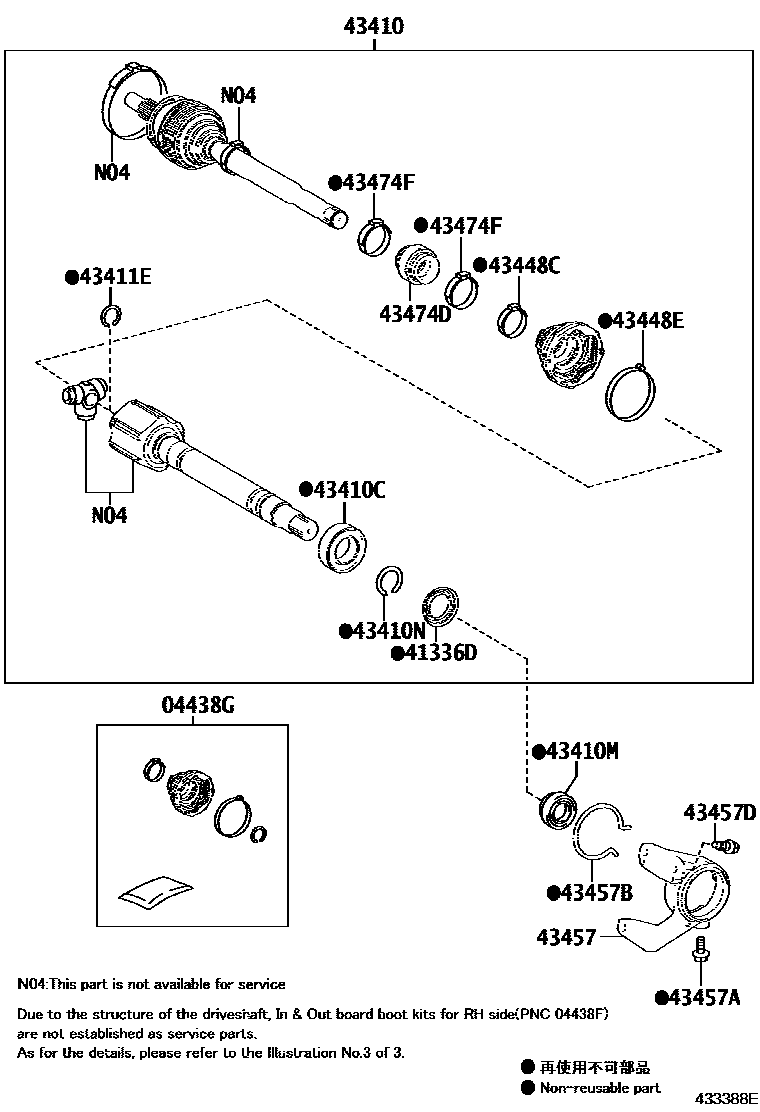

FRONT DRIVE SHAFT

0001 1RH 0002 1RH 0003 1LH 0004 1

04438GBOOT KIT, FRONT DRIVE SHAFT INBOARD JOINT, RH

main04437-78010iAGZ1#,AYZ15201709-201803

main04437-78011iAGZ1#,AYZ15201804

41336DCOVER, FRONT DRIVE SHAFT DUST, RH

main41336-78010iAYZ10201407-201608

main41336-78020iAGZ15201709

43410SHAFT ASSY, FRONT DRIVE, RH

main43410-78010iAGZ10,AYZ15201407-201704

main43410-78020iAGZ15201410-201704

main43410-78030iAGZ10,AYZ15201704-201709

main43410-78040iAGZ15201704-201709

43410CBEARING (FOR FRONT DRIVE SHAFT)

main90363-36006iAGZ15201410-201709

main90363-41003iAYZ10201407-201608

43410MOIL SEAL, FRONT DRIVE SHAFT, RH

main90311-40038iAGZ10201410-201709

main90311-40039iAYZ15201709-202109

main90316-34001iAGZ15201709-202109

43410NRING, HOLE SNAP (FOR FRONT DRIVE SHAFT RH)

main43425-78010iAYZ10201407-201608

main43425-78040iAGZ15201410-201709

43411ERING, SHAFT SNAP (FOR FRONT DRIVE INNER SHAFT INNER RH)

main43425-78020iAGZ1#,AYZ15201407-201709

43448CCLAMP (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-78010iAYZ10201407-201608

43448ECLAMP, NO.2 (FOR FRONT AXLE INBOARD JOINT BOOT RH)

main42345-78020iAYZ10201407-201608

43457BRACKET, DRIVE SHAFT BEARING

main43457-33040iAYZ15201709

main43457-42150iAGZ15201410-201709

main43457-48010iAGZ10201410-201709

43457ABOLT (FOR DRIVE SHAFT BEARING BRACKET SETTING NO.1)

main90119-10461iAGZ1#,AYZ15201407-201709

*10-1.25PX19.8-8.3

43457BRING, HOLE SNAP (FOR DRIVE SHAFT BEARING BRACKET)

main90521-75002iAGZ15201410-201709

main90521-78002iAYZ10201407-201608

43457DBOLT(FOR DRIVE SHAFT BEARRING BRACKET SETTING NO.2)

main90105-10381×3iAGZ1#,AYZ15201709

43474DDAMPER, FRONT DRIVE SHAFT, RH

main43474-78010iAGZ1#,AYZ15201407-201709

43474FCLAMP (FOR FRONT DRIVE SHAFT DAMPER RH)

main42345-78030×2iAYZ10201407-201608

15 parts on this diagram · 4 diagrams in section
