AIR CLEANER

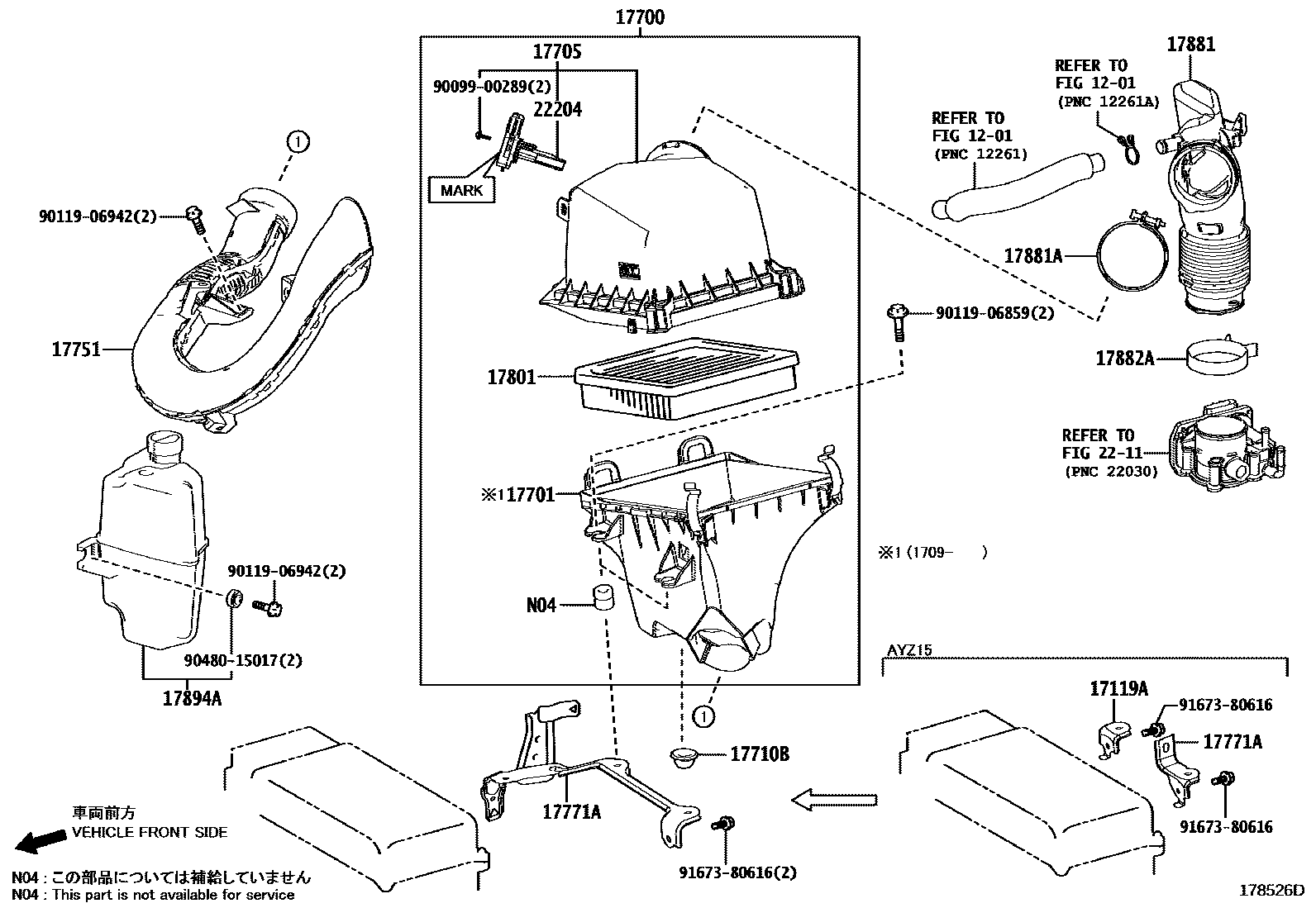

Parts diagram

1201VENTILATION HOSE

→ Go to FIG 12-01

17119ABRACKET, AIR CLEANER

main17119-36030i201407-201709

17700CLEANER ASSY, AIR

main17700-36340i201407-201608

main17700-36350i201709

17701CASE SUB-ASSY, AIR CLEANER

main17701-36250i201709

main17701-36260i201709

17705CAP SUB-ASSY, AIR CLEANER

main17705-36120i201407-201608

main17705-36130i201410-201709

17710BGROMMET

main90480-18006i201709

17751INLET, AIR CLEANER, NO.1

main17751-36080i201407-201608

main17751-36120i201410-201709

17771ABRACKET, AIR CLEANER

main17771-36060i201709

main17771-36070i201410-201608

17801ELEMENT SUB-ASSY, AIR CLEANER FILTER

main17801-31131i201709-202109

main17801-37021i201709-202109

17881HOSE, AIR CLEANER, NO.1

main17881-36140i201407-201608

main17881-36150i201410-201709

17881ACLAMP(FOR AIR CLEANER HOSE, NO.1)

main96111-10850i201407-201608

main96111-10900i201410-201709

17882HOSE, AIR CLEANER, NO.2

main17882-36040i201410-201709

17882ACLAMP(FOR AIR CLEANER HOSE, NO.2)

main90460-70003i201410-201709

main90466-62002i201407-201709

17894ARESONATOR, INTAKE AIR, NO.2

main17894-36040i201709-201905

GUAM SPEC; PUERTO RICO SPEC

2211FUEL INJECTION SYSTEM

→ Go to FIG 22-11

22204METER SUB-ASSY, INTAKE AIR FLOW

main22204-0T040i201407-201608

MARK 22204-0T040

main22204-0V010i201407-201709

MARK 22204-0V010

main22204-0V020i201709

MARK 22204-0V020

main22204-28010i201407-201709

MARK 22204-28010

9009900289

main90099-00289

9011906859

main90119-06859

9011906942

main90119-06942

9048015017

main90480-15017

9167380616

main91673-80616

21 parts on this diagram · 3 diagrams in section
