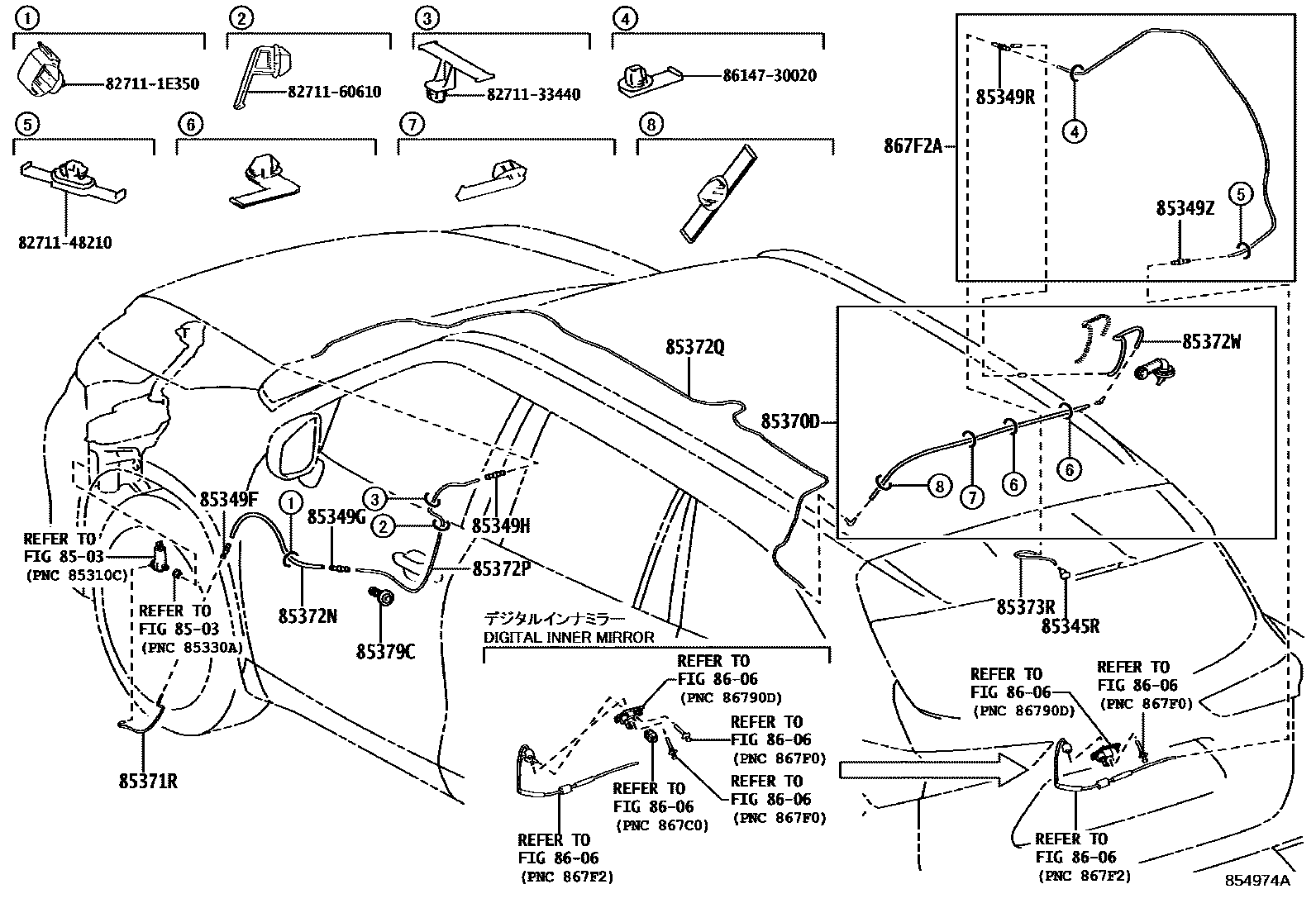

REAR WASHER

8503WINDSHIELD WASHER

→ Go to FIG 85-03

85345RNOZZLE, REAR WASHER

main85391-0E020iAXUH7#,GSU7#201912-202410

85349FJOINT, REAR WASHER HOSE, NO.1

main85375-0E010iAXUH7#,GSU7#201912-202410

85349GJOINT, REAR WASHER HOSE, NO.2

main85375-0E010iAXUH7#,GSU7#201912-202410

85349HJOINT, REAR WASHER HOSE, NO.3

main85375-0E010iAXUH7#,GSU7#201912-202410

85349RJOINT, REAR WASHER HOSE, NO.5

main85375-28110iAXUH7#,GSU7#201912-202410

85349ZJOINT, REAR WASHER HOSE, NO.6

main85375-0E010iAXUH7#,GSU7#201912-202410

85370DHOSE ASSY, REAR WASHER, NO.1

main85370-0E460iAXUH7#,GSU7#201912-202410

85371RHOSE, REAR WASHER (FROM MOTOR TO JOINT)

main90068-33172iAXUH7#,GSU7#201912-202410

L=430

85372NHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.1

main90068-33366iAXUH7#,GSU7#201912-202410

L=610

85372PHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.2

main90068-33220iAXUH7#,GSU7#201912-202410

L=930

85372QHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.3

main85370-0E440iAXUH7#,GSU7#201912-202410

L=3050

85372WHOSE, REAR WASHER (FROM JOINT TO JOINT), NO.5

main90068-33011iAXUH7#,GSU7#201912-202210

L=1250(*H,L=350)

main90068-33017iAXUH7#,TXUA7#202210-202410

L=1250(*H,L=350)

85373RHOSE, REAR WASHER (FROM JOINT TO NOZZLE)

main90068-33035iAXUH7#,GSU7#201912-202410

L=230

85379CGROMMET, REAR WASHER HOSE NO.1

main85379-12850iAXUH7#,GSU7#201912-202410

8606CAMERA & REAR MONITOR DISPLAY

→ Go to FIG 86-06

867F2AHOSE ASSY, CAMERA CLEANER

main867F2-0E010iAXUH7#,GSU7#201912-202410

827111E350WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-1E350

8271133440WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-33440

8271148210WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-48210

8271160610WIRE, FUSE TO FUSE(FOR COMBUSTION HEATER)

main82711-60610

8614730020

main86147-30020

22 parts on this diagram · 1 diagram in section
