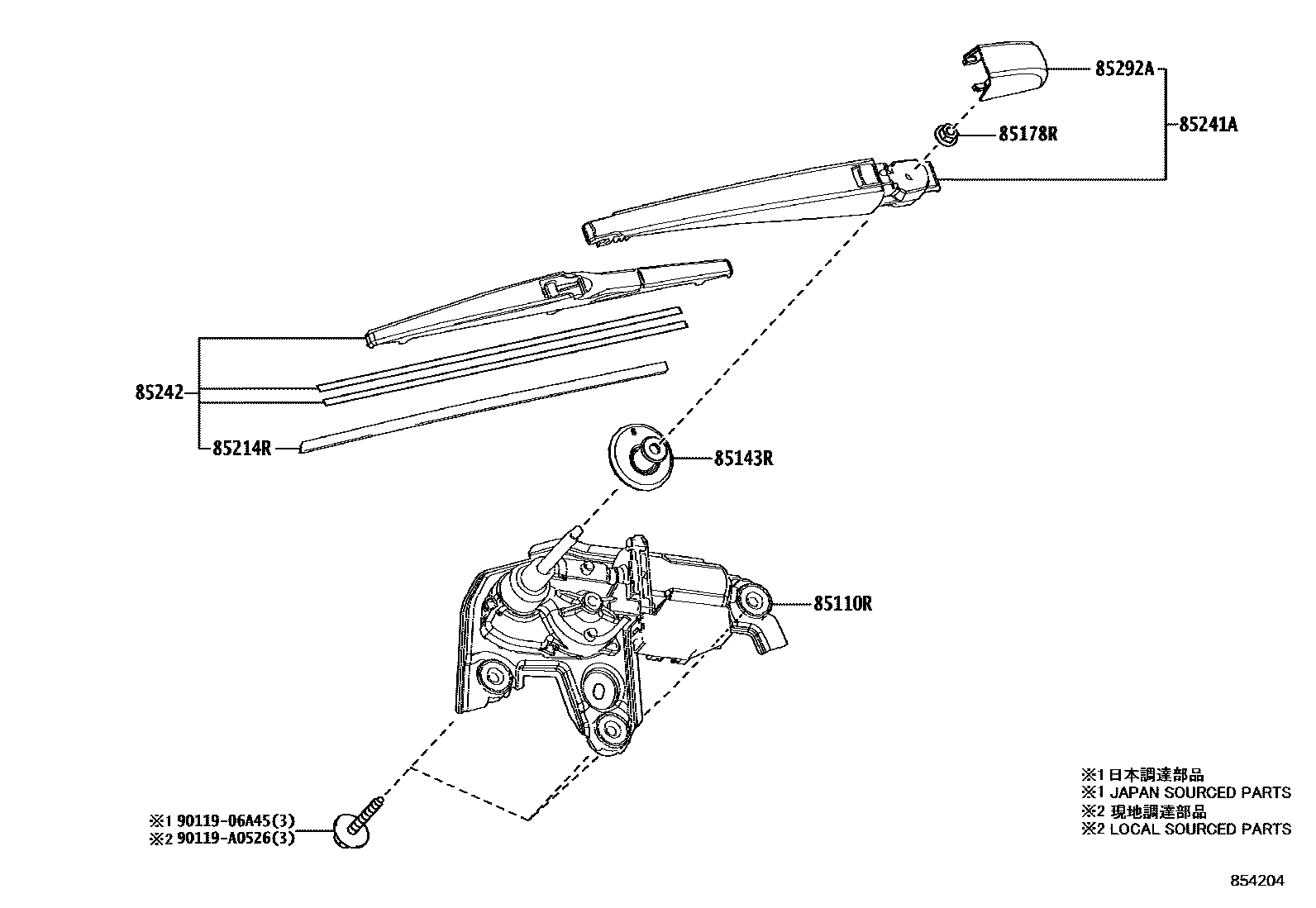

REAR WIPER

85110RMOTOR ASSY, REAR WIPER

main85130-0E120iAXUH7#,GSU7#201912-202210

85143RGROMMET, REAR WIPER MOTOR

main85143-0R010iAXUH7#,GSU7#201912-202210

85178RNUT (FOR REAR WIPER ARM SETTING)

main90182-A0012iAXUH7#,GSU7#201912-202210

85214RRUBBER, REAR WIPER

main85214-42060iAXUH7#,GSU7#201912-202210

85241AARM, REAR WIPER

main85241-0E080iAXUH7#,GSU7#201912-202210

85242BLADE, RR WIPER

main85242-0E110iAXUH7#,GSU7#201912-202210

85292ACAP, REAR WIPER ARM HEAD

main85292-0E040iAXUH7#,GSU7#201912-202210

9011906A45

main90119-06A45

90119A0526

main90119-A0526

9 parts on this diagram · 1 diagram in section
