AIR BAG

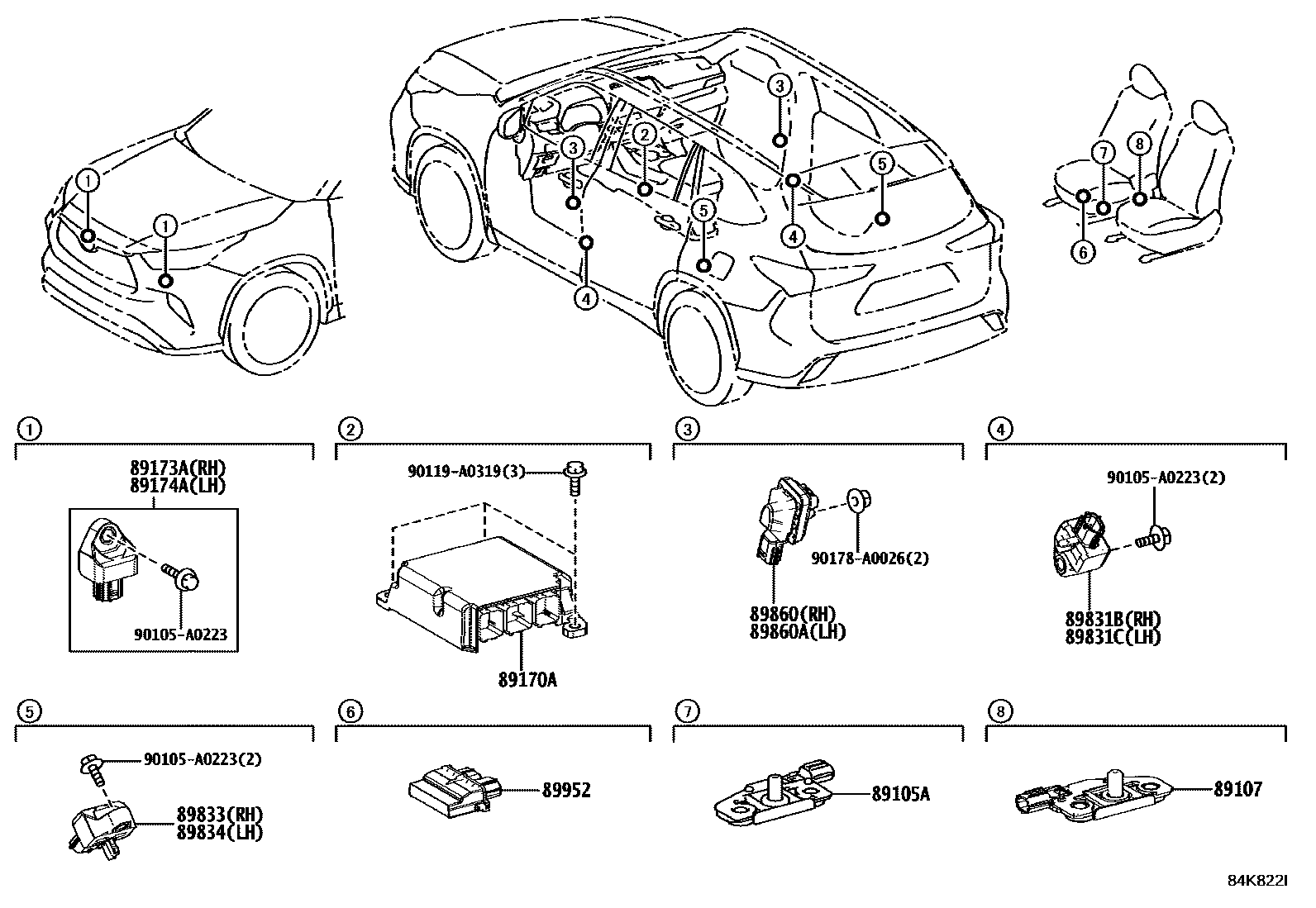

Parts diagram

89105ASENSOR SUB-ASSY, WEIGHT DETECTOR, FRONT INNER

main89105-0E040i201912-202210

89107SENSOR SUB-ASSY, WEIGHT DETECTOR, REAR INNER

main89107-0E040i201912-202210

89170ACOMPUTER ASSY, AIRBAG

main89170-0E230i201912-202002

main89170-0E320i202311

*614

main89170-0E410i202002-202110

main89170-0E420i202002-202110

main89170-0E450i202110-202202

main89170-0E451i202210-202311

main89170-0E460i202110-202202

main89170-0E461i202202-202210

main89170-0E580i202311

*614

main89170-0E680i202311-202410

*614

main89170-0E690i202311

*614

89173ASENSOR, AIRBAG, FRONT RH

main89173-09894i202202-202210

main89173-09D40i201912-202202

main89173-09D60i202311-202410

89174ASENSOR, AIRBAG, FRONT LH

main89173-09894i202210-202311

main89173-09D40i201912-202202

main89173-09D60i202311-202410

89831BSENSOR, SIDE AIRBAG, RH, NO.2

main89831-06110i202202-202210

main89831-08110i202311

main89831-0E170i202002-202202

89831CSENSOR, SIDE AIRBAG, LH, NO.2

main89831-06110i202202-202210

main89831-08110i202311-202410

main89831-0E170i202002-202202

89833SENSOR, AIRBAG, REAR RH

main89831-08120i202311-202410

main89831-0E130i202210-202311

main89831-0E160i201912-202202

89834SENSOR, AIRBAG, REAR LH

main89831-08120i202311-202410

main89831-0E130i202202-202210

main89831-0E160i201912-202202

89860SENSOR ASSY, SIDE AIRBAG, RH

main8983A-02050i202311

main8983A-0E020i201912-202009

main8983A-0E021i202210-202311

89860ASENSOR ASSY, SIDE AIRBAG, LH

main8983A-02050i202311-202410

main8983A-0E020i201912-202009

main8983A-0E021i202010-202210

89952COMPUTER, OCCUPANT DETECTION

main89952-0R030i201912-202110

main89952-0R040i202110-202210

90105A0223

main90105-A0223

90119A0319

main90119-A0319

90178A0026

main90178-A0026

15 parts on this diagram · 1 diagram in section
