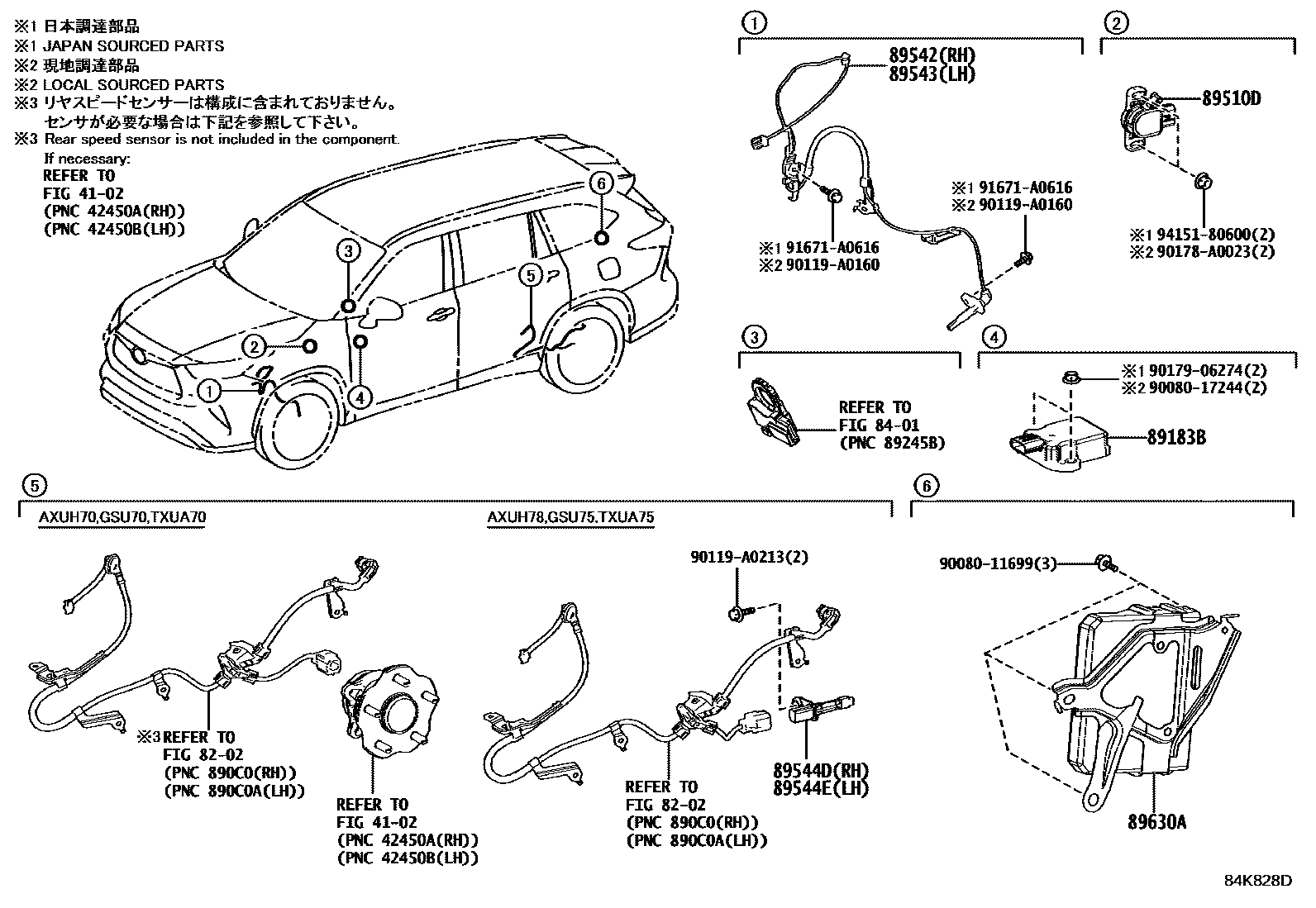

ABS & VSC

4102REAR AXLE SHAFT & HUB

→ Go to FIG 41-02

8202WIRING & CLAMP

→ Go to FIG 82-02

8401SWITCH & RELAY & COMPUTER

→ Go to FIG 84-01

89183BSENSOR, YAWRATE

main89183-50040iAXUH7#202002-202311

89510DSENSOR ASSY, BRAKE PEDAL STROKE

main89510-42010iAXUH7#202311

main89510-47040iAXUH7#202002-202311

89542SENSOR, SPEED, FRONT RH

main89542-0E070iAXUH7#,TXUA7#201912-202410

89543SENSOR, SPEED, FRONT LH

main89543-0E070iAXUH7#,GSU7#201912-202410

89544DSENSOR, SKID CONTROL, REAR RH

main89544-0E040iAXUH78,TXUA75201912-202502

89544ESENSOR, SKID CONTROL, REAR LH

main89544-0E040iAXUH78,GSU75201912-202502

89630ACOMPUTER ASSY, 4WD

main89630-48070iGSU75..M,N201912-202010

main89630-48071iGSU75..M,N202010-202210

main89630-48080iGSU75..G,S201912-202010

main89630-48081iGSU75..G,S202010-202210

main89630-48170iTXUA75..M,N202210-202302

main89630-48171iTXUA75..M,N202302-202311

main89630-48180iTXUA75..G,S202210-202311

main89630-48190iTXUA75..M,N202311

main89630-48200iTXUA75..G,S202311

9008011699

main90080-11699

9008017244

main90080-17244

90119A0160

main90119-A0160

90119A0213

main90119-A0213

90178A0023

main90178-A0023

9017906274

main90179-06274

91671A0616

main91671-A0616

9415180600

main94151-80600

18 parts on this diagram · 1 diagram in section
