SIDE MOULDING
67495CCOVER, FRONT DOOR FRONT LOWER FRAME, UPPER RH
67496CCOVER, FRONT DOOR FRONT LOWER FRAME, UPPER LH
67863FWEATHERSTRIP, FRONT DOOR, NO.2 RH
67864FWEATHERSTRIP, FRONT DOOR, NO.2 LH
67897NWEATHERSTRIP, REAR DOOR, NO.4 RH
67897PWEATHERSTRIP, REAR DOOR, NO.4 LH
75075ACLIP(FOR REAR DOOR OUTSIDE MOULDING)
75077MOULDING SUB-ASSY, REAR DOOR OUTSIDE LOWER RH
NO PAINT REQ.
75078MOULDING SUB-ASSY, REAR DOOR OUTSIDE LOWER LH
NO PAINT REQ.
75085AMOULDING SUB-ASSY, FRONT FENDER WHEEL OPENING, RH
75085FSCREW, NO.2
75086MOULDING SUB-ASSY, FRONT FENDER WHEEL OPENING, LH
75395ACLIP, OUTSIDE MOULDING, NO.1
75395GCLIP, OUTSIDE MOULDING, NO.1
75396CLIP, OUTSIDE MOULDING, NO.2
75397ACLIP, OUTSIDE MOULDING, NO.3
75398ACLIP, OUTSIDE MOULDING, NO.5
75601AMOULDING SUB-ASSY, FRONT FENDER, RH
WHITE PEARL CS.,070
PLATINUM WHITE PEARL MC.,089
GRAY ME.,1G3
SILVER ME.,1J9
PRECIOUS GALENA,1K5
CEMENT GRAY ME.,1H5
PRECIOUS METAL,1L5
ATTITUDE BLACK MC.,218
RED MC.,3T3
BLACKISH BROWN MC.,4X9
GREEN M.M.,6X5
DK. BLUE MC.,8X8
NO PAINT REQ.,WHITE PEARL CS.,070
NO PAINT REQ.,PLATINUM WHITE PEARL MC.,089
NO PAINT REQ.,GRAY ME.,1G3
NO PAINT REQ.,SILVER ME.,1J9
NO PAINT REQ.,PRECIOUS GALENA,1K5
NO PAINT REQ.,CEMENT GRAY ME.,1H5
NO PAINT REQ.,ATTITUDE BLACK MC.,218
NO PAINT REQ.,RED MC.,3T3
NO PAINT REQ.,BLACKISH BROWN MC.,4X9
NO PAINT REQ.,GREEN M.M.,6X5
NO PAINT REQ.,DK. BLUE MC.,8X8
75601CCLIP, FRONT FENDER MOULDING
75602AMOULDING SUB-ASSY, FRONT FENDER, LH
WHITE PEARL CS.,070
PLATINUM WHITE PEARL MC.,089
GRAY ME.,1G3
SILVER ME.,1J9
PRECIOUS GALENA,1K5
CEMENT GRAY ME.,1H5
PRECIOUS METAL,1L5
ATTITUDE BLACK MC.,218
RED MC.,3T3
BLACKISH BROWN MC.,4X9
GREEN M.M.,6X5
DK. BLUE MC.,8X8
NO PAINT REQ.,WHITE PEARL CS.,070
NO PAINT REQ.,PLATINUM WHITE PEARL MC.,089
NO PAINT REQ.,GRAY ME.,1G3
NO PAINT REQ.,SILVER ME.,1J9
NO PAINT REQ.,PRECIOUS GALENA,1K5
NO PAINT REQ.,CEMENT GRAY ME.,1H5
NO PAINT REQ.,ATTITUDE BLACK MC.,218
NO PAINT REQ.,RED MC.,3T3
NO PAINT REQ.,BLACKISH BROWN MC.,4X9
NO PAINT REQ.,GREEN M.M.,6X5
NO PAINT REQ.,DK. BLUE MC.,8X8
75625CPAD, FRONT FENDER OUTSIDE MOULDING, UPPER
75710MOULDING ASSY, FRONT DOOR BELT, RH
HYBRID SPECIAL EDITION
75720MOULDING ASSY, FRONT DOOR BELT, LH
HYBRID SPECIAL EDITION
75730MOULDING ASSY, REAR DOOR BELT, RH
HYBRID SPECIAL EDITION
75731AMOULDING, FRONT DOOR, OUTSIDE RH
PAINT REQ.
PAINT REQ.
75732AMOULDING, FRONT DOOR, OUTSIDE LH
PAINT REQ.
PAINT REQ.
75735AMOULDING, FRONT DOOR OUTSIDE, LOWER RH
75736AMOULDING, FRONT DOOR OUTSIDE, LOWER LH
75740MOULDING ASSY, REAR DOOR BELT, LH
HYBRID SPECIAL EDITION
75741MOULDING, REAR DOOR, OUTSIDE RH
PAINT REQ.
PAINT REQ.
75742MOULDING, REAR DOOR, OUTSIDE LH
PAINT REQ.
PAINT REQ.
75745MOULDING, REAR DOOR OUTSIDE, LOWER RH
75746MOULDING, REAR DOOR OUTSIDE, LOWER LH
75753MOULDING, FRONT DOOR WINDOW FRAME, UPPER RH
NO PAINT REQ.
75754AMOULDING, FRONT DOOR WINDOW FRAME, UPPER LH
NO PAINT REQ.
75755AMOULDING, FRONT DOOR WINDOW FRAME, RH(CENTER PILLAR SIDE)
75756DMOULDING, FRONT DOOR WINDOW FRAME, LH(CENTER PILLAR SIDE)
75761BMOULDING, REAR DOOR WINDOW FRAME, RH(CENTER PILLAR SIDE)
75762BMOULDING, REAR DOOR WINDOW FRAME, LH(CENTER PILLAR SIDE)
75763AMOULDING, REAR DOOR WINDOW FRAME, UPPER RH
75764AMOULDING, REAR DOOR WINDOW FRAME, UPPER LH
75765BMOULDING, REAR DOOR WINDOW FRAME, RH(REAR PILLAR SIDE)
75766BMOULDING, REAR DOOR WINDOW FRAME, LH(REAR PILLAR SIDE)
75792CLIP, DOOR WINDOW FRAME MOULDING
75793PAD, FRONT DOOR OUTSIDE MOULDING, UPPER
75797FPAD, REAR DOOR OUTSIDE MOULDING, UPPER RH
75797GPAD, REAR DOOR OUTSIDE MOULDING, UPPER LH
75850AMOULDING ASSY, BODY ROCKER PANEL, RH
75860AMOULDING ASSY, BODY ROCKER PANEL, LH
75867ACLIP, ROCKER PANEL MOULDING
75867CCLIP, ROCKER PANEL MOULDING
75868BCLIP, ROCKER PANEL MOULDING, NO.2
75868DCLIP, ROCKER PANEL MOULDING, NO.2
75873MOULDING, QUARTER PANEL WHEEL OPENING, RH
75873ACLIP (FOR QUARTER OPENING MOULDING)
75873CCLIP, NO.2(FOR QUARTER OPENING MOULDING)
75874MOULDING, QUARTER PANEL WHEEL OPENING, LH
75875ACLIP, FRONT FENDER WHEEL OPENING MOULDING
76924GRETAINER, ROCKER PANEL MOULDING
6786750140CLIP, DOOR WEATHERSTRIP
main67867-50140
6786776010CLIP, DOOR WEATHERSTRIP
main67867-76010
9008016111
main90080-16111
90159A0059
main90159-A0059
90159A0060
main90159-A0060
90178A0061
main90178-A0061
9018905074
main90189-05074
9018906006
main90189-06006
90189A0007
main90189-A0007
9026904054
main90269-04054
90269A0006
main90269-A0006
90467A0044
main90467-A0044

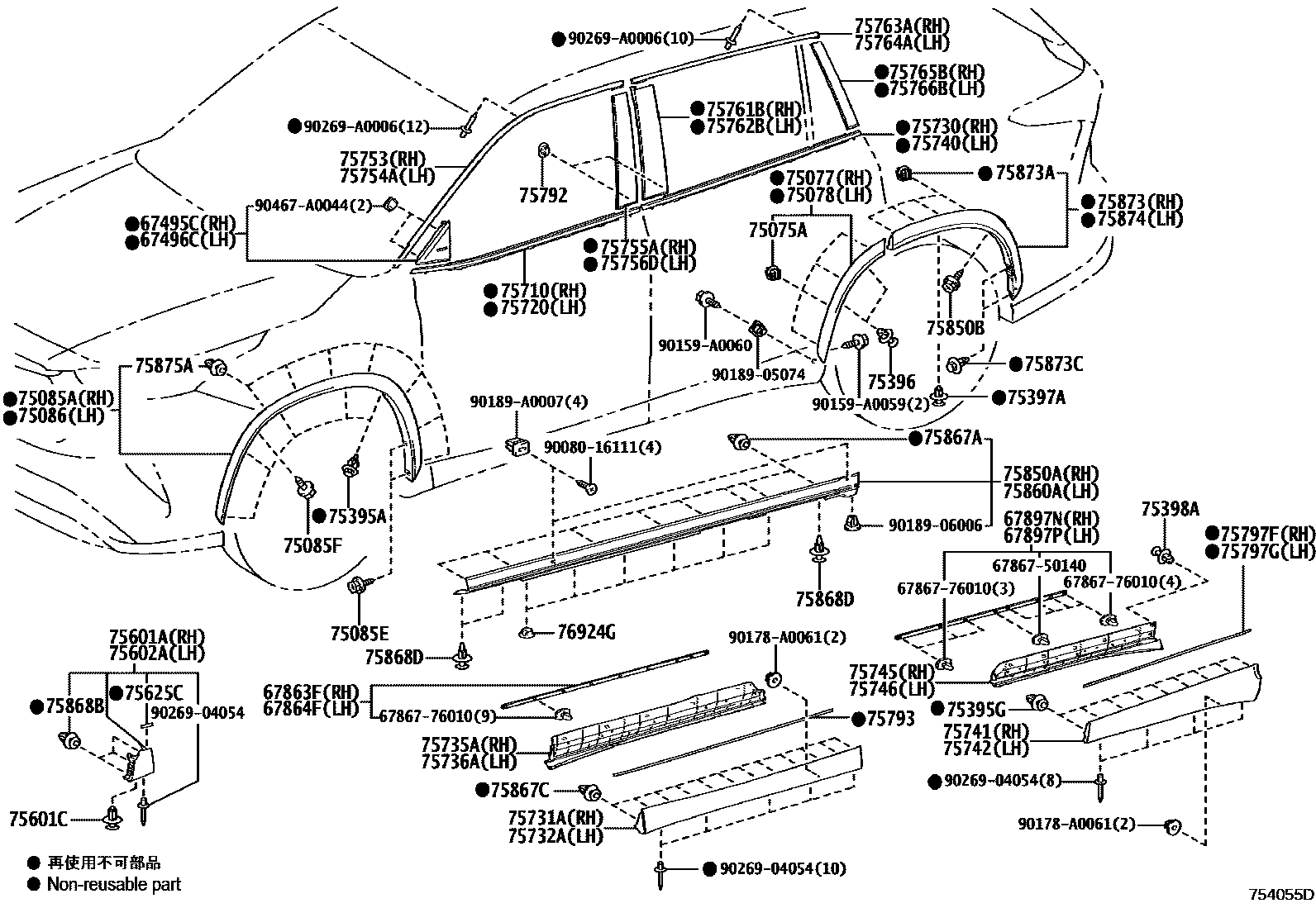

73 parts on this diagram · 4 diagrams in section
