EPC Data

REAR SEAT & SEAT TRACK

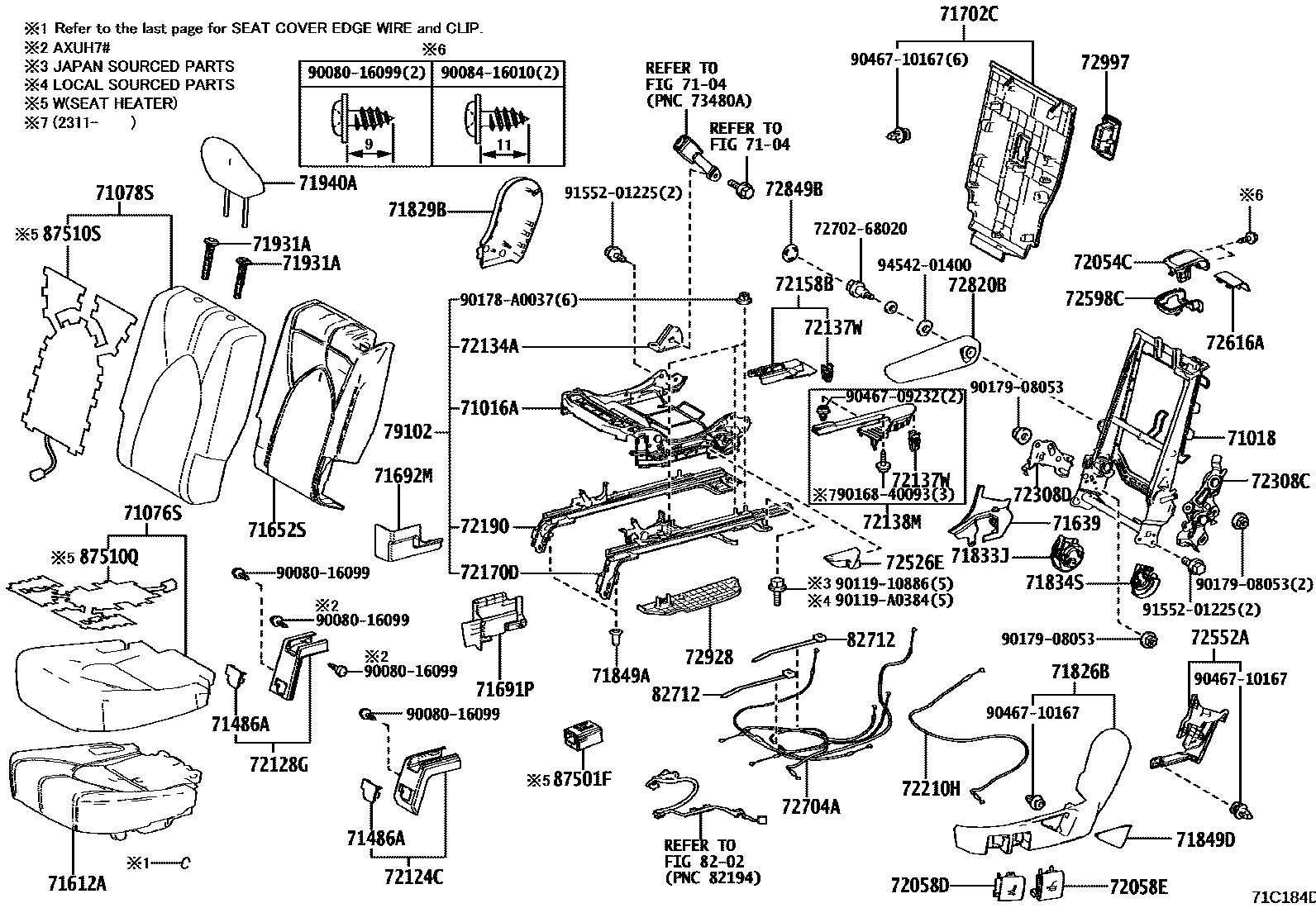

Parts diagram
71016AFRAME SUB-ASSY, REAR SEAT CUSHION, LH
main71016-0E110i202311-202410
71018FRAME SUB-ASSY, REAR SEATBACK, LH
main71018-0E140i201912-202210
PLATINUM PACKAGE&REAR NO.1 SEAT-BENCH SEAT; REAR NO.1 SEAT-BENCH SEAT
main71018-0E150i201912-202210
7104SEAT BELT & CHILD RESTRAINT SEAT
→ Go to FIG 71-04
71076SCOVER, REAR SEAT CUSHION, LH (FOR SEPARATE TYPE)
main71076-0E410-B3i201912-202110
GRAY,TRIM1#
main71076-0E410-C3i201912-202110
BLACK,TRIM2#
main71076-0E411-B4i202210-202311
GRAY,TRIM1#
main71076-0E411-C4i202110-202210
BLACK,TRIM2#
main71076-0E412-B4i202311
GRAY,TRIM1#
main71076-0E412-C4i202311
BLACK,TRIM2#
main71076-0E420-B4i201912-202110
GRAY,TRIM1#
main71076-0E420-B7i202110-202210
GRAY,TRIM1#; REAR NO.1 SEAT-BENCH SEAT,GRAY,TRIM1#
main71076-0E420-C4i201912-202110
BLACK,TRIM2#
main71076-0E420-C6i202110-202210
BLACK,TRIM2#; REAR NO.1 SEAT-BENCH SEAT,BLACK,TRIM2#
main71076-0E420-E4i201912-202110
NEUTRAL BEIGE,TRIM4#
main71076-0E420-E7i202110-202210
NEUTRAL BEIGE,TRIM4#; REAR NO.1 SEAT-BENCH SEAT,NEUTRAL BEIGE,TRIM4#
main71076-0E421-B7i202210-202311
GRAY,TRIM1#
main71076-0E421-C6i202210-202311
BLACK,TRIM2#
main71076-0E421-E7i202210-202311
NEUTRAL BEIGE,TRIM4#
main71076-0E422-B7i202311
GRAY,TRIM1#
main71076-0E422-C6i202311
BLACK,TRIM2#
main71076-0E422-E7i202311
NEUTRAL BEIGE,TRIM4#
main71076-0E440-C3i202009-202110
BLACK,TRIM2#
main71076-0E440-C4i202110-202210
BLACK,TRIM2#
main71076-0E441-C4i202210-202311
BLACK,TRIM2#
main71076-0E442-C4i202311
BLACK,TRIM2#
main71076-0E620-E3i202110-202210
NEUTRAL BEIGE,TRIM4#
main71076-0E621-E3i202210-202311
NEUTRAL BEIGE,TRIM4#
main71076-0E622-E3i202311
NEUTRAL BEIGE,TRIM4#
main71076-0E622-E4i202411
MD.BROWN,TRIM42
main71076-0E480-B5supersedes 71076-0E620-B2i201912-202110
PLATINUM PACKAGE&REAR NO.1 SEAT-BENCH SEAT,GRAY,TRIM1#
main71076-0E480-B7i202110-202210
PLATINUM PACKAGE&REAR NO.1 SEAT-BENCH SEAT,GRAY,TRIM1#
main71076-0E480-C5supersedes 71076-0E620-C2i201912-202110
PLATINUM PACKAGE&REAR NO.1 SEAT-BENCH SEAT,BLACK,TRIM2#
main71076-0E480-C7i202110-202210
PLATINUM PACKAGE&REAR NO.1 SEAT-BENCH SEAT,BLACK,TRIM2#
main71076-0E480-E9i201912-202110
PLATINUM PACKAGE&REAR NO.1 SEAT-BENCH SEAT,OCHER,TRIM41
main71076-0E480-L0i201912-202110
PLATINUM PACKAGE&REAR NO.1 SEAT-BENCH SEAT,NEUTRAL BEIGE,TRIM40
main71076-0E480-L3i202110-202210
PLATINUM PACKAGE&REAR NO.1 SEAT-BENCH SEAT,OCHER,TRIM41
main71076-0E480-L4i202110-202210
PLATINUM PACKAGE&REAR NO.1 SEAT-BENCH SEAT,NEUTRAL BEIGE,TRIM40
main71076-0E490-B4supersedes 71076-0E620-B2i201912-202110
PLATINUM PACKAGE,GRAY,TRIM1#
main71076-0E490-B5supersedes 71076-0E620-B3i202110-202210
PLATINUM PACKAGE,GRAY,TRIM1#
main71076-0E490-C4supersedes 71076-0E620-C2i201912-202110
PLATINUM PACKAGE,BLACK,TRIM2#
main71076-0E490-C5supersedes 71076-0E620-C3i202110-202210
PLATINUM PACKAGE,BLACK,TRIM2#
main71076-0E490-E7i201912-202110
PLATINUM PACKAGE,OCHER,TRIM41
main71076-0E490-E8i201912-202110
PLATINUM PACKAGE,NEUTRAL BEIGE,TRIM40
main71076-0E490-E9i202110-202210
PLATINUM PACKAGE,OCHER,TRIM41
main71076-0E490-L0i202110-202210
PLATINUM PACKAGE,NEUTRAL BEIGE,TRIM40
main71076-0E491-B5supersedes 71076-0E622-B3i202210-202311
PLATINUM PACKAGE,GRAY,TRIM1#
main71076-0E491-C5supersedes 71076-0E622-C3i202210-202311
PLATINUM PACKAGE,BLACK,TRIM2#
main71076-0E491-E9i202210-202311
PLATINUM PACKAGE,OCHER,TRIM41
main71076-0E491-L0i202210-202311
PLATINUM PACKAGE,NEUTRAL BEIGE,TRIM40
main71076-0E492-B5i202311-202411
PLATINUM PACKAGE,GRAY,TRIM1#
main71076-0E492-C5i202311-202411
PLATINUM PACKAGE,BLACK,TRIM2#
main71076-0E492-E9i202311-202411
PLATINUM PACKAGE,OCHER,TRIM41
main71076-0E492-L0i202311-202411
PLATINUM PACKAGE,NEUTRAL BEIGE,TRIM40
main71076-0E500-B5supersedes 71076-0E620-B2i201912-202110
REAR NO.1 SEAT-BENCH SEAT,GRAY,TRIM1#
main71076-0E500-B7i202110-202210
REAR NO.1 SEAT-BENCH SEAT,GRAY,TRIM1#
main71076-0E500-C5supersedes 71076-0E620-C2i201912-202110
REAR NO.1 SEAT-BENCH SEAT,BLACK,TRIM2#
main71076-0E500-C7i202110-202210
REAR NO.1 SEAT-BENCH SEAT,BLACK,TRIM2#
main71076-0E500-L0supersedes 71076-0E620-E2i201912-202110
REAR NO.1 SEAT-BENCH SEAT,NEUTRAL BEIGE,TRIM4#
main71076-0E500-L4i202110-202210
REAR NO.1 SEAT-BENCH SEAT,NEUTRAL BEIGE,TRIM4#
main71076-0E690-D0i202009-202110
SEAT COVER MATERIAL-LEATHER(XSE),RED/GRAY,TRIM3#
main71076-0E690-D1i202110-202210
SEAT COVER MATERIAL-LEATHER(XSE),SENSUAL RED/BLACK/GRAY,TRIM3#
main71076-0E691-D1i202210-202311
SEAT COVER MATERIAL-LEATHER(XSE),SENSUAL RED/BLACK/GRAY,TRIM3#
main71076-0E692-D1i202311
SEAT COVER MATERIAL-LEATHER(XSE),SENSUAL RED,TRIM3#
main71076-0E710-E0i202110-202210
HYBRID SPECIAL EDITION,GRAY/OCHRE,TRIM1#
main71076-0E711-E0i202210-202311
HYBRID SPECIAL EDITION,GRAY/OCHRE,TRIM1#
main71076-0E712-B3i202311
HYBRID SPECIAL EDITION,BLACK/MD.GRAY,TRIM2#
main71076-0EA40-B0i202210-202311
PLATINUM PACKAGE&REAR NO.1 SEAT-BENCH SEAT,GRAY,TRIM1#
main71076-0EA40-C0i202210-202311
PLATINUM PACKAGE&REAR NO.1 SEAT-BENCH SEAT,BLACK,TRIM2#
main71076-0EA40-E0i202210-202311
PLATINUM PACKAGE&REAR NO.1 SEAT-BENCH SEAT,OCHER,TRIM41
main71076-0EA40-E1i202210-202311
PLATINUM PACKAGE&REAR NO.1 SEAT-BENCH SEAT,NEUTRAL BEIGE,TRIM40
main71076-0EA41-B0i202311
PLATINUM PACKAGE&REAR NO.1 SEAT-BENCH SEAT,GRAY,TRIM1#
main71076-0EA41-C0i202311
PLATINUM PACKAGE&REAR NO.1 SEAT-BENCH SEAT,BLACK,TRIM2#
main71076-0EA41-E0i202311-202411
PLATINUM PACKAGE&REAR NO.1 SEAT-BENCH SEAT,OCHER,TRIM41
main71076-0EA41-E1i202311-202411
PLATINUM PACKAGE&REAR NO.1 SEAT-BENCH SEAT,NEUTRAL BEIGE,TRIM40
main71076-0EA50-B0i202210-202311
REAR NO.1 SEAT-BENCH SEAT,GRAY,TRIM1#
main71076-0EA50-C0i202210-202311
REAR NO.1 SEAT-BENCH SEAT,BLACK,TRIM2#
main71076-0EA50-E0i202210-202311
REAR NO.1 SEAT-BENCH SEAT,NEUTRAL BEIGE,TRIM4#
main71076-0EA51-B0i202311
REAR NO.1 SEAT-BENCH SEAT,GRAY,TRIM1#
main71076-0EA51-C0i202311
REAR NO.1 SEAT-BENCH SEAT,BLACK,TRIM2#
main71076-0EA51-E0i202311
REAR NO.1 SEAT-BENCH SEAT,NEUTRAL BEIGE,TRIM4#
71078SCOVER, REAR SEATBACK, LH(FOR SEPARATE TYPE)
main71078-0E300-B3i201912-202007
GRAY,TRIM1#
main71078-0E300-B4i202007-202210
GRAY,TRIM1#
main71078-0E300-C3i201912-202007
BLACK,TRIM2#
main71078-0E300-C4i202210-202311
BLACK,TRIM2#
main71078-0E301-B4i202311
GRAY,TRIM1#
main71078-0E301-C4i202311
BLACK,TRIM2#
main71078-0E440-C4i202009-202110
BLACK,TRIM2#
main71078-0E440-C5i202210-202311
BLACK,TRIM2#
main71078-0E441-C5i202311
BLACK,TRIM2#
main71078-0E450-E6i202210-202311
NEUTRAL BEIGE,TRIM4#
main71078-0E451-E6i202311-202411
NEUTRAL BEIGE,TRIM4#
main71078-0E451-E8i202411
MD.BROWN,TRIM42
main71078-0E451-E9i202411
NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM40
main71078-0E430-B4supersedes 71078-0E420-B4i201912-202007
REAR NO.1 SEAT-BENCH SEAT,GRAY,TRIM1#
main71078-0E430-B5supersedes 71078-0E420-B5i202007-202110
REAR NO.1 SEAT-BENCH SEAT,GRAY,TRIM1#
main71078-0E430-B6supersedes 71078-0E421-B6i202210-202311
REAR NO.1 SEAT-BENCH SEAT,GRAY,TRIM1#
main71078-0E430-C4supersedes 71078-0E420-C4i201912-202007
REAR NO.1 SEAT-BENCH SEAT,BLACK,TRIM2#
main71078-0E430-C5supersedes 71078-0E420-C5i202007-202110
REAR NO.1 SEAT-BENCH SEAT,BLACK,TRIM2#
main71078-0E430-C6supersedes 71078-0E421-C6i202210-202311
REAR NO.1 SEAT-BENCH SEAT,BLACK,TRIM2#
main71078-0E430-E4supersedes 71078-0E420-E4i201912-202007
REAR NO.1 SEAT-BENCH SEAT,NEUTRAL BEIGE,TRIM4#
main71078-0E430-E5supersedes 71078-0E420-E5i202007-202110
REAR NO.1 SEAT-BENCH SEAT,NEUTRAL BEIGE,TRIM4#
main71078-0E430-E6supersedes 71078-0E421-E6i202210-202311
REAR NO.1 SEAT-BENCH SEAT,NEUTRAL BEIGE,TRIM4#
main71078-0E431-B6supersedes 71078-0E421-B6i202311
REAR NO.1 SEAT-BENCH SEAT,GRAY,TRIM1#
main71078-0E431-C6supersedes 71078-0E421-C6i202311
REAR NO.1 SEAT-BENCH SEAT,BLACK,TRIM2#
main71078-0E431-E6supersedes 71078-0E421-E6i202311
REAR NO.1 SEAT-BENCH SEAT,NEUTRAL BEIGE,TRIM4#
main71078-0E460-B5supersedes 71078-0E450-B5i201912-202110
REAR NO.1 SEAT-BENCH SEAT,GRAY,TRIM1#
main71078-0E460-B6i202110-202210
REAR NO.1 SEAT-BENCH SEAT,GRAY,TRIM1#
main71078-0E460-C5supersedes 71078-0E450-C5i201912-202110
REAR NO.1 SEAT-BENCH SEAT,BLACK,TRIM2#
main71078-0E460-C6i202210-202311
REAR NO.1 SEAT-BENCH SEAT,BLACK,TRIM2#
main71078-0E460-E5supersedes 71078-0E450-E5i201912-202110
REAR NO.1 SEAT-BENCH SEAT,NEUTRAL BEIGE,TRIM4#
main71078-0E460-E6supersedes 71078-0E451-E9i202210-202311
REAR NO.1 SEAT-BENCH SEAT,NEUTRAL BEIGE,TRIM4#
main71078-0E461-B6i202311
REAR NO.1 SEAT-BENCH SEAT,GRAY,TRIM1#
main71078-0E461-C6i202311
REAR NO.1 SEAT-BENCH SEAT,BLACK,TRIM2#
main71078-0E461-E6supersedes 71078-0E451-E9i202311
REAR NO.1 SEAT-BENCH SEAT,NEUTRAL BEIGE,TRIM4#
main71078-0E480-B4supersedes 71078-0E450-B5i201912-202110
PLATINUM PACKAGE,GRAY,TRIM1#
main71078-0E480-B5supersedes 71078-0E451-B7i202210-202311
PLATINUM PACKAGE,GRAY,TRIM1#
main71078-0E480-C4supersedes 71078-0E450-C5i201912-202110
PLATINUM PACKAGE,BLACK,TRIM2#
main71078-0E480-C5supersedes 71078-0E451-C7i202210-202311
PLATINUM PACKAGE,BLACK,TRIM2#
main71078-0E480-E7i201912-202110
PLATINUM PACKAGE,OCHER,TRIM41
main71078-0E480-E8i201912-202110
PLATINUM PACKAGE,NEUTRAL BEIGE,TRIM40
main71078-0E480-E9i202210-202311
PLATINUM PACKAGE,OCHER,TRIM41
main71078-0E480-L0i202210-202311
PLATINUM PACKAGE,NEUTRAL BEIGE,TRIM40
main71078-0E481-B5i202311
PLATINUM PACKAGE,GRAY,TRIM1#
main71078-0E481-C5i202311
PLATINUM PACKAGE,BLACK,TRIM2#
main71078-0E481-E9i202411
PLATINUM PACKAGE,OCHER,TRIM4#
main71078-0E481-L0i202311-202411
PLATINUM PACKAGE,NEUTRAL BEIGE,TRIM40
main71078-0E490-B4supersedes 71078-0E450-B5i201912-202110
PLATINUM PACKAGE&REAR NO.1 SEAT-BENCH SEAT,GRAY,TRIM1#
main71078-0E490-B5i202110-202210
PLATINUM PACKAGE&REAR NO.1 SEAT-BENCH SEAT,GRAY,TRIM1#
main71078-0E490-C4supersedes 71078-0E450-C5i201912-202110
PLATINUM PACKAGE&REAR NO.1 SEAT-BENCH SEAT,BLACK,TRIM2#
main71078-0E490-C5i202210-202311
PLATINUM PACKAGE&REAR NO.1 SEAT-BENCH SEAT,BLACK,TRIM2#
main71078-0E490-E7i201912-202110
PLATINUM PACKAGE&REAR NO.1 SEAT-BENCH SEAT,OCHER,TRIM41
main71078-0E490-E8i201912-202110
PLATINUM PACKAGE&REAR NO.1 SEAT-BENCH SEAT,NEUTRAL BEIGE,TRIM40
main71078-0E490-E9i202110-202210
PLATINUM PACKAGE&REAR NO.1 SEAT-BENCH SEAT,OCHER,TRIM41
main71078-0E490-L0i202110-202210
PLATINUM PACKAGE&REAR NO.1 SEAT-BENCH SEAT,NEUTRAL BEIGE,TRIM40
main71078-0E491-B5i202311-202411
PLATINUM PACKAGE&REAR NO.1 SEAT-BENCH SEAT,GRAY,TRIM1#
main71078-0E491-C5i202311-202411
PLATINUM PACKAGE&REAR NO.1 SEAT-BENCH SEAT,BLACK,TRIM2#
main71078-0E491-E9i202311-202411
PLATINUM PACKAGE&REAR NO.1 SEAT-BENCH SEAT,OCHER,TRIM41
main71078-0E491-L0i202311-202411
PLATINUM PACKAGE&REAR NO.1 SEAT-BENCH SEAT,NEUTRAL BEIGE,TRIM40
main71078-0EA00-D0i202009-202110
SEAT COVER MATERIAL-LEATHER(XSE),RED/GRAY,TRIM3#
main71078-0EA00-D1i202110-202210
SEAT COVER MATERIAL-LEATHER(XSE),SENSUAL RED/BLACK/GRAY,TRIM3#
main71078-0EA01-D1i202311
SEAT COVER MATERIAL-LEATHER(XSE),SENSUAL RED,TRIM3#
main71078-0EA70-E0i202110-202210
HYBRID SPECIAL EDITION,GRAY/OCHRE,TRIM1#
main71078-0EA71-B2i202311
HYBRID SPECIAL EDITION,BLACK/MD.GRAY,TRIM2#
71486ACOVER, REAR SEAT HINGE, NO.2 LH
main71486-0E070×2i202311-202410
71612APAD, REAR SEAT CUSHION, LH
main71612-0E100i202210-202311
main71612-0E101i202311
71639COVER, REAR SEAT CUSHION HINGE, LH
main71639-0E050-B0i202210-202311
GRAY,TRIM1#; GRAY,TRIM10
main71639-0E050-C0i202210-202311
BLACK,TRIM13,2#; BLACK,TRIM2#; BLACK,TRIM2#,3#; BLACK,TRIM2#,41
main71639-0E050-E0i202311
NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM40
71652SPAD, REAR SEATBACK, LH(FOR SEPARATE TYPE)
main71652-0E140i201912-202210
PLATINUM PACKAGE&REAR NO.1 SEAT-BENCH SEAT; REAR NO.1 SEAT-BENCH SEAT
main71652-0E150i202311
71691PCOVER, REAR SEAT CUSHION HINGE, UPPER RH NO.2
main71691-0E040-B0i201912-202210
GRAY,TRIM1#
main71691-0E040-C0i202311
BLACK,TRIM2#; BLACK,TRIM2#,3#; BLACK,TRIM2#,41,42
main71691-0E040-E0i202210-202311
NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM40
71692MCOVER, REAR SEAT CUSHION HINGE, UPPER LH NO.2
main71692-0E060-B0i202210-202311
GRAY,TRIM1#; GRAY,TRIM10
main71692-0E060-C0i202210-202311
BLACK,TRIM13,2#; BLACK,TRIM2#; BLACK,TRIM2#,3#; BLACK,TRIM2#,41
main71692-0E060-E0i202311
NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM40
71702CBOARD SUB-ASSY, REAR SEATBACK, LH
main71702-0E010i202311-202410
71826BMOULDING, REAR SEAT CUSHION, LH
main71826-0E090-B0i202210-202311
GRAY,TRIM1#; GRAY,TRIM10
main71826-0E090-C0i202210-202311
BLACK,TRIM13,2#; BLACK,TRIM2#; BLACK,TRIM2#,3#; BLACK,TRIM2#,41
main71826-0E090-E0i201912-202210
NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM40
71829BMOULDING, REAR SEAT CUSHION, REAR LH
main71829-0E100-B0i202311
GRAY,TRIM1#
main71829-0E100-C0i202210-202311
BLACK,TRIM13,2#; BLACK,TRIM2#; BLACK,TRIM2#,3#; BLACK,TRIM2#,41
main71829-0E100-E0i201912-202210
NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM40
71833JCOVER, REAR SEAT RECLINING, NO.1 RH
main71833-0E060i202210-202311
71834SCOVER, REAR SEAT RECLINING, NO.1 LH
main71834-0E070i201912-202210
71849ACAP, SEAT ADJUSTER COVER, LH
main71848-0E070×2i201912-202110
71849DCAP, SEAT ADJUSTER COVER, LH
main71849-0E010-B0i202210-202311
GRAY,TRIM1#; GRAY,TRIM10
main71849-0E010-C0i202210-202311
BLACK,TRIM13,2#; BLACK,TRIM2#; BLACK,TRIM2#,3#; BLACK,TRIM2#,41
main71849-0E010-E0i202311
NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM40
71931ASUPPORT, REAR SEAT HEADREST
main71930-0R070-B1×2supersedes 71931-0R050-B1i202311
W(LOCK),GRAY,TRIM1#; W(LOCK),PLATINUM PACKAGE&REAR NO.1 SEAT-BENCH SEAT,GRAY,TRIM1#; W(LOCK),REAR NO.1 SEAT-BENCH SEAT,GRAY,TRIM1#
main71930-0R070-C0×2supersedes 71931-0R050-C0i202311
W(LOCK),BLACK,TRIM2#; W(LOCK),BLACK,TRIM2#,3#; W(LOCK),BLACK,TRIM2#,41,42; W(LOCK),PLATINUM PACKAGE&REAR NO.1 SEAT-BENCH SEAT,BLACK,TRIM2#,41,42; W(LOCK),REAR NO.1 SEAT-BENCH SEAT,BLACK,TRIM2#; W(LOCK),REAR NO.1 SEAT-BENCH SEAT,BLACK,TRIM2#,41,42
main71930-0R070-E1×2supersedes 71931-0R050-E1i202311
W(LOCK),NEUTRAL BEIGE,TRIM4#; W(LOCK),NEUTRAL BEIGE,TRIM40; W(LOCK),PLATINUM PACKAGE&REAR NO.1 SEAT-BENCH SEAT,NEUTRAL BEIGE,TRIM40; W(LOCK),REAR NO.1 SEAT-BENCH SEAT,NEUTRAL BEIGE,TRIM4#; W(LOCK),REAR NO.1 SEAT-BENCH SEAT,NEUTRAL BEIGE,TRIM40
main71931-0R050-B1×2i201912-202210
W/O(LOCK),GRAY,TRIM1#; W/O(LOCK),PLATINUM PACKAGE&REAR NO.1 SEAT-BENCH SEAT,GRAY,TRIM1#; W/O(LOCK),REAR NO.1 SEAT-BENCH SEAT,GRAY,TRIM1#
main71931-0R050-C0×2i202210-202311
W/O(LOCK),BLACK,TRIM13,2#; W/O(LOCK),BLACK,TRIM2#; W/O(LOCK),BLACK,TRIM2#,3#; W/O(LOCK),BLACK,TRIM2#,41; W/O(LOCK),PLATINUM PACKAGE&REAR NO.1 SEAT-BENCH SEAT,BLACK,TRIM2#,41; W/O(LOCK),REAR NO.1 SEAT-BENCH SEAT,BLACK,TRIM13,2#; W/O(LOCK),REAR NO.1 SEAT-BENCH SEAT,BLACK,TRIM2#; W/O(LOCK),REAR NO.1 SEAT-BENCH SEAT,BLACK,TRIM2#,41
main71931-0R050-E1×2i201912-202210
W/O(LOCK),NEUTRAL BEIGE,TRIM4#; W/O(LOCK),NEUTRAL BEIGE,TRIM40; W/O(LOCK),PLATINUM PACKAGE&REAR NO.1 SEAT-BENCH SEAT,NEUTRAL BEIGE,TRIM40; W/O(LOCK),REAR NO.1 SEAT-BENCH SEAT,NEUTRAL BEIGE,TRIM4#; W/O(LOCK),REAR NO.1 SEAT-BENCH SEAT,NEUTRAL BEIGE,TRIM40
71940AHEADREST ASSY, REAR SEAT
main71940-0E170-B0×2i202311
GRAY,TRIM1#
main71940-0E170-C0×2i201912-202210
BLACK,TRIM2#
main71940-0E340-B5×2i202311
GRAY,TRIM1#
main71940-0E340-C1×2i201912-202210
BLACK,TRIM2#
main71940-0E340-E6×2i201912-202210
NEUTRAL BEIGE,TRIM4#
main71940-0E400-A0×2i202210-202311
NEUTRAL BEIGE/IVORY,TRIM40
main71940-0E400-B0×2i202311-202410
BLACK/GRAY,TRIM2#
main71940-0E400-B1×2i202311
GRAY/GRAY,TRIM1#
main71940-0E400-C0×2i202411
MD.BROWN,TRIM42
main71940-0E400-E1×2i201912-202210
OCHER/BROWN,TRIM41
main71940-0E400-B3×2i202311
HYBRID SPECIAL EDITION,BLACK/ MD GRAY,TRIM2#
main71940-0E400-E2×2i202210-202311
HYBRID SPECIAL EDITION,GRAY/OCHER,TRIM1#
main71940-0E550-D0×2i202311-202410
SEAT COVER MATERIAL-LEATHER(XSE),RED/RED,TRIM3#
72054CLEVER SUB-ASSY, RECLINING REMOTE CONTROL, LH
main72054-0E030-B0i202311
GRAY,TRIM1#
main72054-0E030-C0i202311
BLACK,TRIM2#; BLACK,TRIM2#,3#; BLACK,TRIM2#,41,42
main72054-0E030-E0i202311
NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM40
72058DLEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH NO.1
main72058-0E070-B0i202210-202311
GRAY,TRIM1#; GRAY,TRIM10
main72058-0E070-C0i202210-202311
BLACK,TRIM13,2#; BLACK,TRIM2#; BLACK,TRIM2#,3#; BLACK,TRIM2#,41
main72058-0E070-E0i201912-202210
NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM40
72058ELEVER SUB-ASSY, REAR SEAT LOCK CONTROL, RH NO.2
main72058-0E080-B0i201912-202009
GRAY,TRIM1#
main72058-0E080-C0i201912-202009
BLACK,TRIM2#; BLACK,TRIM2#,41
main72058-0E080-E0i201912-202009
NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM40
main72058-0E081-B0i202010-202110
GRAY,TRIM1#; GRAY,TRIM10
main72058-0E081-C0i202010-202110
BLACK,TRIM13,2#; BLACK,TRIM2#; BLACK,TRIM2#,3#; BLACK,TRIM2#,41
main72058-0E081-E0i202010-202110
NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM40
main72058-0E082-B0i202110-202210
GRAY,TRIM1#; GRAY,TRIM10
main72058-0E082-C0i202110-202210
BLACK,TRIM13,2#; BLACK,TRIM2#; BLACK,TRIM2#,3#; BLACK,TRIM2#,41
main72058-0E082-E0i202311
NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM40
72124CCOVER, SEAT TRACK BRACKET, OUTER FRONT LH
main72124-0E120i201912-202210
72128GCOVER, SEAT TRACK BRACKET, INNER FRONT LH
main72128-0E130i202311-202410
main72128-0E140i202002-202210
72134ABRACKET, FRONT INNER SEAT TRACK UPPER RAIL, LH
main72134-0E020i202311
72137WCLIP (FOR SEAT TRACK COVER LH)
main67773-07020×6i202311-202410
72138MCOVER, SEAT TRACK BRACKET, OUTER REAR LH
main72138-0E150i201912-202210
72158BCOVER, SEAT TRACK BRACKET, INNER LH
main72158-0E140i201912-202210
72170DTRACK ASSY, REAR SEAT, OUTER LH
main72170-0E110i201912-202210
72190TRACK ASSY, REAR SEAT INNER, LH
main72190-0E100i202311-202410
main72190-0E110i202210-202311
72210HCABLE ASSY, REAR NO.1 SEAT TRACK CONTROL, LH
main72210-0E080i202311-202410
72308LINK SUB-ASSY, RECLINING CONTROL, LH
main72308-0E090i201912-202210
72308CLINK SUB-ASSY, RECLINING CONTROL, LH NO.1
main72308-0E070i202210-202311
72308DLINK SUB-ASSY, RECLINING CONTROL, LH NO.2
main72308-0E080i202210-202311
72526EHANDLE, RECLINING ADJUSTER RELEASE, LH
main72526-0E060-B0i202002-202110
GRAY,TRIM10
main72526-0E060-C0i201912-202110
BLACK,TRIM2#; BLACK,TRIM2#,41
main72526-0E060-E0i201912-202110
NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM40
main72526-0E061-B0i202210-202311
GRAY,TRIM1#; GRAY,TRIM10
main72526-0E061-C0i202110-202210
BLACK,TRIM13,2#; BLACK,TRIM2#; BLACK,TRIM2#,3#; BLACK,TRIM2#,41
main72526-0E061-E0i202210-202311
NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM40
72552ACOVER, RECLINING HINGE, LH
main72552-0E020-B0i201912-202210
GRAY,TRIM1#
main72552-0E020-C0i202311
BLACK,TRIM2#; BLACK,TRIM2#,3#; BLACK,TRIM2#,41,42
main72552-0E020-E0i201912-202210
NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM40
72598CBEZEL, RECLINING REMOTE CONTROL, LH
main72598-0E060i202311
72616ACOVER, REAR SEATBACK LOCK STRIKER, LH
main72615-0E130-B0i202002-202210
GRAY,TRIM10
main72615-0E130-C0i201912-202210
BLACK,TRIM2#; BLACK,TRIM2#,41
main72615-0E130-E0i202311
NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM40
72704ACABLE, REAR SEAT RECLINING CONTROL
main72704-0E220×2i201912-202210
72820BARMREST ASSY, SEAT, LH
main72820-0E030-B5i202311
GRAY,TRIM1#
main72820-0E030-C5i202311
BLACK,TRIM2#
main72820-0E030-E7i202311
NEUTRAL BEIGE,TRIM4#
main72820-0E050-B0i202311
GRAY/GRAY,TRIM1#
main72820-0E050-C0i202311
BLACK/GRAY,TRIM2#
main72820-0E050-D0i202210-202311
RED/GRAY,TRIM3#
main72820-0E050-E1i202311
OCHER/BROWN,TRIM41
main72820-0E050-E2i202210-202311
NEUTRAL BEIGE/IVORY,TRIM40
main72820-0E050-E4i202411
MD.BROWN/BLACK,TRIM42
main72820-0E060-B0i202311-202410
SEAT COVER MATERIAL-LEATHER(XSE),BLACK/GRAY,TRIM3#
72849BCAP, SEAT ARMREST, NO.1
main72848-0E020-B0i202411
GRAY,TRIM1#
main72848-0E020-C0i202411
BLACK,TRIM2#; BLACK,TRIM2#,41; BLACK,TRIM2#,41,42
main72848-0E020-E0i202411
NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM40
main72848-28030-C3i202210-202311
BLACK,TRIM13,2#; BLACK,TRIM2#; BLACK,TRIM2#,3#; BLACK,TRIM2#,41
main72848-28030-L1i202311-202410
NEUTRAL BEIGE,TRIM4#; NEUTRAL BEIGE,TRIM40
main72848-28030-P0i202311-202410
GRAY,TRIM1#
72928COVER, REAR SEAT CUSHION UNDER, LH
main72928-0E010i202210-202311
72997COVER, REAR SEATBACK, LH
main72996-0E150-C0i201912-202110
BLACK,TRIM2#; BLACK,TRIM2#,4#
79102FRAME SUB-ASSY, NO.1 SEAT CUSHION, LH
main79102-0E100i202210-202311
main79102-0E180i202311
8202WIRING & CLAMP
→ Go to FIG 82-02
82712CLAMP, WIRING HARNESS
main82711-22270×4i202210-202311
87501FCONTROL SUB-ASSY, SEAT HEATER, LH
main87501-0R030i201912-202110
PLATINUM PACKAGE&REAR NO.1 SEAT-BENCH SEAT
87510QHEATER ASSY, SEAT
main87510-0E240i201912-202210
PLATINUM PACKAGE; PLATINUM PACKAGE&REAR NO.1 SEAT-BENCH SEAT
87510SHEATER ASSY, SEAT
main87530-0E200i201912-202210
PLATINUM PACKAGE; PLATINUM PACKAGE&REAR NO.1 SEAT-BENCH SEAT
7270268020BRACKET SUB-ASSY, REAR SEATBACK STRIKER
main72702-68020
9008016099
main90080-16099
9008416010
main90084-16010
9011910886
main90119-10886
90119A0384
main90119-A0384
9016840093
main90168-40093
90178A0037
main90178-A0037
9017908053
main90179-08053
9046709232
main90467-09232
9046710167
main90467-10167
9155201225
main91552-01225
9454201400
main94542-01400

62 parts on this diagram · 7 diagrams in section

REAR SEAT & SEAT TRACK — Toyota Parts Diagram with OEM Numbers & Prices | EPC Data
